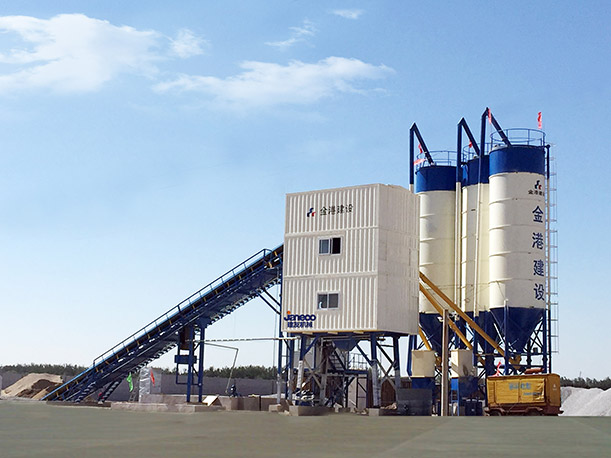

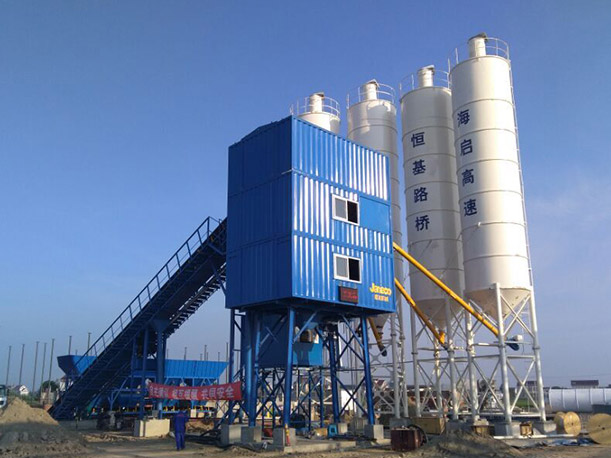

Shantui Janeoo BELT TYPE CONCRETE BATCHING PLANT
  • Shantui Janeoo BELT TYPE CONCRETE BATCHING PLANT
  • Shantui Janeoo BELT TYPE CONCRETE BATCHING PLANT
Batching Plant

Shantui Janeoo BELT TYPE CONCRETE BATCHING PLANT

  • 2x18.5~2x75kW
    Driving power
  • 1000~4500L
    Discharging capacity
View Complete Details
  • Overview
  • Specifications
Overview

The plant is composed of batching system, weighing system, mixing system, electrical control system, pneumatic control system and etc. aggregates, powders, liquid additive and water can be automatically scaled and mixed by the plant. Aggregates were loaded to aggregate bin by front loader. Powder is conveyed from silo into weighing scale by screw conveyor .Water and liquid additive are pumped to the scales. All the weighing systems are electronic scales.
The plant is fully automatic controlled by computer with production management and data printing software.
It can mix various kinds of concrete and suitable for medium size construction sites, power stations, irrigation, highways, airfields, bridges, and medium size factories producing concrete prefabricated parts.

1.Modular design, convenient assembly and disassembly, fast transfer, flexible layout.
2.Belt conveyor loading type, stable performance; Equipped with aggregate storage hopper,high productivity.
3.Powder weighing system adopt pull rod balance structure to ensure high measurement accuracy and strong anti-interference ability.
4.Container type cladding, safe and convenient assembly and disassembly, can be reused.
5. The electrical system and gas system are equipped with high-end and high reliability.

The plant is composed of batching system, weighing system, mixing system, electrical control system, pneumatic control system and etc. aggregates, powders, liquid additive and water can be automatically scaled and mixed by the plant.

Specifications
ModeSjHZS060BSjHZS090BSjHZS120BSjHZS180BSjHZS240BSjHZS270B
Theoretical productivity m³/h6090120180240270
MixerModeJS1000JS1500JS2000JS3000JS4000JS4500
Driving power(Kw)2X18.52X302X372X552X752X75
Discharging capacity(L)100015002000300040004500
Max. aggregate sizeGravel/ Pebble mm)≤60/80≤60/80≤60/80≤60/80≤60/80≤60/80
Batching binVolume m³3X123X124X204X204X304X30
Belt conveyor capacity t/h200300400600800800
Weighing range and measurement accuracyAggregate kg3X3X4X4X4X4X
(1000±2%)(1500±2%)(2000±2%)(3000±2%)(4000±2%)(4500±2%)
Cement kg500±1%800±1%1000±1%1500±1%2000±1%2500±1%
Fly ash kg200±1%300±1%400±1%600±1%800±1%900±1%
Water kg200±1%300±1%400±1%600±1%800±1%900±1%
Additive kg20±1%30±1%40±1%60±1%80±1%90±1%
Discharging height m444.24.24.24.2
Total power KW100150200250300300
