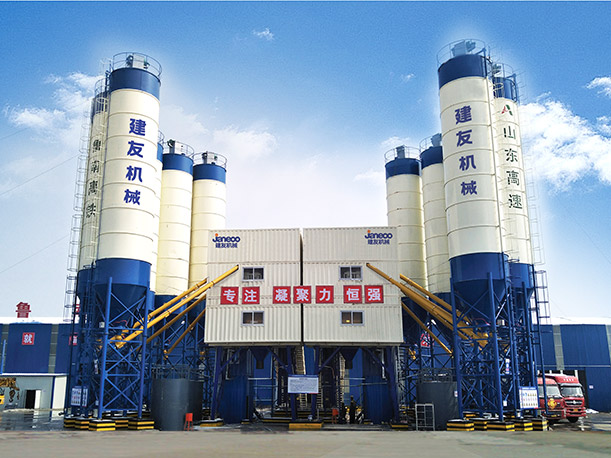

Shantui Janeoo HIGH-SPEED RAILWAY DEDICATED CONCRETE BATCHING PLANT
  • Shantui Janeoo HIGH-SPEED RAILWAY DEDICATED CONCRETE BATCHING PLANT
Batching Plant

Shantui Janeoo HIGH-SPEED RAILWAY DEDICATED CONCRETE BATCHING PLANT

  • 2x30-2x75kW
    Driving power
  • 1500~4500L
    Discharging capacity
View Complete Details
  • Overview
  • Specifications
Overview

1.Modular design, convenient to assemble and disassemble, fast transfer, flexible layout;
2.Adopting high-efficiency mixer,high production efficiency, supporting multiple types fo feeding technology, suitable for various concrete mixing needs, the lining boards and blades adopt alloy wear-resistant material, with long service life.
3.The aggregate measurement system achieves high-precision measurement of aggregate by optimizing the discharge door structure, improving the vibration form of the vibrator, and increasing the closing speed of the discharge door;
4. Powder measurement By installing a precise measurement screw in the lower part of the main spiral, a coarse and fine powder scale can be realized;
5. There is a liquid storage bag on the top of the water/additive weighing scale so that it realizes the coarse-fine measurement.
6. With Siemens industrial control computer as the platform, the production control software adopts the most advanced automatic scale compensation and deduction scale technology in China to ensure that the measurement accuracy of various raw materials meets the technical requirements of high-speed railway construction;
7. Fully-sealed arc discharging gate of the aggregate storage bin to meet the high-speed railway secondary material feeding and mixing process.

Adopting high-efficiency mixer,high production efficiency, supporting multiple types fo feeding technology, suitable for various concrete mixing needs, the lining boards and blades adopt alloy wear-resistant material, with long service life.

Specifications
ModeSjHZS090RSjHZS120RSjHZS180RSjHZS240RSjHZS270R
Theoretical productivity m³/h90120180240270
MixerModeJS1500JS2000JS3000JS4000JS4500
Driving power(Kw)2X302X372X552X752X75
Discharging capacity(L)15002000300040004500
Max. aggregate size≤60/80≤60/80≤60/80≤60/80≤60/80
Gravel/Pebble mm)
Batching binVolume m³4X124X204X204X304X30
Belt conveyor capacity t/h300400600800800
Weighing range and measurement accuracyAggregate kg4X(1500±2%)4X(2000±2%)4X(3000±2%)4X(4000±2%)4X(4500±2%)
Cement kg800±1%1000±1%1500±1%2000±1%2500±1%
Flyash kg200±1%400±1%600±1%800±1%900±1%
Ore powder kg200±1%300±1%400±1%500±1%600±1%
Water kg300±1%400±1%600±1%800±1%900±1%
Additive kg30±1%40±1%60±1%80±1%90±1%
Discharging height m4.24.24.24.24.2
Total power150200250300300
