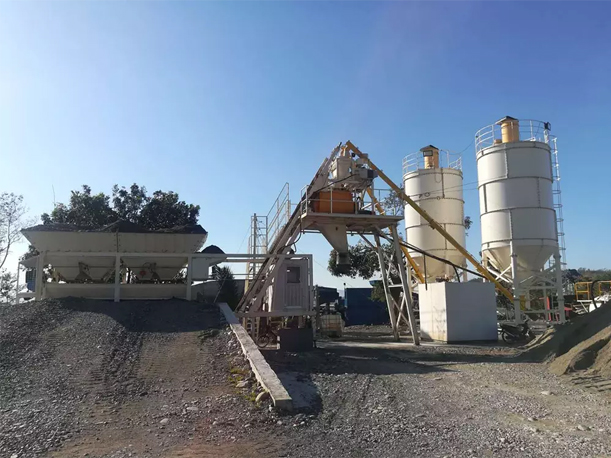

Shantui Janeoo LIFTING BUCKET MOBILE STATION
  • Shantui Janeoo LIFTING BUCKET MOBILE STATION
Batching Plant

Shantui Janeoo LIFTING BUCKET MOBILE STATION

  • 18.5-2X30
    Driving power
  • 500-1500
    Discharging capacity
View Complete Details
  • Overview
  • Specifications
Overview

1.Convenient assembly and disassembly, high mobility of transition, convenient and fast, and perfect work site adaptability.
2.Compact and reasonable structure, high modularity design;
3.The operation is clear and the performance is stable.
4.Less land occupation, high productivity;
5.The electrical system and gas system are equipped with high-end and high reliability.

Convenient assembly and disassembly, high mobility of transition, convenient and fast, and perfect work site adaptability.

Specifications
ModeSjHZS025YSjHZS040YSjHZS050YSjHZS075Y
Theorectical productivity m³/h25405075
MixerModeJS500JS750JS1000JS1500
Driving power(kW)18.5302X18.52X30
Discharging capacity(L)50075010001500
Max.aggregate size( Gravel/ Pebble mm)≤60/80≤60/80≤60/80≤60/80
Batching binVolume m³4X44X44X44X4
Hoist motor power(kW)5.57.518.522
Weighing range and measurement accuracyAggregate kg1500±2%1500±2%2000±2%3000±2%
Cement kg300±1%400±1%500±1%800±1%
Water kg150±1%200±1%200±1%300±1%
Additive kg20±1%20±1%20±1%30±1%
Discharging height m3.83.84.14.1
Total power m404974101
