Home  >  Concrete Machinery  >  Batching Plant  >  Shantui Janeoo Batching Plant  >  Shantui Janeoo MOBILE CONCRETE BATCHING PLANT

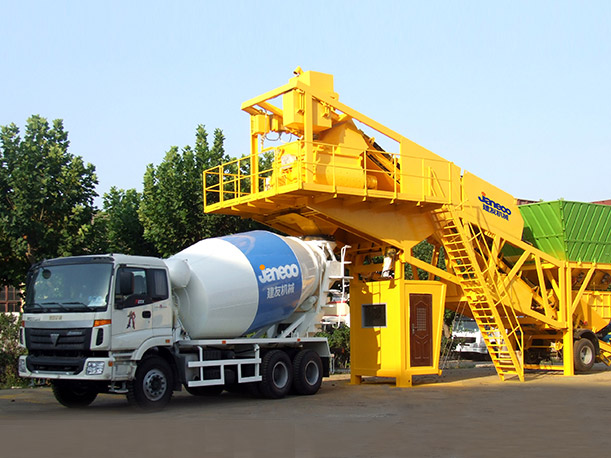

Shantui Janeoo MOBILE CONCRETE BATCHING PLANT
  • Shantui Janeoo MOBILE CONCRETE BATCHING PLANT
  • Shantui Janeoo MOBILE CONCRETE BATCHING PLANT
Batching Plant

Shantui Janeoo MOBILE CONCRETE BATCHING PLANT

  • 2X18.5~2x30kW
    Driving power
  • 1000~1500L
    Discharging capacity
View Complete Details
  • Overview
  • Specifications
Overview

1.Convenient assembly and disassembly, high mobility of transition, convenient and fast, and perfect work site adaptability.
2.Compact and reasonable structure, high modularity design;
3.The operation is clear and the performance is stable.
4.Less land occupation, high productivity;
5.The electrical system and gas system are equipped with high-end and high reliability.
The mobile concrete mixing plant is a concrete production equipment that integrates the material storage, weighing, transportation, mixing, unloading and automatic control system of the concrete mixing plant with a trailer unit;
The mobile concrete mixing plant is the same as all the operation processes, operation methods and maintenance of the fixed automatic concrete mixing plant; At the same time, it has unique characteristics of flexible movement, quick and easy disassembly and assembly, and simple storage management;
it is the best optimized machine for mobile construction of public railways, bridges, ports, hydropower and other projects.

Convenient assembly and disassembly, high mobility of transition, convenient and fast, and perfect work site adaptability.

Specifications
ModeSjHZS050YSjHZS075Y
Theoretical productivity m³/h5075
MixerModeJS1000JS1500
Driving power(Kw)2X18.52X30
Discharging capacity(L)10001500
Max. aggregate size( Gravel/ Pebble mm)≤60/80≤60/80
Batching binVolume m³4X84X8
Belt conveyor capacity t/h300300
Weighing range and measurement accuracyAggregate kg2000±2%3000±2%
Cement kg500±1%800±1%
Water kg200±1%300±1%
Additive kg20±1%30±1%
Discharging height m44
Total power kw6894
