model number | MCX1000 | MCX1500 | MCX2000 | MCX3000 |
Feeding capacity(L) | 1500 | 2250 | 3000 | 4500 |
Output capacity(L) | 1000 | 1500 | 2000 | 3000 |
number of planets | 2 | 2 | 3 | 3 |
Main motor power(KW) | 2×22 | 2×30 | 3×30 | 3×37 |
Motor power(KW) | 3 | 3 | 3×2 | 3×2 |
Weight(t) | 5.3 | 6.2 | 8.2 | 1.300 |

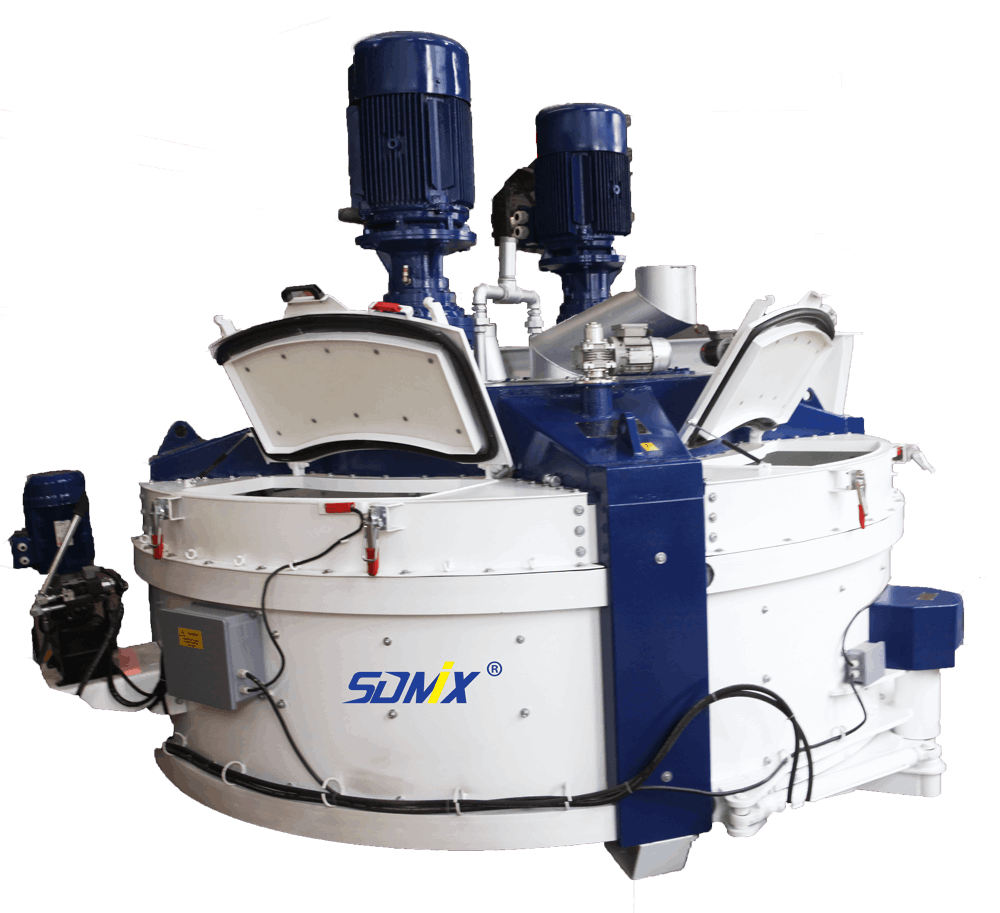

It is suitable for high-speed rail special prefabricated structural parts, pc prefabricated parts and civil engineering construction sites. The newly developed multi-motor vertical shaft mixer is suitable for high-speed rail special prefabricated structural parts, pipe piles, sleepers, tiles and other manufacturing enterprises, as well as various civil engineering construction sites and commercial concrete mixing stations.

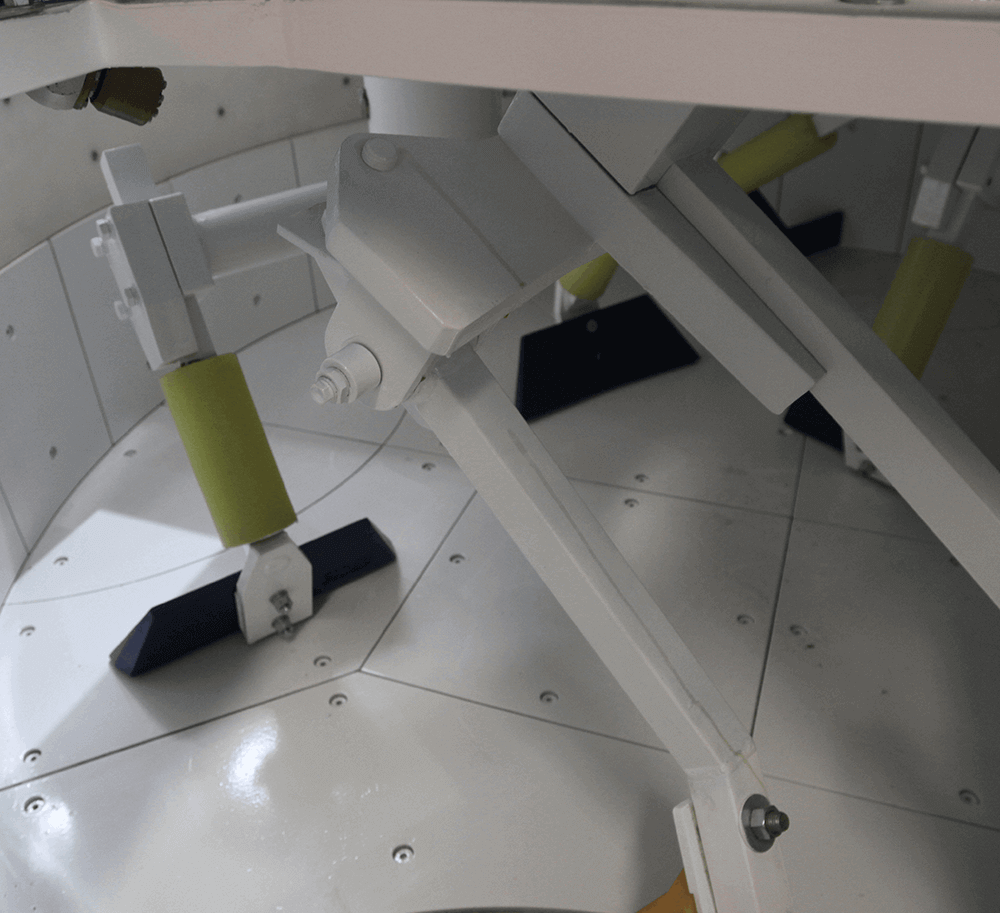

1. High efficiency: Planetary blades rotate at the same time, and the stirring speed is 30% faster than that of ordinary vertical axis planetary mixers.
2. High wear resistance: the stirring blade adopts ultra-high chromium wear-resistant alloy cast iron, and the begging plate is made of high chromium wear-resistant alloy cast iron, with good wear resistance and long service life.
3. Easy to transport: The mixing cylinder adopts a split structure, which reduces the transportation size. All specifications can be transported through standard containers.
4. Easy to maintain: The upper part of the mixing cylinder body and the inspection door are equipped with polyethylene lining boards, which can effectively prevent mortar from adhesion and facilitate cleaning.
5. Smarter:
(1) Coagulant humidity detection sensors and metres can be installed to facilitate the detection of concrete consistency;
(2) A rotating high-pressure nozzle with a self-protection system and automatic opening can be installed without dead angles, so that all tanks can be thoroughly cleaned.
model number | MCX1000 | MCX1500 | MCX2000 | MCX3000 |
Feeding capacity(L) | 1500 | 2250 | 3000 | 4500 |
Output capacity(L) | 1000 | 1500 | 2000 | 3000 |
number of planets | 2 | 2 | 3 | 3 |
Main motor power(KW) | 2×22 | 2×30 | 3×30 | 3×37 |
Motor power(KW) | 3 | 3 | 3×2 | 3×2 |
Weight(t) | 5.3 | 6.2 | 8.2 | 1.300 |
