Shantui Janeoo SJGJD060-3GSTEPPED TYPE DRY MORTAR BATCHING PLANT
  • Shantui Janeoo SJGJD060-3GSTEPPED TYPE DRY MORTAR BATCHING PLANT
Dry Mortar Production

Shantui Janeoo SJGJD060-3GSTEPPED TYPE DRY MORTAR BATCHING PLANT

  • 60t/h
    Theoretical productivity
  • 330kW
    Total power
View Complete Details
  • Overview
  • Specifications
Overview

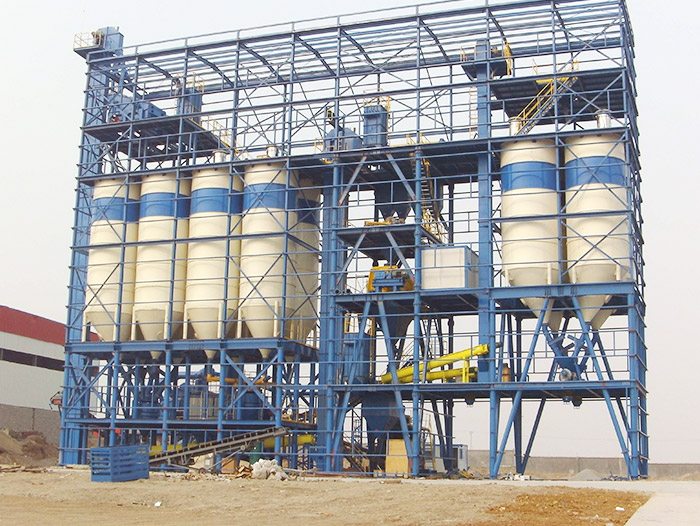

SjGJD060-3G stepped-type dry mortar batching equipment adopts stepped-type structure, which has the characteristics of large productivity, stability and reliability, and can be used for mixing ordinary dry mortar and special dry mortar.The supporting host machine adopts SJGD4500-5B single horizontal shaft plow-type mixer, which has the characteristics of high mixing efficiency and high mixing uniformity, and the mixing ratio can reach 1:10000.

SjGJD060-3G stepped-type dry mortar batching equipment adopts stepped-type structure, which has the characteristics of large productivity, stability and reliability, and can be used for mixing ordinary dry mortar and special dry mortar.

Specifications
SJGJD060-3GSTEPPED TYPE DRY MORTAR BATCHING PLANT
Theoretical productivity60t/h
MixerSjGD4500-5B
aggregates measuring accuracy±2%
Cement measuring accuracy±1%
additive measuring accuracy±0.5%
Sand silo volume4X90m³
Cement silo volume4X90m³
Additive silo volume4X2m³
Packing capacity200-300bags/h/set
Total power330kW
