Shantui Janeoo SJGTD060-3G TOWER TYPE DRY MORTAR BATCHING PLANT
  • Shantui Janeoo SJGTD060-3G TOWER TYPE DRY MORTAR BATCHING PLANT
Dry Mortar Production

Shantui Janeoo SJGTD060-3G TOWER TYPE DRY MORTAR BATCHING PLANT

  • 60-80t/h
    Theoretical productivity
View Complete Details
  • Overview
  • Specifications
Overview

Sjgtd060-3g dry mortar batching equipment adopts tower structure, with large productivity, energy saving and environmental protection, stable and reliable characteristics, mainly used for mixing ordinary dry mortar.

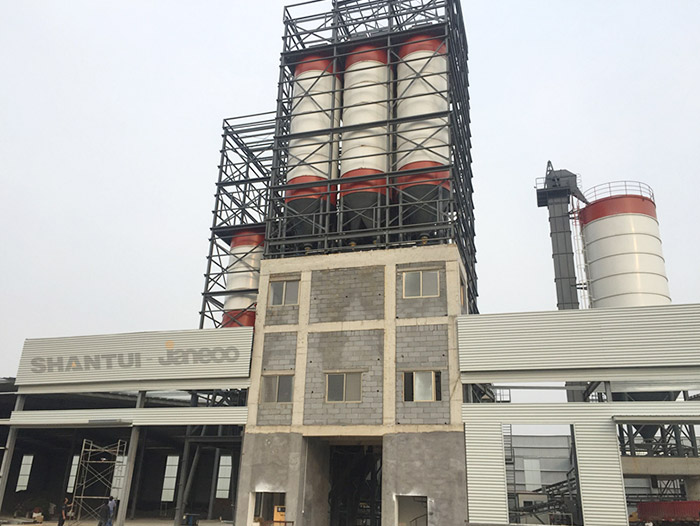

The main equipment adopts tower structure, with 4 sand silos, 4 powder silos, 4 additive silos and 4 finished product silos. Sand for ordinary wire use is lifted by bucket machine and stored in sand bin after graded screening.Powder is delivered to the powder bin by bulk tanker.The additive is lifted to the additive storehouse by the electric lifting device and put into the additive storehouse manually.

Sand adopts sliding pipe batching, powder material, additives adopt spiral conveyor batching.

The measuring bucket adopts electronic scale to measure, which has high measuring precision and small error.

The control system adopts manual and automatic control.The system has perfect self-locking and inter-locking functions to ensure accurate and reliable operation of the system, and has common fault detection and alarm functions.


Sjgtd060-3g dry mortar batching equipment adopts tower structure, with large productivity, energy saving and environmental protection, stable and reliable characteristics, mainly used for mixing ordinary dry mortar.

Specifications
SJGTD060-3G TOWER TYPE DRY MORTAR BATCHING PLANT
Theoretical productivity 60-80t/h
Mixer SjGD4500-5B
aggregates measuring accuracy±2%
Cement measuring accuracy ±1%
additive measuring accuracy ±0.5%
Sand silo volume 4X50m³
Cement silo volume 2X85m³ +2X42m³
Cement silo volume 2X85m³ +2X42m³
Packing capacity200-300bags/h/set
