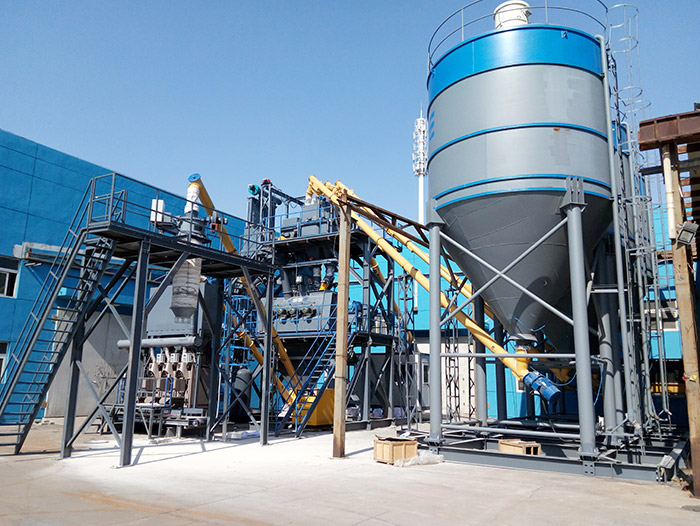

SjGZD060-3G station type dry mortar mixing equipment is a kind of equipment designed and developed by our company according to the similar products abroad and combined with the actual situation in China.It is suitable for mixing ordinary dry mortar and special dry mortar.
The main equipment adopts station structure, including 1 sand bin (72m3/ piece), 3 powder bin (72m3/ piece), and 2 additive bin (0.5m3/ piece).The sand is lifted by a bucket machine, the powder is transported to the powder silo by a bulk tank truck, and the two additives are lifted to the additive silo layer by an electric lifting device and put into the additive silo manually.Sand, powder, additives using screw conveyor batching, measuring bucket using electronic scale measurement, measurement accuracy is high, small error.The control system adopts manual and automatic control.The system has perfect self-locking and inter-locking functions to ensure accurate and reliable operation of the system, and has common fault detection and alarm functions.
SjGZD060-3G station type dry mortar mixing equipment is a kind of equipment designed and developed by our company according to the similar products abroad and combined with the actual situation in China.It is suitable for mixing ordinary dry mortar and special dry mortar.
| SJGZD060-3G STATION TYPE DRY MOTAR BATCHING PLANT | |
|---|---|
| Theoretical productivity | 60t/h |
| Mixer | SjGD4500-5B |
| Aggregates measuring accuracy | 2 |
| Cement measuring accuracy | 1% |
| Additive measuring accuracy | 0.50% |
| Sand silo volume | 72m3 |
| Cement silo volume | 72m3 |
| Additive silo volume | 0.5m3 |
| Packing capacity bags/h/set | 200-300 |
| Total power 140kW（excluding silo and screw conveyors) | |
