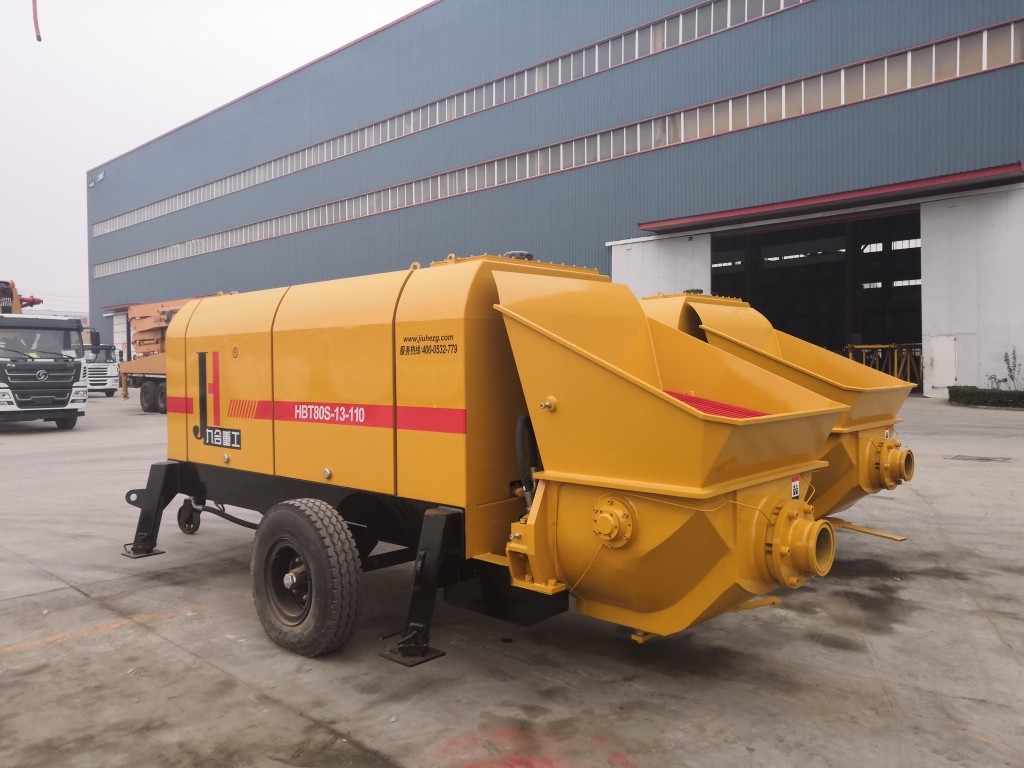

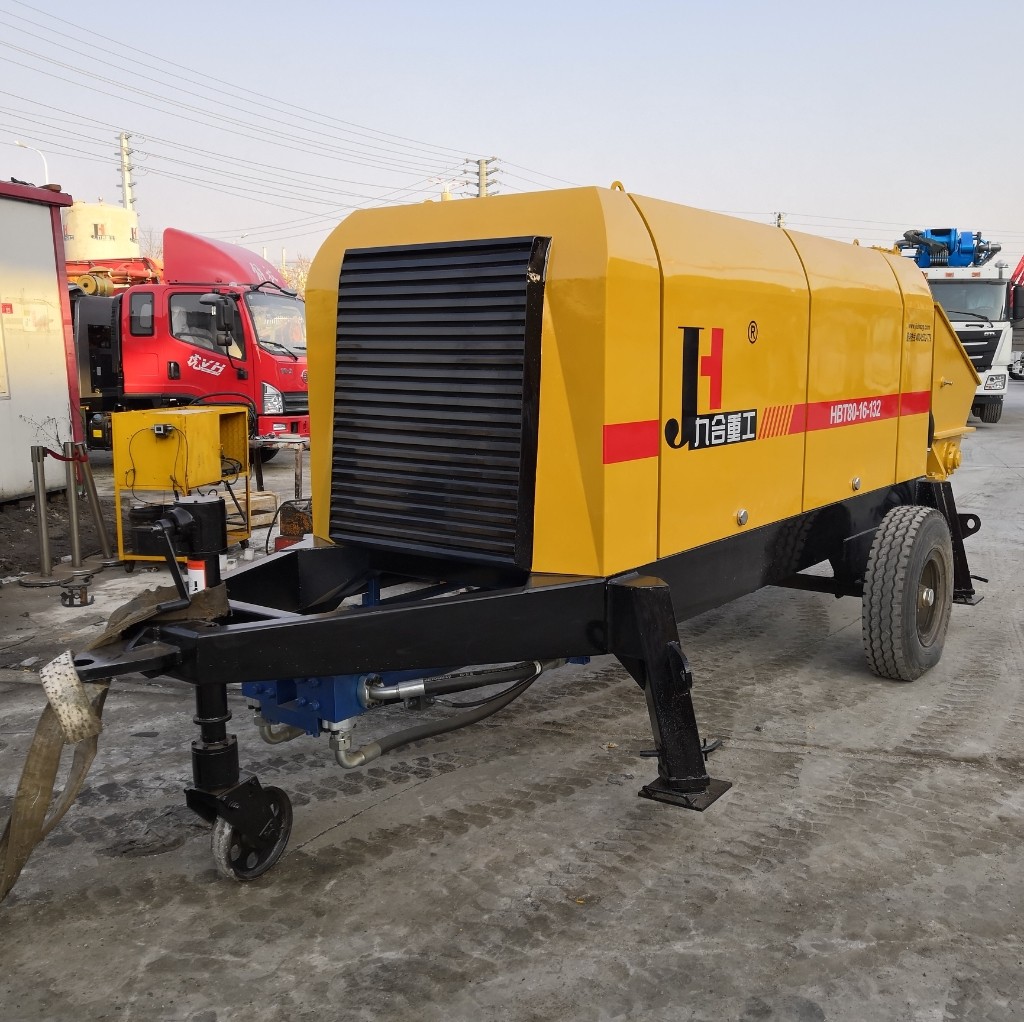

Item | Unit | HBT50-13-55 | HBT60-13-90 | HBT80-13-110 | HBT80-16-132 |
Theoretical delivery volume | m³/h | 50 | 60 | 60 | 80 |
Theoretical delivery pressure | Mpa | 13 | 13 | 13 | 16 |
Max. delivery frequency | /min | 18 | 22 | 22 | 23 |
Theoretical delivery height | m | 130 | 150 | 180 | 240 |
Theoretical delivery distance | m | 400 | 500 | 600 | 600 |
Type of distribution valve | S Valve | ||||
Specification of delivery cylinder | mm | Φ200×1200 | Φ200×1650 | Φ200×1650 | Φ200×1650 |
Specification of main oil cylinder | mm | Φ125/Φ80×1200 | Φ125/Φ80×1650 | Φ125/Φ80×1650 | Φ140/Φ90×1800 |
Oil tank capacity | L | 300 | 500 | 500 | 500 |
Hopper capacity | L | 600 | 600 | 600 | 600 |
Feeding height | mm | 1400 | 1400 | 1400 | 1400 |
Outlet diameters | mm | Φ185 | Φ185 | Φ185 | Φ185 |
Delivery pipe inner diameter | mm | Φ125 | Φ125 | Φ125 | Φ125 |
Electric Motor Power | Kw | 55 | 90 | 110 | 132 |
Rated voltage | V | 380 （Customizable） | |||
Fuel tank capacity | L | 150 | 150 | 150 | 150 |
Hydraulic oil circuit type | Open circuit | ||||
Max. oil pressure of main system | MPa | 25 | 32 | 32 | 32 |
Max. oil pressure of mixing system | MPa | 14 | 14 | 14 | 14 |
Max. mixing rotate speed | r/min | 24 | 24 | 24 | 24 |
Concrete slump | mm | 80～200 | 80～200 | 80～200 | 80～200 |
Allowable max dia. of aggregate | mm | Pebble 50，crushed stone 40 | |||
Dimension（length×width× height） | mm | 5270×1860×2580 | 6600×1930×2190 | 6600×1930×2190 | 6600×1930×2190 |
Weight | Kg | 4000 | 6300 | 6500 | 6800 |
Pull speed | Km/h | ≤8 | ≤8 | ≤8 | ≤8 |
