Dahan SC200/200 gear drive 3-dive elevator
  • Dahan SC200/200 gear drive 3-dive elevator
  • Dahan SC200/200 gear drive 3-dive elevator
  • Dahan SC200/200 gear drive 3-dive elevator
Construction Elevator

Dahan SC200/200 gear drive 3-dive elevator

View Complete Details
  • Overview
  • Specifications
Overview

Dahan construction elevator ranks among top 3 in terms of production and sales volume in China, with the highest price-performance ratio. Product range covers 2-wheel drive, 3-wheel drive, and variable frequency products. The new 3-wheel drive features more energy-saving and fuel consumption with the same configuration.

1. Dahan construction elevator ranks among top 3 in terms of production and sales volume in China, with the highest price-performance ratio. Product range covers 2-wheel drive, 3-wheel drive, and variable frequency products. The new 3-wheel drive features more energy-saving and fuel consumption with the same configuration.

2. Dahan will purchase 200,000 ton raw materials from famous plants each year, which guarantees the product quality and favorable prices.

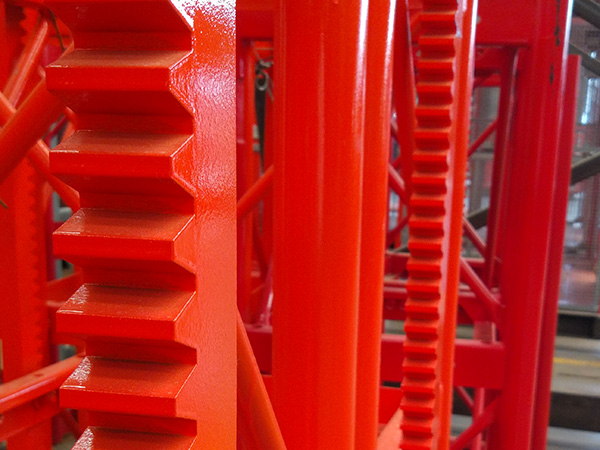

3. Dahan has the sole CNC cutting, stamping, and automatic robot welding line for standard section production in China. The main limb of the standard section adopts φ76×6 Q345B high frequency welding steel pipes, featuring high strength, good wear resistance, high straightness. The horizontal brace of the standard section adopts Q345B steel plate stamping and bending technology, which enables higher bearing capacity and straightness of the rack, higher product performance and longer service life.


Specifications
NoItemsUnitParametersRemarks
1

Rated load

2×2000Double cage
2

Rated load of installation/dismantle

2×1000Double cage
3

Rated lifting speed

m/min33Drive ratio of reducer 1:16
4

Max. Lifting height

m200
5

Cage size (LxWxH)

m×m×m3(3.2)×1.5×2.4
6Cage bottom heightm0.46
7

Wall clearance of framework

m≤9m
8

Height of guide rail overhang

m≤7.5m
9

Voltage

V380V±5%
10

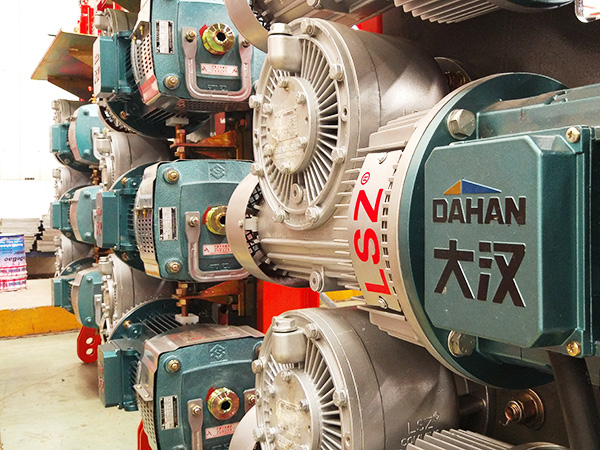

Motor power

kW2×3×8.5JC=25%
11

Rated operating current

A2×3×20
12

Weight of standard section

150(166)650mm×650mm×1508
13Weight of single cage (incl. drive system)2080
14Machine weightt30.3H=200m
15

Safety device model

SAJ40-1.2A
