Dahan SC200/200 worm gear 3-drive variable frequency elevator
  • Dahan SC200/200 worm gear 3-drive variable frequency elevator
  • Dahan SC200/200 worm gear 3-drive variable frequency elevator
  • Dahan SC200/200 worm gear 3-drive variable frequency elevator
Construction Elevator

Dahan SC200/200 worm gear 3-drive variable frequency elevator

View Complete Details
  • Overview
  • Specifications
Overview

Dahan construction elevator ranks among top 3 in terms of production and sales volume in China, with the highest price-performance ratio. Product range covers 2-wheel drive, 3-wheel drive, and variable frequency products. The new 3-wheel drive features more energy-saving and fuel consumption with the same configuration.

1. Dahan construction elevator ranks among top 3 in terms of production and sales volume in China, with the highest price-performance ratio. Product range covers 2-wheel drive, 3-wheel drive, and variable frequency products. The new 3-wheel drive features more energy-saving and fuel consumption with the same configuration.

2. Dahan will purchase 200,000 ton raw materials from famous plants each year, which guarantees the product quality and favorable prices.

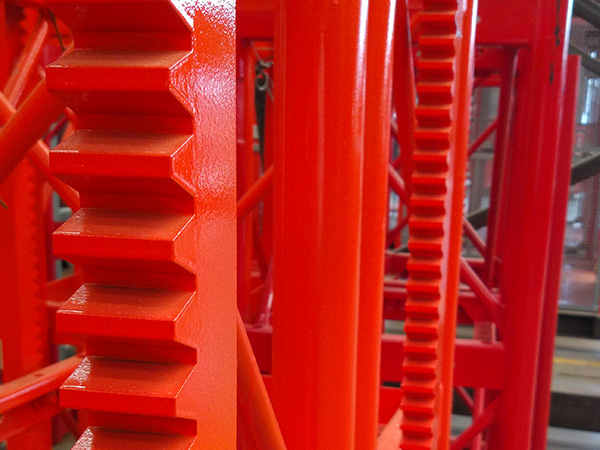

3. Dahan has the sole CNC cutting, stamping, and automatic robot welding line for standard section production in China. The main limb of the standard section adopts φ76×6 Q345B high frequency welding steel pipes, featuring high strength, good wear resistance, high straightness. The horizontal brace of the standard section adopts Q345B steel plate stamping and bending technology, which enables higher bearing capacity and straightness of the rack, higher product performance and longer service life.


Specifications
NoItemsUnitParametersRemarks
1Rated load2×2000Double cage
2Rated load of installation/dismantle2×1000Double cage
3Rated lifting speedm/min0~40Drive ratio of reducer1:16
4Max. Lifting heightm200
5Cage size (LxWxH)m×m×m3(3.2)×1.5×2.4
6Cage bottom heightm0.46
7Wall clearance of frameworkm≤9m
8Height of guide rail overhangm≤9m
9VoltageV380V±5%

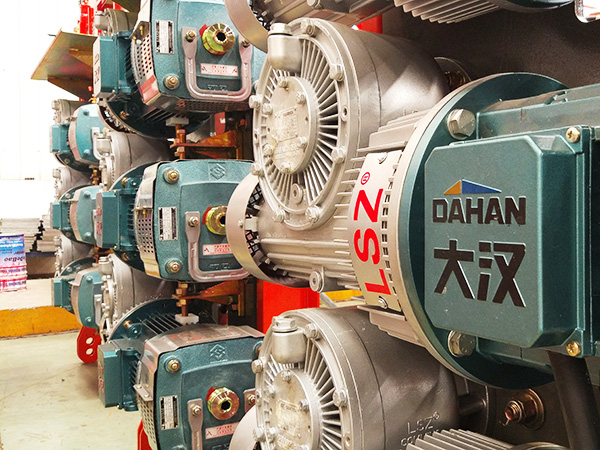

10Motor powerkW2×3×11JC=25%
11Frequency converterkW37
12Rated operating currentA2×3×24
13Weight of standard section150(166)650mm×650mm×1508
14Weight of single cage (incl. drive system)2080
15Machine weightt30.3H=200m
16Safety device modelSAJ40-1.2A
