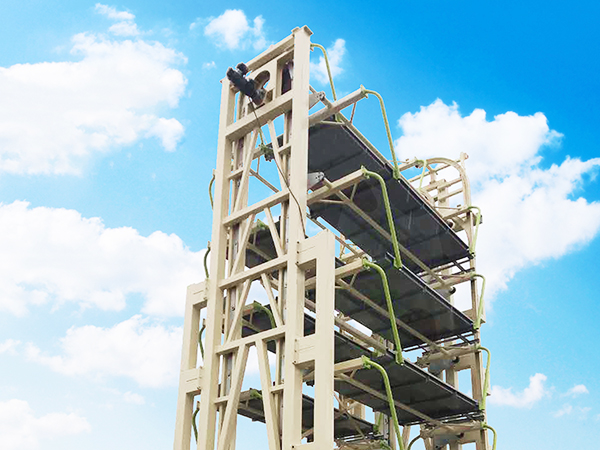

PCX vertical circulation parking equipment uses professional motor to drive the transmission mechanism. Car carriers are mounted on the chains and circulates with the chains to achieve the purpose of parking and retrieval of cars.
Working Principle:
PCX vertical circulation parking equipment uses professional motor to drive the transmission mechanism. Car carriers are mounted on the chains and circulates with the chains to achieve the purpose of parking and retrieval of cars.
Product Features:
Small land coverage, large volume, 8~20 cars can be parked in two parking width. It adopts non-standard special chain transmission mechanism, which minimizes the vibration and noise. The PLC control is flexible and convenient with button or intelligent card operation. With modular parts, the installation and dismantle is quick and convenient and it is also easy to repair. Stable mechanical performance, smooth operation, and reliable brake. Complete inspection devices ensure high safety. Cars can be parked and drove away without turning around, which is very efficient and convenient.

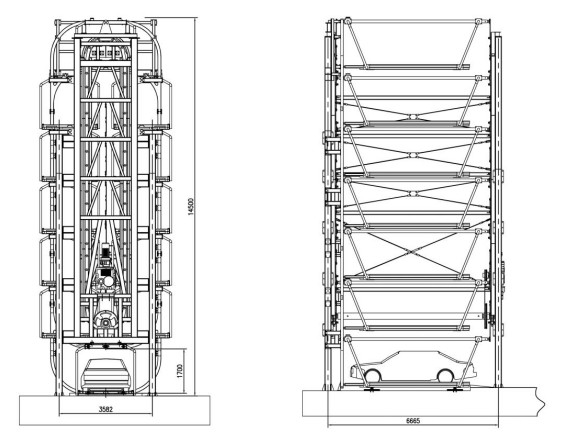

Perspective drawing
| Applicable Cars | Type of cars | Extra-large cars（D） | Medium-sized cars（Z） |
|---|---|---|---|
| Car size（mm） | L×W×H 5000×1850×1550 | L×W×H 4700×1800×1450 | |
| Car weight（kg） | ≦2000 | ≦1700 | |
| Drive mode | Electrical motor steel wire drive | ||
| Electric motor | Elevating motor 11kw | ||
| Speed | Elevating 6M/min | ||
| Operation method | Button control/intelligent card | ||
| Control mode | PLC automatic control | ||
| Power supply | 3-phase 5-wire 380V | ||
