LGMG H625E(H625E)
  • LGMG H625E(H625E)
  • LGMG H625E(H625E)
Telehandler

LGMG H625E(H625E)

  • 5.94m(19'6'')
    Work Height Max.
  • 2500kg(5512lbs)
    Platform Capacity
  • 1.86m(6'1'')
    Machine Width
View Complete Details
  • Overview
  • Specifications
Overview

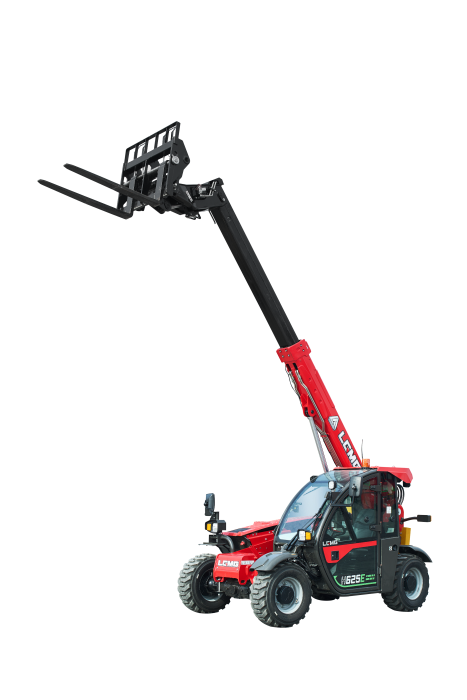

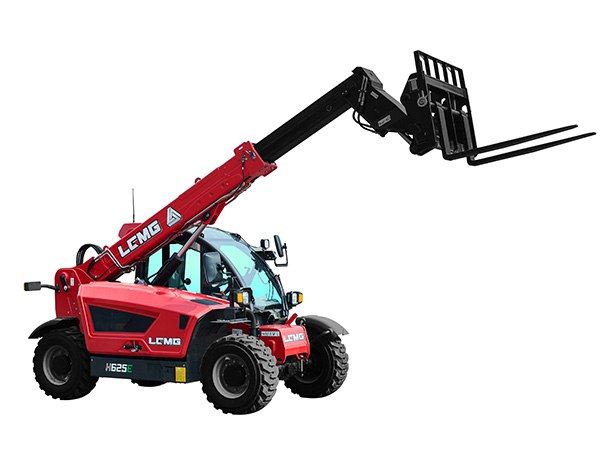

H625E is LGMG’s first electric telehandler with a capacity of 2500kg and a maximum lifting height of 5.94 meters.



Powered by an interchangeable 80V Lithium-Ion battery and is equipped with a PMSM lifting motor to control hydraulic functions.



With three distinct steering modes, it can be tailored to suit the requirements of operations in confined spaces.



The H625E prioritizes driver safety through the utilization of a FOPS&ROPS cab. Furthermore, it offers extensive adaptability, accommodating a wide range of attachments for tasks such as forklifting, lifting, loading, grabbing, clamping, manned operations, and more. This versatility transforms it into a true multi-purpose machine.


Specifications
ModelsH625E
MeasurementsMetricImperial
A-Max. Lifting Height5.94m19'6''
Max. Outreach3.41m11'2''
B-Overall Lenth3.99m13'1"
C-Overall Width 1.86m6'1"
D-Overall Height1.97m6'6''
E-Wheelbase2.3m7'7''
Ground Clearance0.32m1'1''
Productivity
Max. Capacity2500 kg5512 lbs
Gradebility-Unladen35%
Min.Turning Radius3.36 m11'
Tilt Angle±5°
Drive/Steering Mode4 Wheel Drive / 4 Wheel Steer
Primary Boom Ascending Time12+0.5 s
Primary Boom Descending Time8.5+0.5 s
Boom Extending Time8.5+0.5 s
Boom Retracting Time6.5+0.5 s
Travel Speed16 km/h10 mph
Service BrakeMulti-disc Wet Brake of Front Axle
Standard Tyres12-16.5 12PR
Power
Battery TechnologyLithium Battery
Battery Nominal Voltage76.8V
Battery Capacity304Ah
Hydraulic Motor Power14kW
Drive Motor Power                                 12.3kW
12V Battery Capacity                                 120Ah
Hydraulic System
Working Pump Displacement56 l/min
Hydraulic Oil Capacity            65L           17.2 gal
Weight
Machine Weight4950 kg10913 lbs
