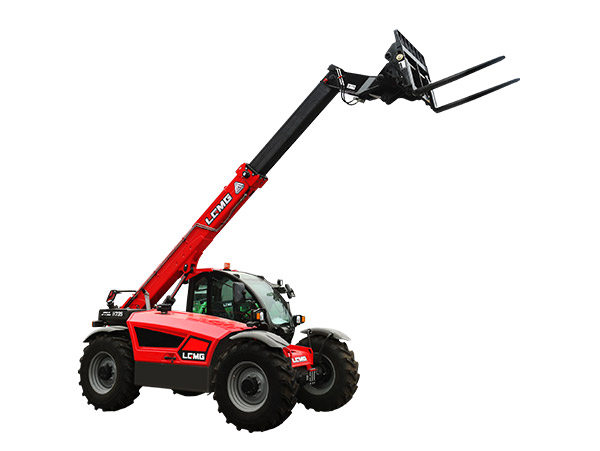

LGMG H735(H735)
  • LGMG H735(H735)
Telehandler

LGMG H735(H735)

  • 7m(23')
    Work Height Max.
  • 3500kg(7716lbs)
    Platform Capacity
  • 2.34m(7'8'')
    Machine Width
View Complete Details
  • Overview
  • Specifications
Overview

The LGMG H735 is a telehandler with a capacity of 3500kg and a maximum lifting height of 7 meters.



It incorporates hydrostatic transmission, a two-speed transfer case, robust power, and exceptional transmission efficiency. With three distinct steering modes, it can be tailored to suit the requirements of operations in confined spaces.



The H735 prioritizes driver safety through the utilization of a FOPS&ROPS cab. Furthermore, it offers extensive adaptability, accommodating a wide range of attachments for tasks such as forklifting, lifting, loading, grabbing, clamping, manned operations, and more. This versatility transforms it into a true multi-purpose machine.


Specifications
ModelsH735
MeasurementsMetricImperial
A-Max. Lifting Height7 m23'
Max. Outreach3.9 m12'10''
B-Overall Lenth4.99 m16'4''
C-Overall Width 2.34 m7'8''
D-Overall Height2.3 m7'7''
E-Wheelbase2.85 m9'4''
F-Wheel Track1.93 m6'4''
Ground Clearance0.45 m1'6''
Productivity
Max. Capacity3500 kg7716 lbs
Gradebility-Unladen45%
Min.Turning Radius3.9 m12'10''
Tilt Angle±5°
Drive/Steering Mode4 Wheel Driving/4 Wheel Steer
Primary Boom Ascending Time7.51 s
Primary Boom Descending Time5.57 s
Boom Extending Time6.93 s
Boom retracting Time5.32 s
Forward-First Gear Travel Speed9 km/h5.6mph
Forward-Second Gear Travel Speed27 km/h16.8mph
Backward-First Gear Travel Speed9 km/h5.6mph
Backward-Second Gear Travel Speed27 km/h16.8mph
Max. Braking Distance-Unladen≤ 3 m (27 km/h)≤9'11''(16.8mph)
Standard Tires400/80 R24
Power
ManufacturerKubota (Euro V engine)
Rated Power54.6 kW73.2 hp
Max. Power54.6 kW73.2 hp
Max. Torque289.3 N.m213.4 lb.ft
Displacement3331 ml203 cu.in
Tank Capacity
Hydraulic Oil Capacity100 L26.4 gal
Fuel Tank Capacity100 L26.4 gal
Weight
Machine Weight7000 kg15432 lbs
