Zoomlion ZTH2506
  • Zoomlion ZTH2506
Telehandler

Zoomlion ZTH2506

  • 4.01m|13ft 2in
    A Overall length
  • 1.83m|6ft
    B Overall width
  • 1.95m|6ft 5in
    C Overall height
View Complete Details
  • Overview
  • Specifications
Overview

Zoomlion telehandler highlights safety and intelligence, featuring stable boom extension, excellent off-road ability and great gradeability.

CE Certified







Strong power chassis with excellent driving performance and off-road capacity

4×4 drive system, front and rear driving axle with antislip differential gear for great traction force and escape ability

Hydraulic cylinder driven extension system for smooth movement, strong capacity and large work envolope

10.1-inch display screen integrates monitoring, control and entertainment, with a good human-computer interaction experience

Standard floating fork and optional platform, bucket, boom and other attachments meet the diverse needs of customers



Specifications

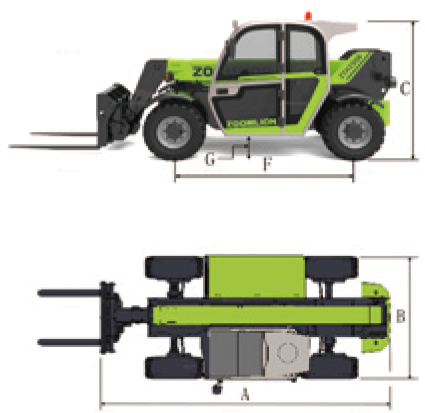

A Overall length 4.01m|13ft 2in
B Overall width 1.83m|6ft
C Overall height 1.95m|6ft 5in
F Wheelbase 2.35m|7ft 8in
G Min ground clearance 0.3m|1ft

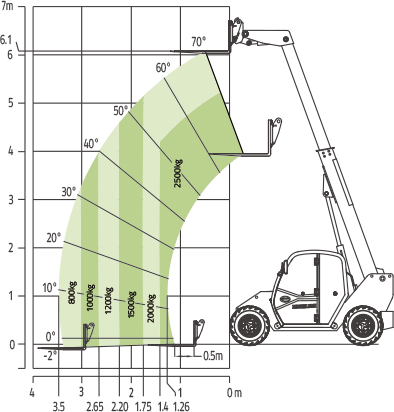

Max lift height 6.1m|20ft
Rated capacity 2500kg|5510lb
Lift capacity at max height 2000kg|4410lb
Max forward reach 3.5m|11ft 6in
Lift capacity at max reach 800kg|1760lb
Weight 5000kg|11010lb
Max traction force 73.25kN|16467lb
Frame leveling angle /|/
Turning radius - outside 3.38m|11ft 1in
Engine KUBOTA V3307-CR-TE5|KUBOTA V3307-CR-TE5
Rated power 55.4kw|74.3Hp
Max torque 265Nm|195lb*ft
Cylinder 4|4
Displacement 3310m|l0.73gal
Transmission Hydrodynamic|Hydrodynamic
Max drive speed 27km/h|17mph
Steering 2WS/4WS/Crab|2WS/4WS/Crab
Type 12.00-16.5-12PR|12.00-16.5-12PR
Implement pump Gear pump|Gear pump
Hydraulic flow - pressure 88L/min-270bar|23.3gal/min-270bar
Hydraulic tank capacity 100L|26.4gal
Fuel tank capacity 65L|17gal
Fork size 1220mm×122mm×45mm|4ft×4.8in×1.77in
Fork rotary 132°|132°
Boom up/down 7.9/5.2s|7.9/5.2s
Boom extend/retract 5.7/4.5s|5.7/4.5s
Fork lift 3.5s|3.5s
Fork retract 3.5s|3.5s
