Zoomlion ZTH3507
  • Zoomlion ZTH3507
Telehandler

Zoomlion ZTH3507

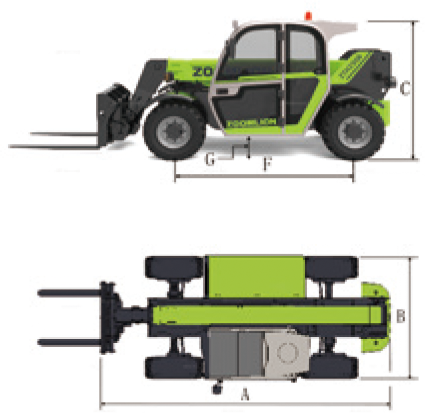

  • 4.79m|15ft 8in
    A Overall length
  • 2.25m|7ft 4in
    B Overall width
  • 2.49m|8ft 2in
    C Overall height
View Complete Details
  • Overview
  • Specifications
Overview

Zoomlion telehandler highlights safety and intelligence, featuring stable boom extension, excellent off-road ability and great gradeability.

CE Certified







Strong power chassis with excellent driving performance and off-road capacity

4×4 drive system, front and rear driving axle with antislip differential gear for great traction force and escape ability

Hydraulic cylinder driven extension system for smooth movement, strong capacity and large work envolope

10.1-inch display screen integrates monitoring, control and entertainment, with a good human-computer interaction experience

Standard floating fork and optional platform, bucket, boom and other attachments meet the diverse needs of customers

Specifications
A Overall length 4.79m|15ft 8in
B Overall width 2.25m|7ft 4in
C Overall height 2.49m|8ft 2in
F Wheelbase 2.98m|9ft 9in
G Min ground clearance 0.44m|1ft 5in
Max lift height 7m|22ft 11in
Rated capacity 3500kg|7716lb
Lift capacity at max height 3500kg|7716lb
Max forward reach 3.91m|12ft 10in
Lift capacity at max reach 1200kg|2646lb
Weight 7290kg|16071lb
Max traction force 76kN|17085lb
Frame leveling angle /|/
Turning radius - outside 3.86m|12ft 8in
Engine WEICHAI WP4.1|WEICHAI WP4.1
Rated power 74kw|99Hp
Max torque 420Nm|310lb*ft
Cylinder 4|4
Displacement 4088m|l1.08gal
Transmission Hydrodynamic|Hydrodynamic
Max drive speed 33.8km/h|21.75mph
Steering 2WS/4WS/Crab|2WS/4WS/Crab
Type 400/70R24|400/70R24
Implement pump Gear pump|Gear pump
Hydraulic flow - pressure 110L/min-270bar|29gal/min-270bar
Hydraulic tank capacity 140L|37gal
Fuel tank capacity 145L|38.3gal
Fork size 1220mm×122mm×50mm|4ft×4.8in×1.968in
Fork rotary 147°|147°
Boom up/down 7.04/5.04s|7.04/5.04s
Boom extend/retract 7.82/5.55s|7.82/5.55s
Fork lift 5s|5s
Fork retract 4s|4s
