Zoomlion ZTH3513
  • Zoomlion ZTH3513
Telehandler

Zoomlion ZTH3513

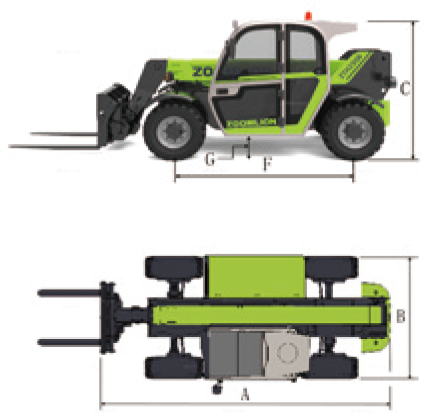

  • 5.84m|19ft 2in
    A Overall length
  • 2.28m|7ft 6in
    B Overall width
  • 2.55m|8ft 5in
    C Overall height
View Complete Details
  • Overview
  • Specifications
Overview

Zoomlion telehandler highlights safety and intelligence, featuring stable boom extension, excellent off-road ability and great gradeability.

CE Certified







Strong power chassis with excellent driving performance and off-road capacity

4×4 drive system, front and rear driving axle with antislip differential gear for great traction force and escape ability

Hydraulic cylinder driven extension system for smooth movement, strong capacity and large work envolope

10.1-inch display screen integrates monitoring, control and entertainment, with a good human-computer interaction experience

Standard floating fork and optional platform, bucket, boom and other attachments meet the diverse needs of customers

Specifications
A Overall length 5.84m|19ft 2in
B Overall width 2.28m|7ft 6in
C Overall height 2.55m|8ft 5in
F Wheelbase 3.07m|10ft 1in
G Min ground clearance 0.42m|1ft 4in
Max lift height 12.7m|41ft 8in
Rated capacity 3500kg|7716lb
Lift capacity at max height 3500kg|7716lb
Max forward reach 8.73m|28ft 7in
Lift capacity at max reach 1000kg|2204lb
Weight 9880kg|21781lb
Max traction force 82kN|18434lb
Frame leveling angle ±10°|±10°
Turning radius - outside 3.8m|12ft 6in
Engine Cummins QSF 3.8 L|Cummins QSF 3.8 L
Rated power 74kw55KW(EUⅤ)|99.2Hp74Hp
Max torque 420Nm|310lb*ft
Cylinder 4|4
Displacement 3760m|l0.99gal
Transmission Hydrodynamic|Hydrodynamic
Max drive speed 35km/h|21.75mph
Steering 2WS/4WS/Crab|2WS/4WS/Crab
Type 400/70R24|400/70R24
Implement pump Piston pump|Piston pump
Hydraulic flow - pressure 132L/min-270bar|34.87gal/min-270bar
Hydraulic tank capacity 140L|37gal
Fuel tank capacity 145L|38.3gal
Fork size 1220mm×122mm×50mm|4ft×4.8in×1.968in
Fork rotary 126°|126°
Boom up/down 10.2/8s|10.2/8s
Boom extend/retract 12.7/8s|12.7/8s
Fork lift 4.6s|4.6s
Fork retract 4s|4s
