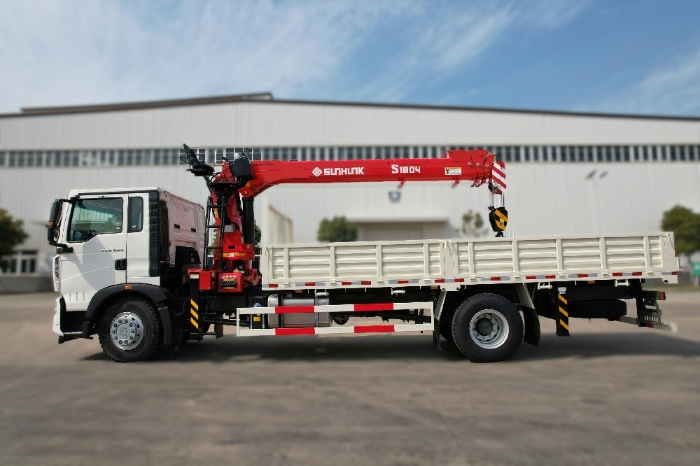

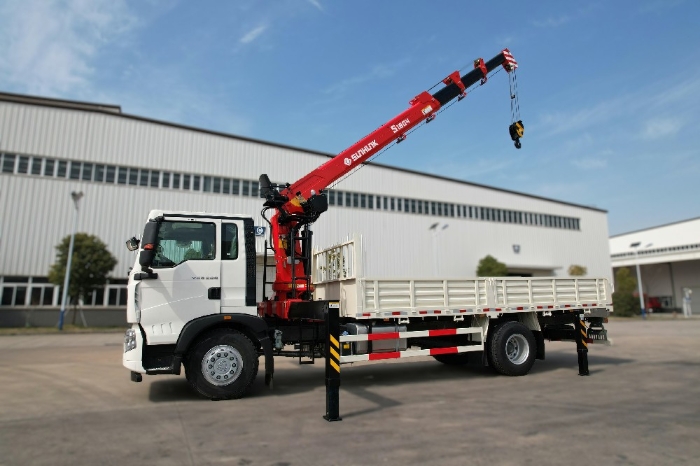

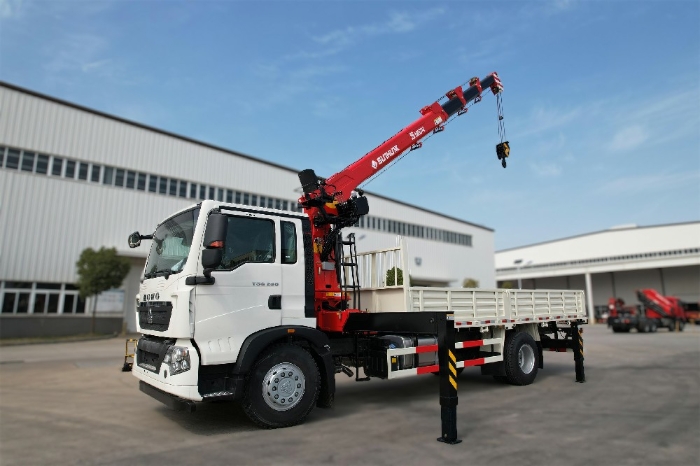

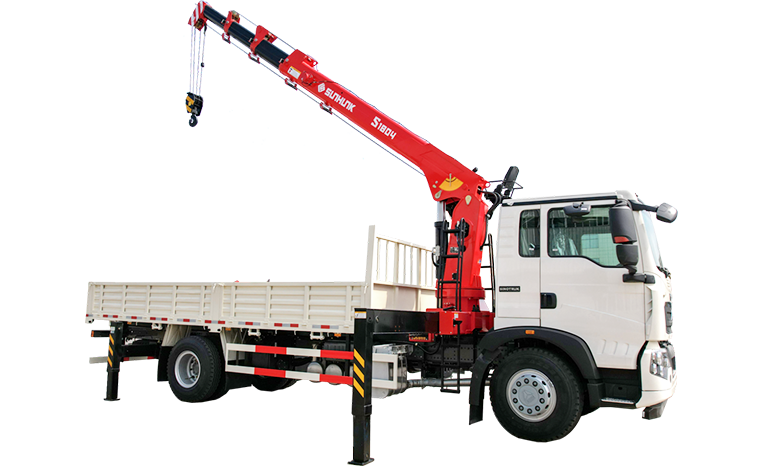

Expert in Seedling Transportation
♦ The key structural components are made of Q690D high-strength steel plate through welding, providing high strength and light weight.
♦ The octagon boom is designed with finite element analysis for strength, balancing lightweight and strength.
♦ The full extension length of the boom is 14.6 meters, surpassing other small-tonnage four-section boom products of the same class in terms of total length.
♦ The fully retracted length of the boom is 5 meters, suitable for 4x2 chassis with different wheelbases.
♦ The maximum leg span is 6 meters, leading other small-tonnage products of the same class.
| Rated load | 7200kg |
| Rated lifting capacity | 18t.m |
| Max. working range | 14.6m |
| Maximum lifting height | 17m |
| Number of boom sections | 4sections |
| Maximum angle of elevation | 75° |
| Swing angle | 360° |
| Support leg spread | 6000mm |
| System displacement | 64L/min |
| Crane self-weight | 3100kg |
| System rated pressure | 28mpa |
