Designed for top mounting, suitable for installation on excavators for breaking operations. With an overall long length and extended breaking distance, it employs single body typed brackets without mounting cap separation that prevents cylinder scratching. Applying a chamfered special grade cylinder helps prevent scratching.

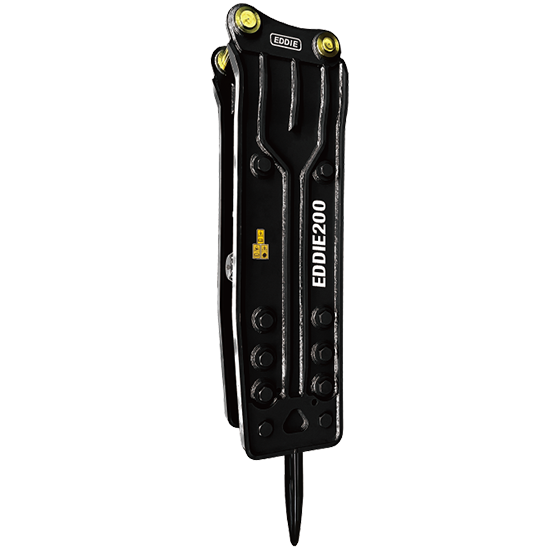

| Specifications | Unit | EDDIE200 |
| Operating Pressure | kg/cm² psi bar | 270-300 3837-4263 265-294 |
| Oil Flow | l/min gal/min | 260-315 69-83 |
| Impact Frequency | bpm | 100-150 |
| Tool Diameter | mm inch | 200 7.87 |
| Suitable Carriers | ton | 50-60 |
| Valve Type | Valve Mounted Type | |
| Accumulator | Yes |
