Large excavator

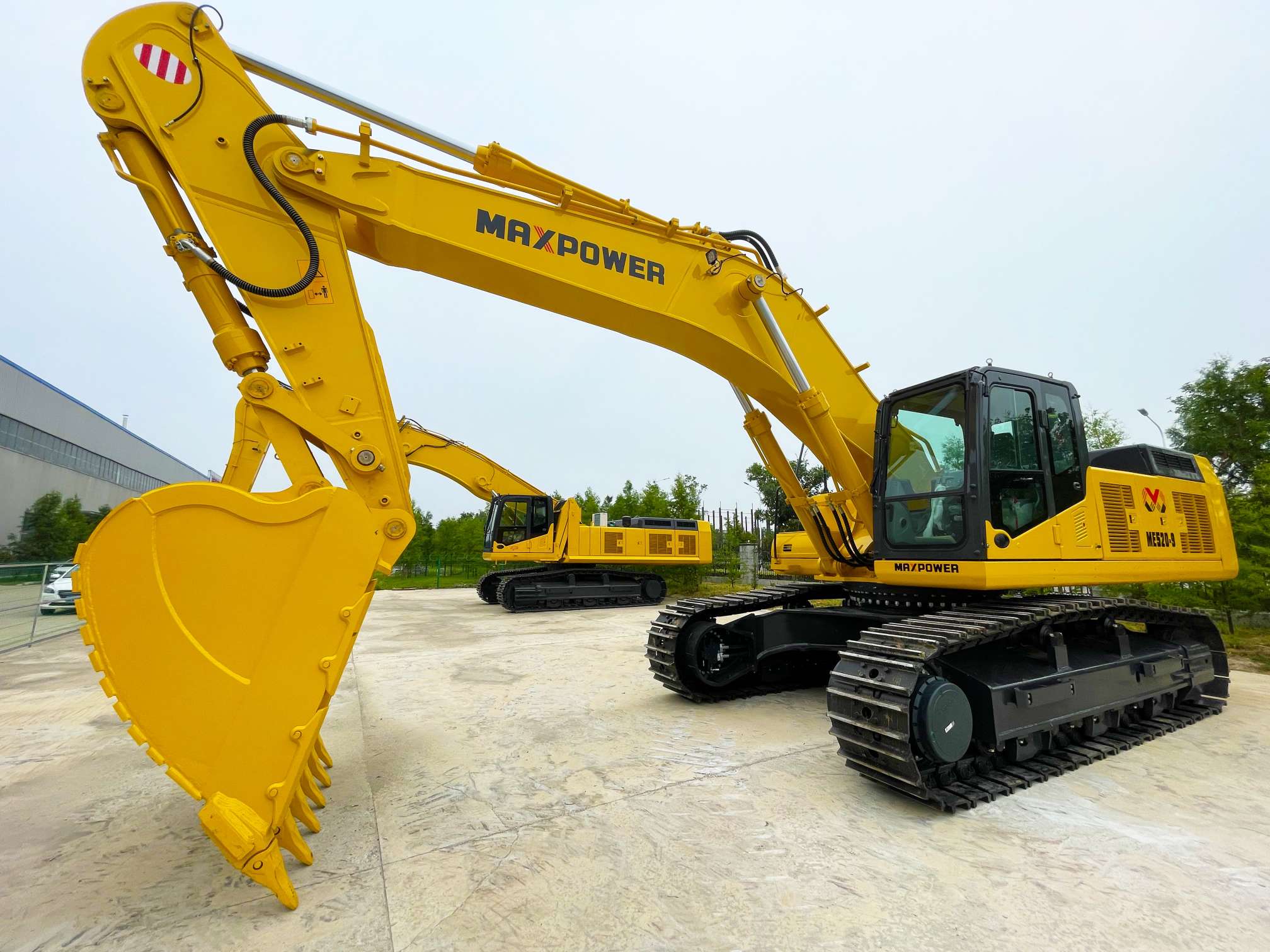

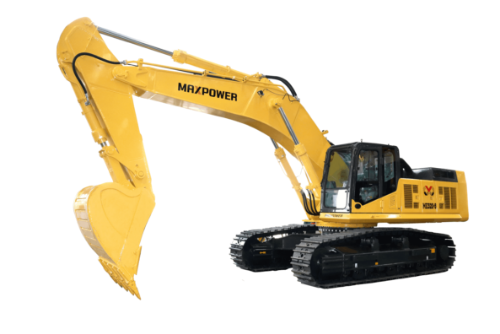

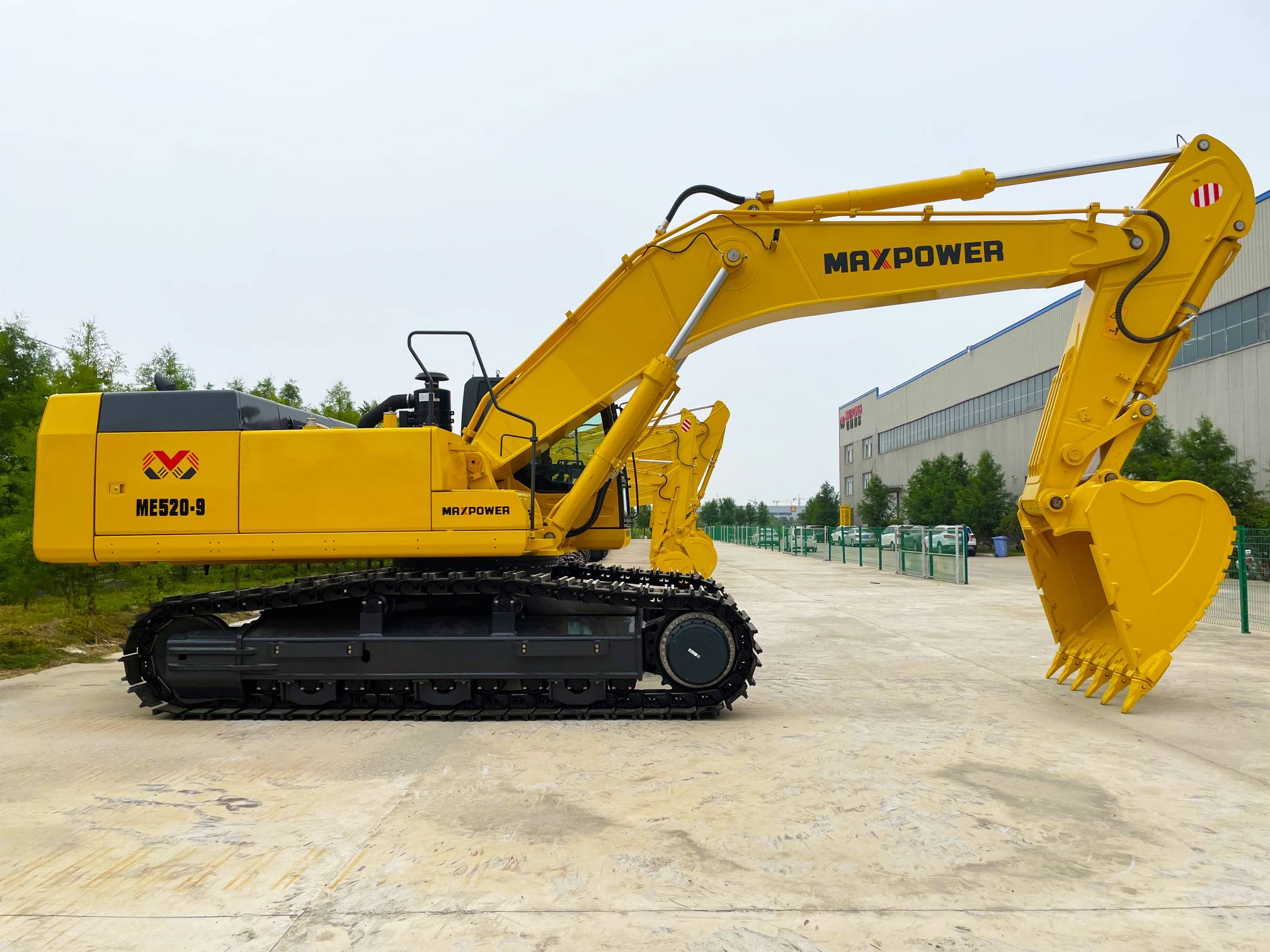

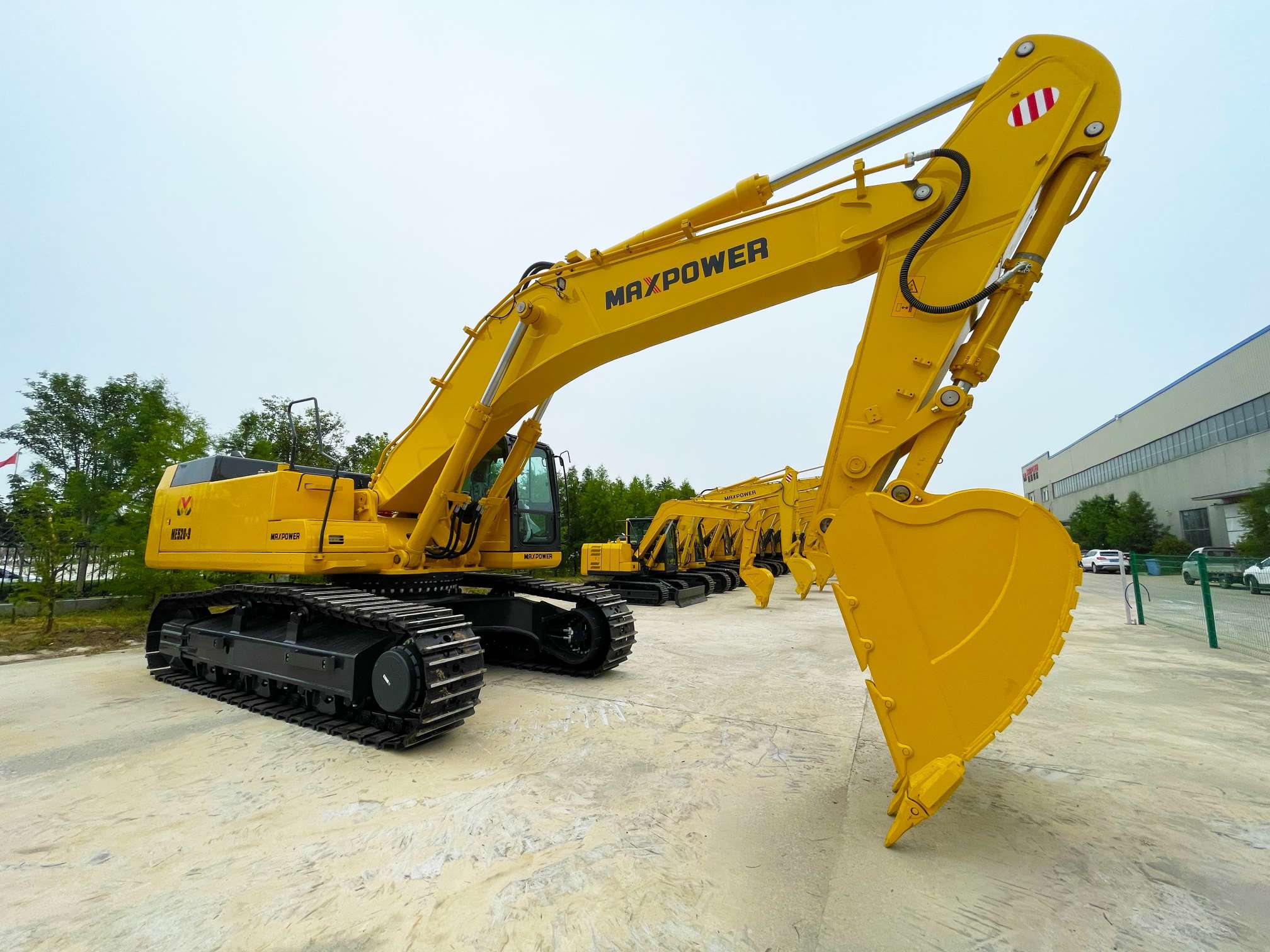

Maxpower ME520

  • 51.5T
    Operating weight
  • 2.8-3.6m³
    Bucket capacity
  • Isuzu 6WG1/Cummins QSM11
    Engine model
View Complete Details
  • Overview
  • Specifications
Overview

Powerful and energy-efficient

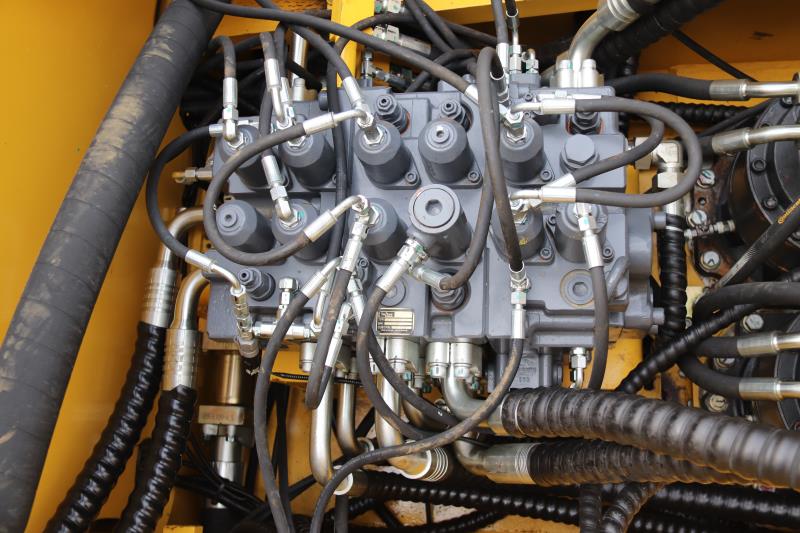

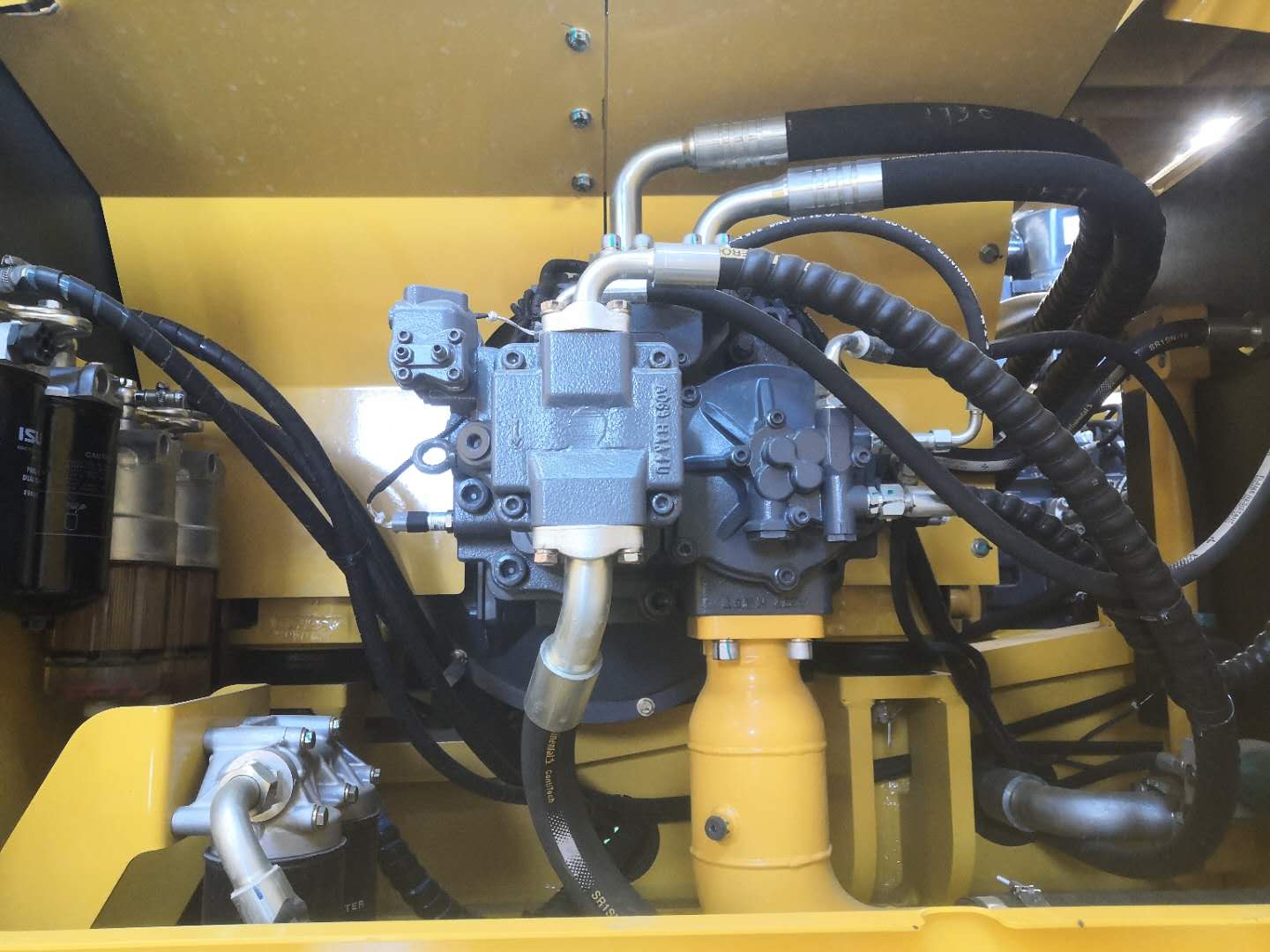

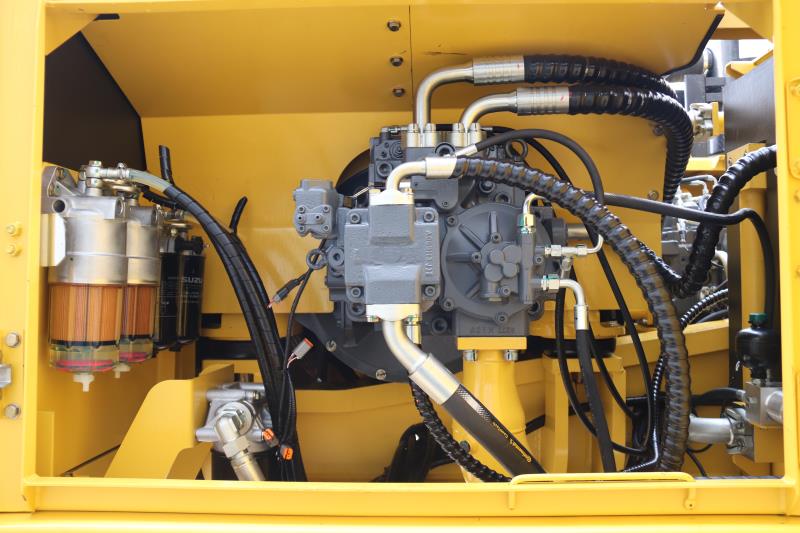

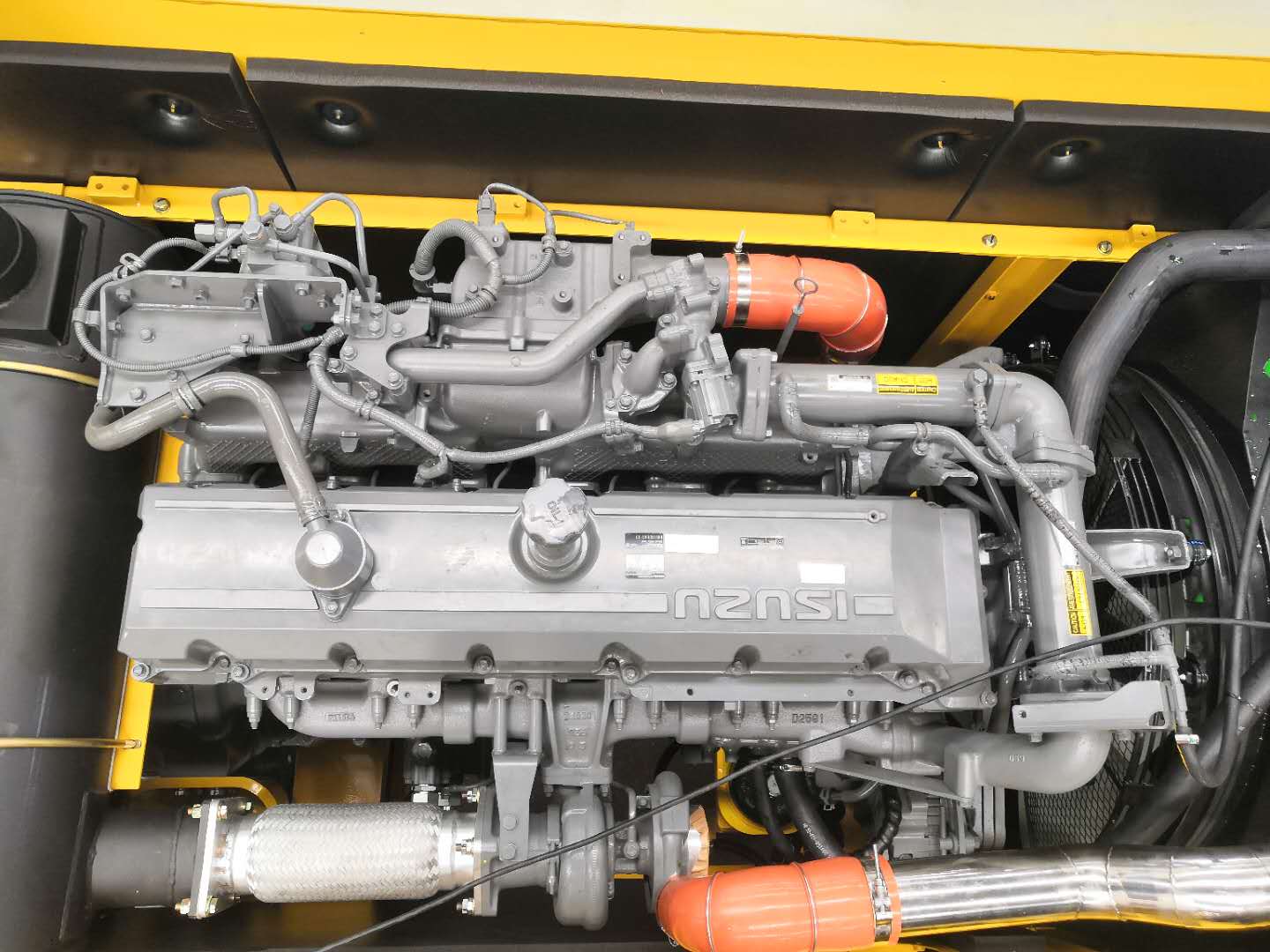

The Cummins engine has a power output of up to 299kW, with ample torque reserve, quick response, stable output, and a long lifespan. Electro-control optimization performance, multi-stage idle control, excellent fuel economy, suitable for heavy loads. Leading brand electric control pump and valve, large diameter reduces loss and increases flow, improves controllability, and operates powerfully and efficiently. Standard is equipped with a buffer valve to enhance the comfort of the operation.

Sturdy and durable structure

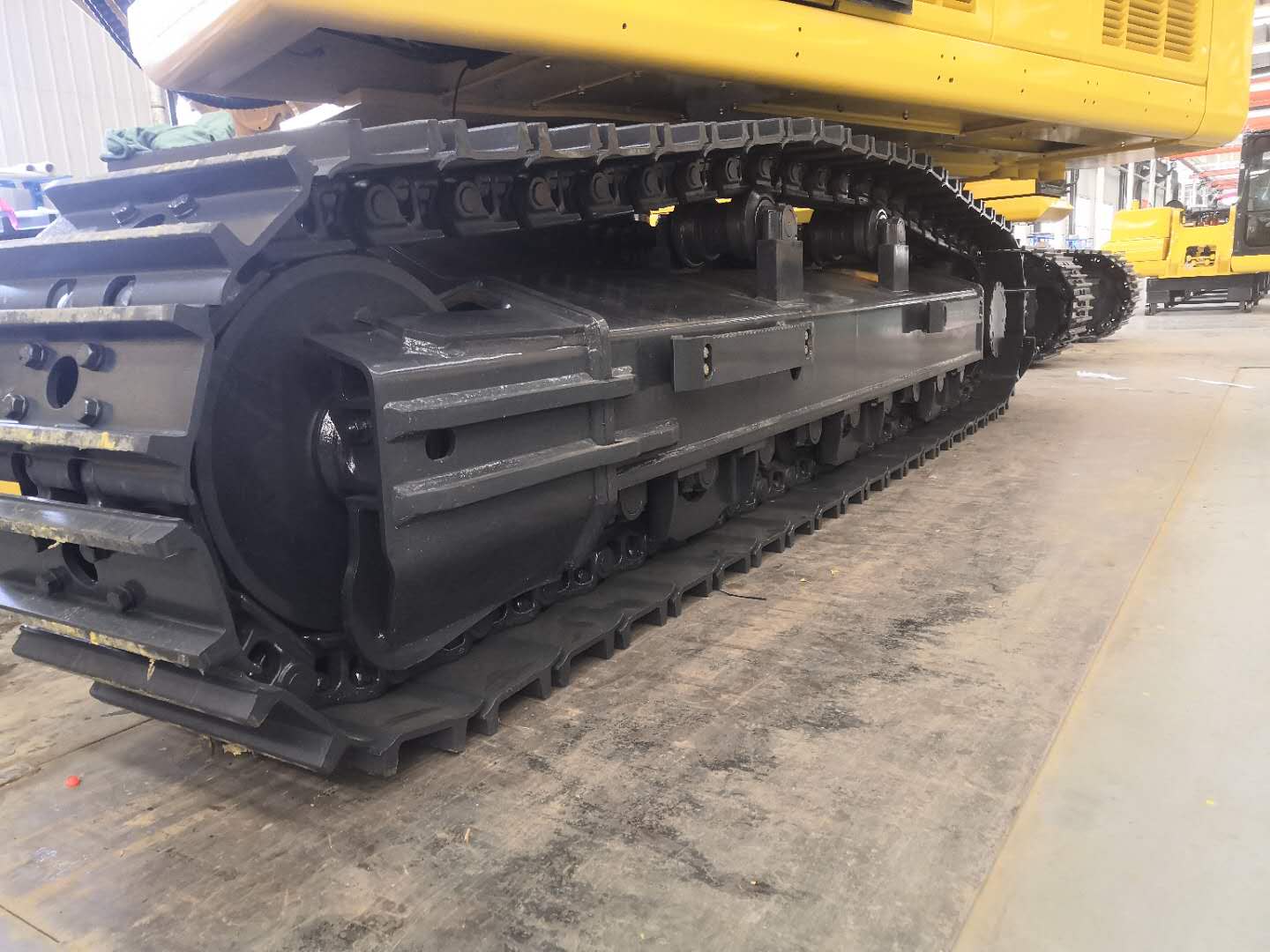

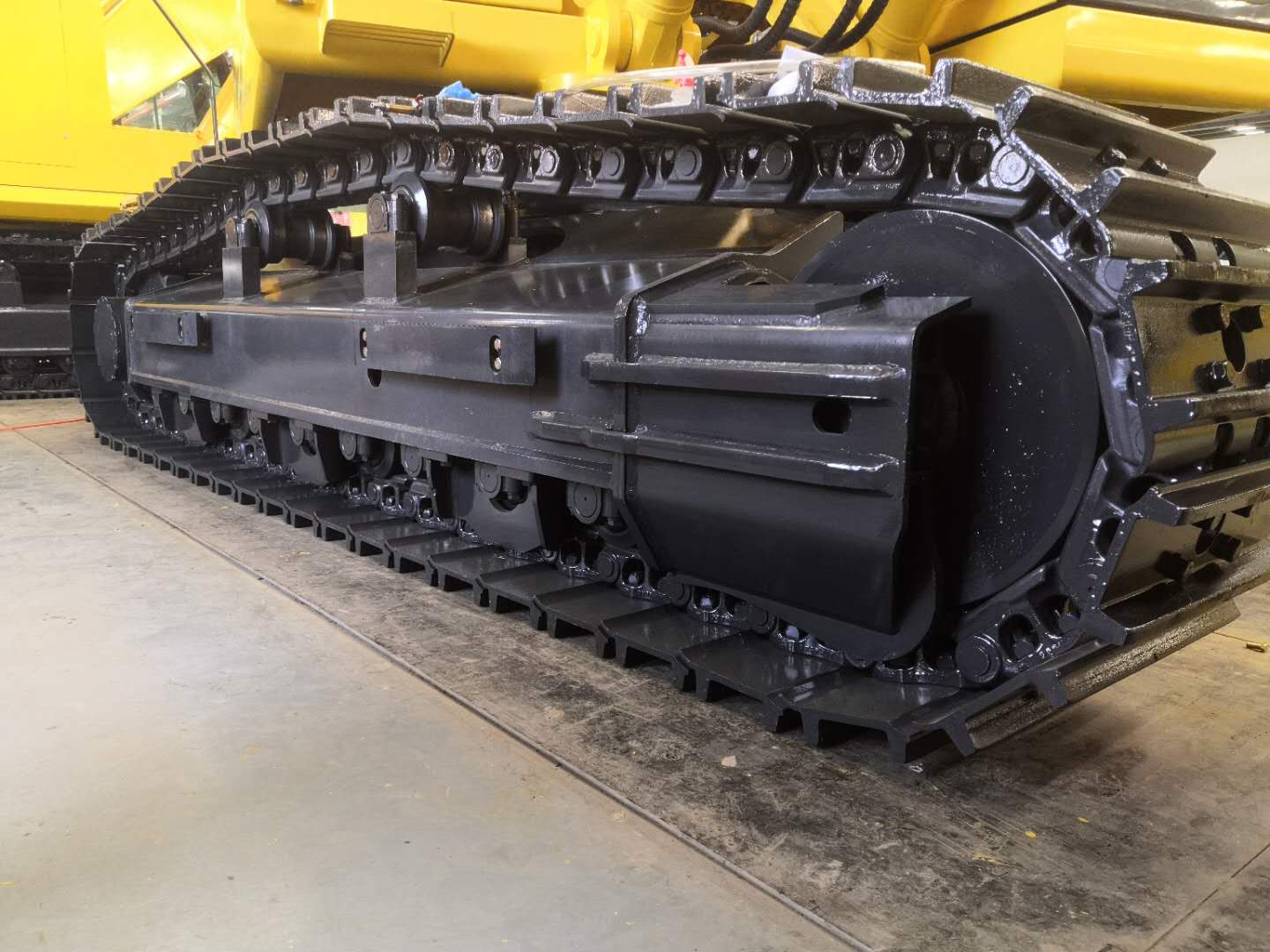

The boom and dipper arm supports are made of cast steel, with stable and reliable welds. The lower cover plate of the boom is integrated to enhance strength. The wide dipper arm head and large diameter pin shaft provide stability. The self-developed heavy-duty chassis features dual-side support with load wheels replacing chain wheels, with plate thickness exceeding industry standards, offering resistance to bending and torsion, making it durable and reliable.

Comfort and safety assurance

Commercial vehicle-grade NVH optimization, smooth and comfortable. The ROPS cabin ensures safety and provides clear visibility. Comfortable seats, equipped with Bluetooth speakers and automatic air conditioning.

Convenient maintenance and expansion

The large-angle hood is welded securely, and the spring-assisted opening is effortless. The all-angle component layout makes maintenance convenient. Various attachments are available for optional installation, broadening applications to meet different working conditions.

Specifications
Operating weight 51.5T
Bucket capacity 2.8-3.6m³
Engine model Isuzu 6WG1/Cummins QSM11
Rated power 300/1800 299/1800kw/r/min
Hydraulic pump model Inline V90N230DP ; KPM K5V212DPH
Maximum flow 414x2 ; 385*2L/min
Overall length 12100mm
Overall width 3340mm
Overall height (to top of boom) 4230mm
Overall height (to top of cab) 3265mm
Arm length 2550mm
Boom length 6560mm
