XCMG XE500LC
  • XCMG XE500LC
LC Series

XCMG XE500LC

  • 52000Kg
    Operating weight
  • 318kW/rpm
    Rated power
  • Cummins QSX12
    Engine model
View Complete Details
  • Overview
  • Product Features
  • Specifications
Overview

XE500LC adopts electronically controlled positive flow hydraulic system for rapid responses and sensitive operations. Customized-curve Cummins engine provides more powerful with 3 %-9 % reduction of fuel consumption and 15 %-26 % reduction of engine stall. Stage Ⅲ emission and low-speed with high-torque features provide more efficiency, energy saving, and environmental protection. Original imported large replacement main pump and main valve can effectively improve 3 %-5 % output efficiency with heavy load. The combination of double swing motors makes the XE500LC more powerful and more efficient. Standard ROPS (Roll-Over-Protective Structure) and OPG-compliant cab with front and top guards to ensure greater safety for the operator. A wide range of after-sales service system, quick-response rescue mechanism to ensure that you use at ease.

Product Features

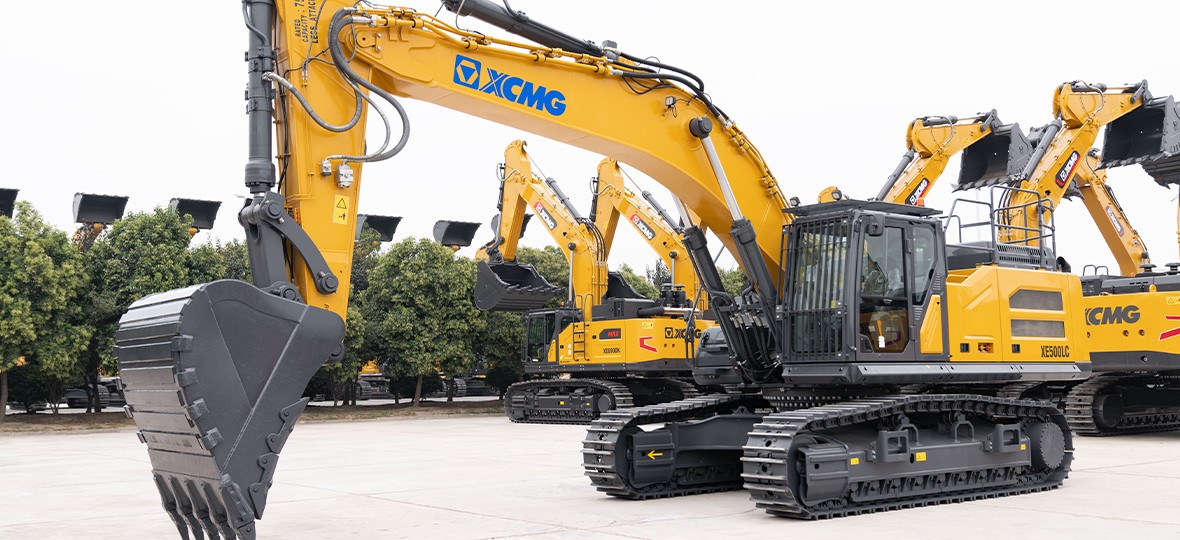

XCMG XE500LC

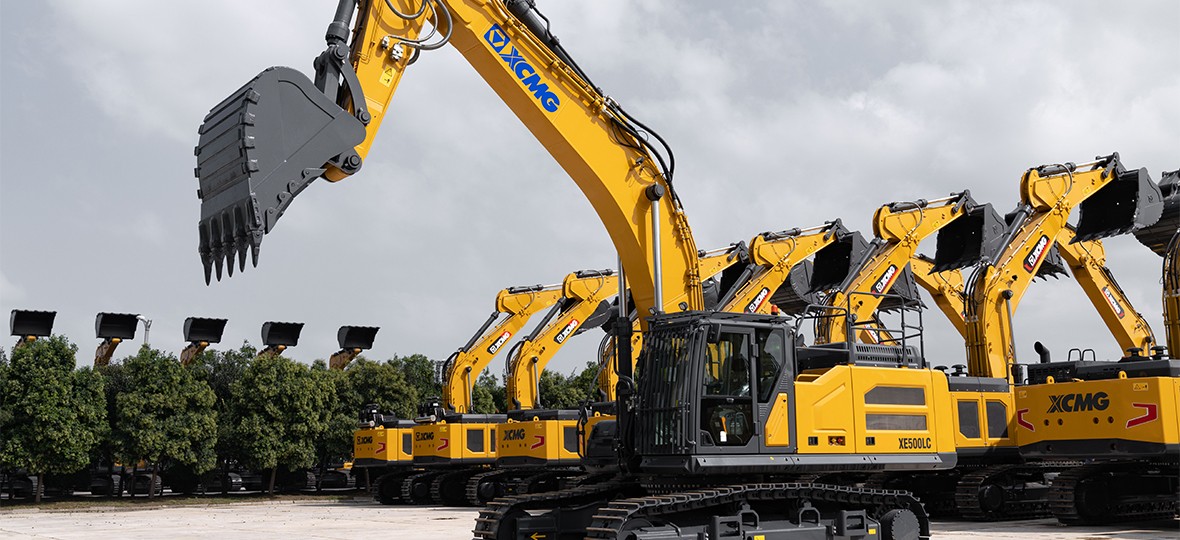

XCMG XE500LC
Specifications
Operating weight 52000Kg
Rated power 318kW/rpm
Engine model Cummins QSX12
Bucket capacity 2.8m³
Emission standard National Stage Ⅲ
Maximum torque/speed 1898/1200-1600N.m
Displacement 11.8L
Travel speed 5.4/3.2km/h
Swing speed 9.2r/min
Bucket digging force 269kN
Arm digging force 205kN
