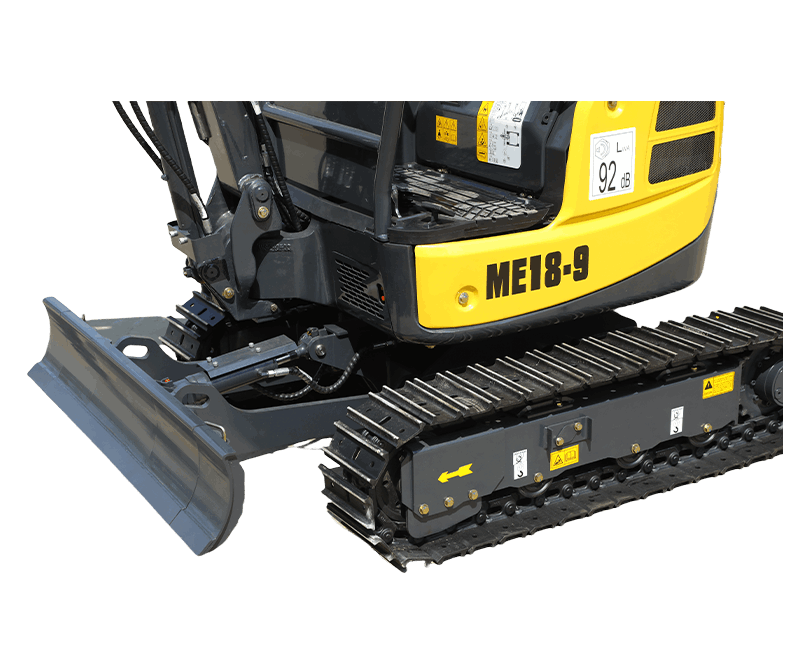

Flexible adjustable chassis
The chassis width can be flexibly adjusted between 720mm and 1050mm to adapt to different working conditions. When narrow, it easily traverses narrow areas; when wide, it increases the ground contact area, lowers the center of gravity, and enhances stability and safety on soft and complex terrains.

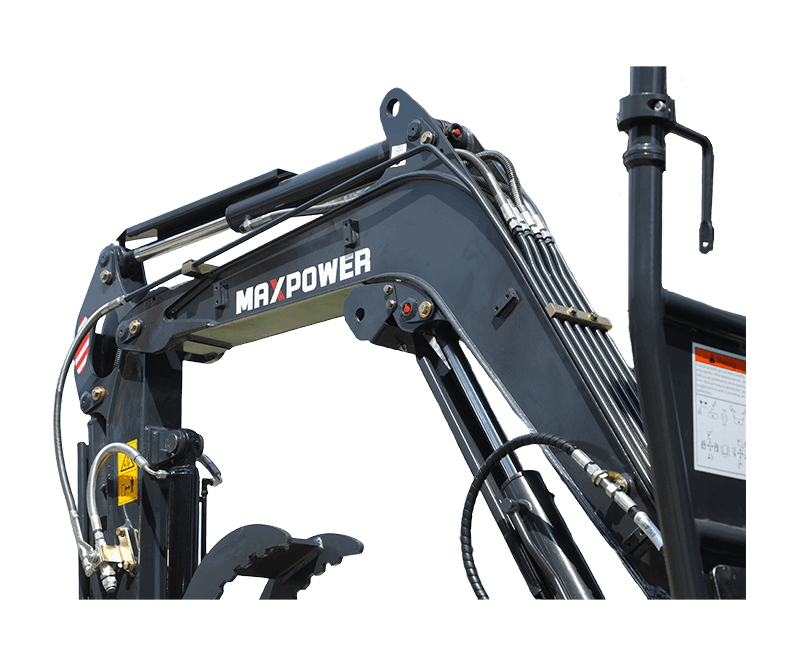

Powerful deflection feature
The working device can tilt left and right by up to 60 degrees and 45 degrees, respectively. Combined with the vehicle's rotation, it can excavate parallel to walls in narrow spaces, adapting to extreme urban conditions and expanding operational capabilities and scenarios.
High-efficiency power system
Equipped with a Yanmar engine, it is durable and has a long lifespan. The turbocharging and indirect injection technology optimizes fuel atomization, enhances combustion efficiency, provides powerful performance, and adapts to harsh working conditions.
Universal tool interface
Design standardized attachment interfaces to seamlessly connect various attachments such as hydraulic hammers, grapples, and pile drivers, meeting the needs of different engineering projects in urban construction, landscaping, and water conservancy.
| Operating weight | 1.86T |
| Bucket capacity | 0.05m³ |
| Engine model | YANMAR 3TNV7O-SSY ；Yanmar 3TNV70 ； Yanmar 3TNV74F |
| Rated power | 10.3/2200 ；10.3/2200 ; 11.2/2400kw/r/min |
| Hydraulic pump model | LX10VO28/TFA10V28 |
| Maximum flow | 61.6/67.2L/min |
| Overall length | 3460mm |
| Overall width | 950/1280mm |
| Overall height （to top of boom） | 1450mm |
| Overall height （to top of cab） | 2440mm |
| Arm length | 950mm |
| Boom length | 1720mm |
| Blade | 757/950（with connecting plate)*226width*height,mm |
