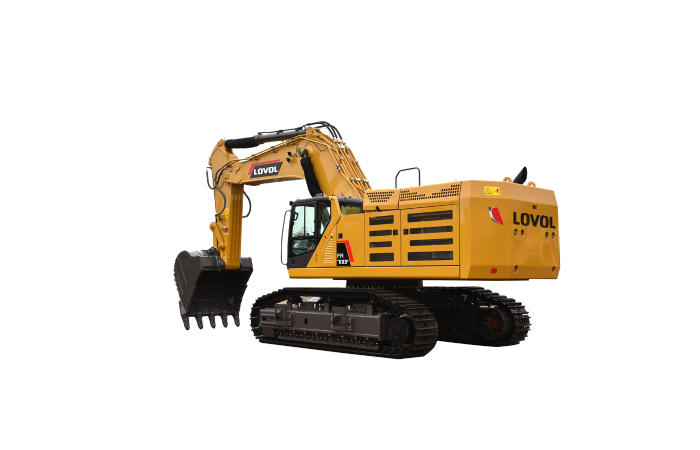

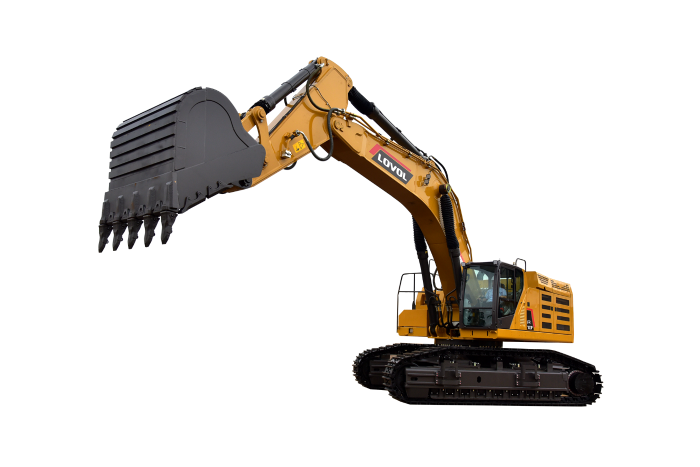

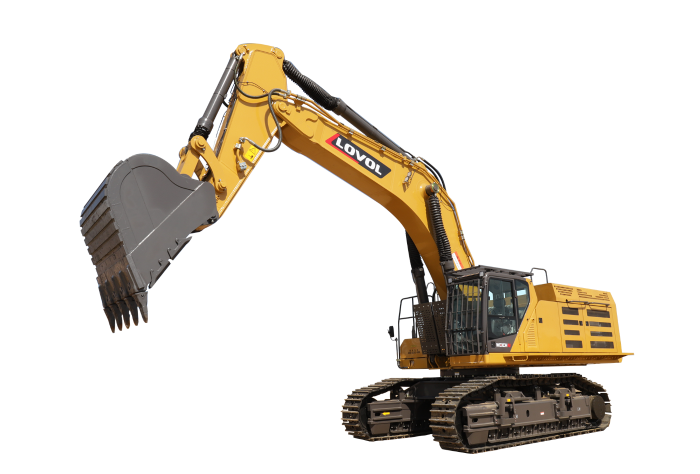

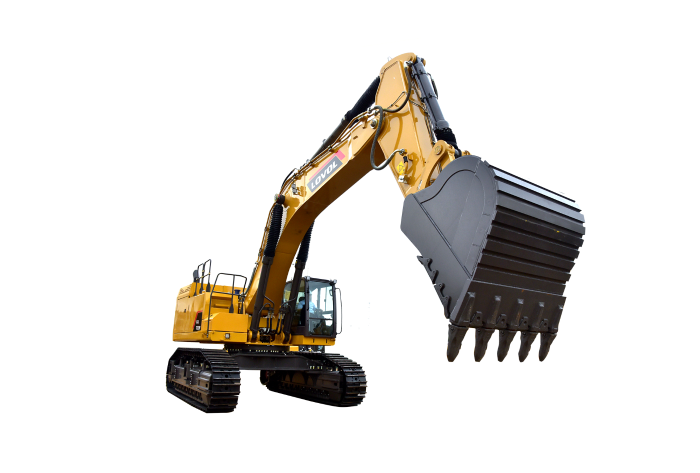

Weichai WP15H 566kW engine +Linde 300cc main pump , working mass 68500kg.
RELIABLE
Weichai H platform engine with a lifespan of up to 30,000 hours; Heavy-duty swing platform reducing stress by more than 40%. Chassis uses a split design specialized for mining, with a newly upgraded work device structure, lifespan exceeding 15,000 hours.
COMFORTABLE
Newly upgraded cab with sealed front and top windows; Newly developed Lovol’s intelligent operation system enables, automatic recognition of working conditions, auxiliary operation, and personalized customization.
INTELLIGENCE
The newly developed Reeva intelligent operating system enables power system management, intelligent inter action, automatic recognition of work ing conditions, auxiliary operation and individual customization.
| Operating Weight | 68500kg |
| Bucket Capacity | 4.4（standard bucket）m³ |
| Rated Power | 566/1900kW |
| Emissions | Stage III |
| Transportation Dimensions（L*W*H） | 12550*4350*4750mm |
| Max.Digging Radius | 11760mm |
| Max.Digging Height | 11300mm |
| Max.Digging Depth | 7170mm |
| Max.Unloading Height | 7240mm |
| Bucket Digging Force | 374kN |
| Stick Digging Force | 320kN |
| Track Width | 600mm |
