High-performance operations
Through optimized design, the digging force has significantly increased, the rotation drive has been innovated, enhancing the rotation torque and stability, and productivity has been greatly improved by 15%.
Sturdy and durable construction
Heavy-duty bucket ear plates are thickened, the front edge plate features a flange design, the connecting rod pin is reinforced, and the bucket rod is custom-forged and strengthened. This setup can handle harsh working conditions, meet high production demands, and ensure a long and stable bucket lifespan.

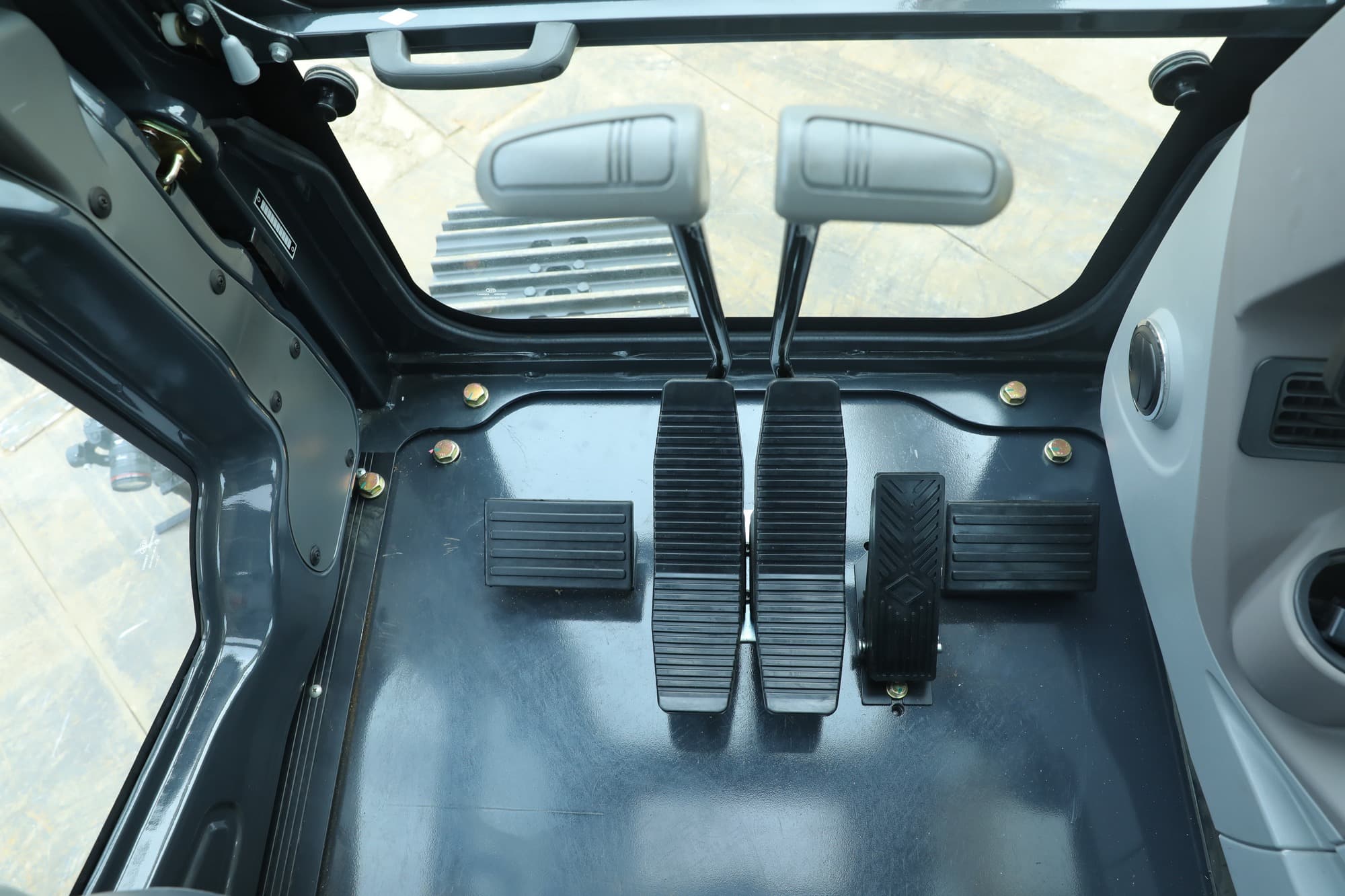

Comfortable driving environment

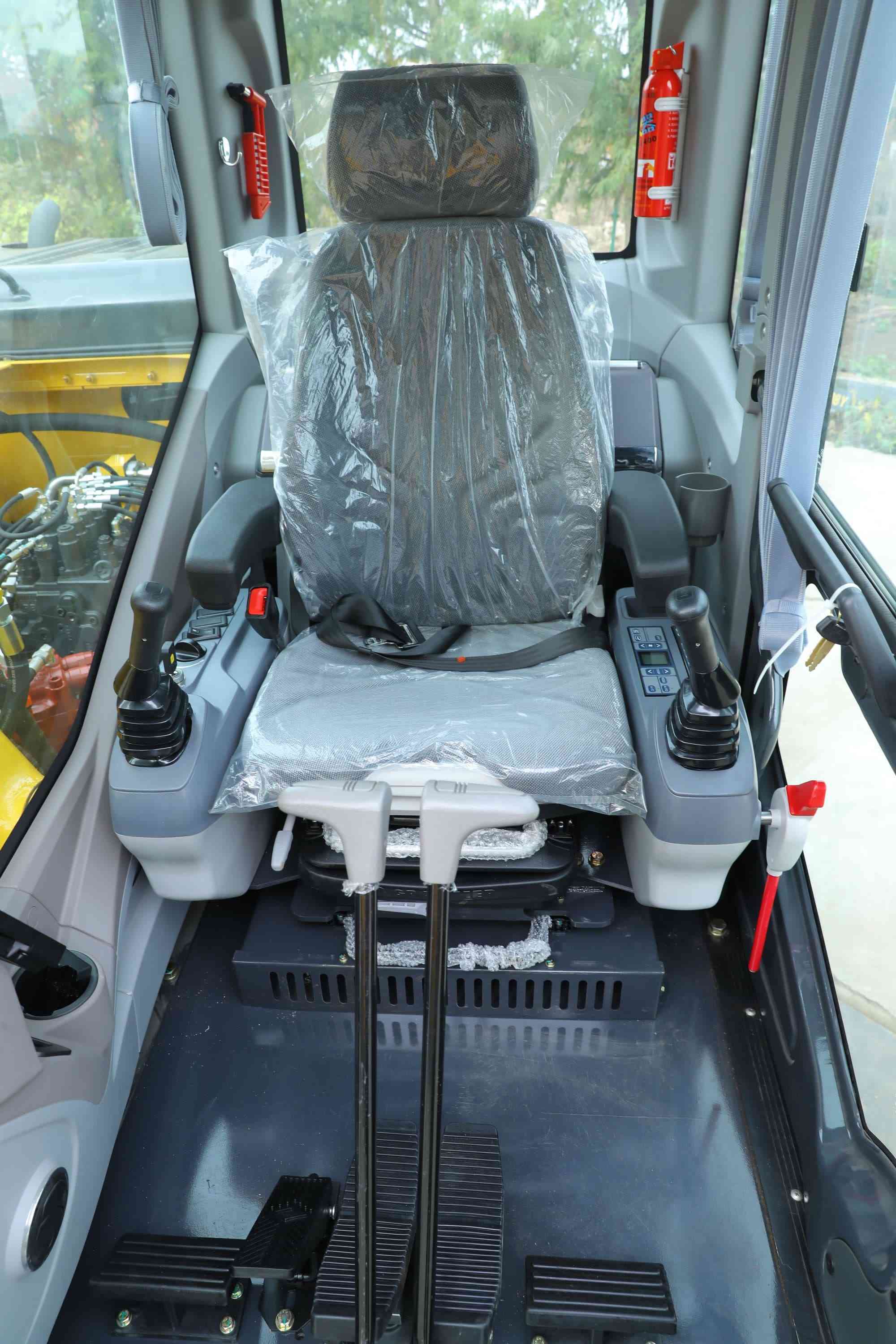

The entire vehicle meets commercial vehicle-grade NVH standards, reducing noise and vibration. The seat lumbar support is thickened, the seat cushion is high-density, equipped with Bluetooth audio, automatic heating, and cooling air conditioning, and three-dimensional air distribution.

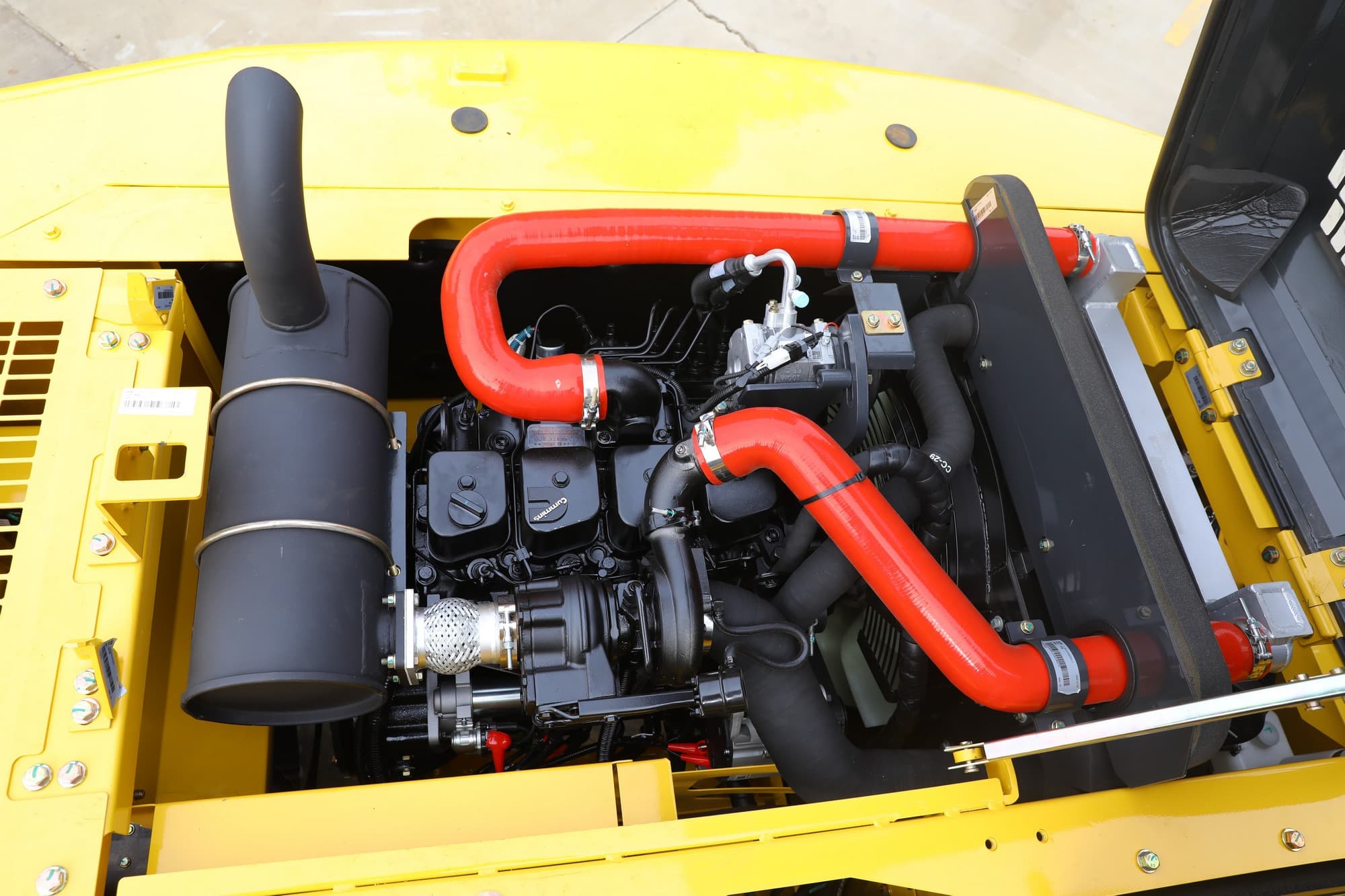

Convenient maintenance and expansion

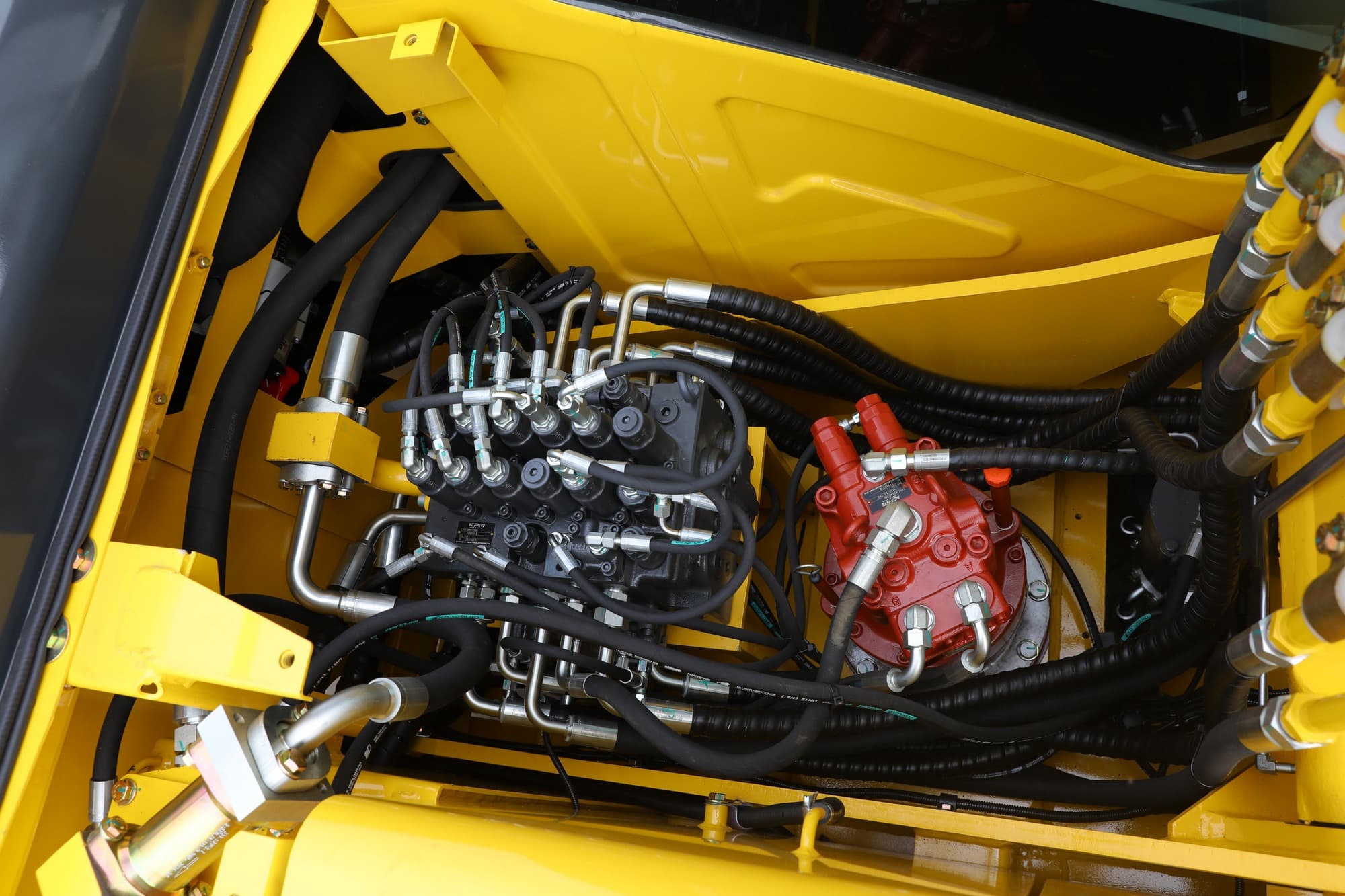

The hood opens at a wide angle, providing full visibility and convenience for maintenance. It can accommodate various attachments, expanding its applications and adapting to different working conditions.
| Operating weight | 15T |
| Bucket capacity | 0.60-0.75m³ |
| Engine model | Cummins 4BTAA3.9 ；Cummins QSF3.8 |
| Rated power | 86/2200 kw/r/min |
| Hydraulic pump model | Inline HP3V75 |
| Maximum flow | 165*2L/min |
| Overall length | 7740mm |
| Overall width | 2500mm |
| Overall height （to top of boom） | 2880mm |
| Overall height （to top of cab） | 2830mm |
| Arm length | 2500mm |
| Boom length | 4600mm |
