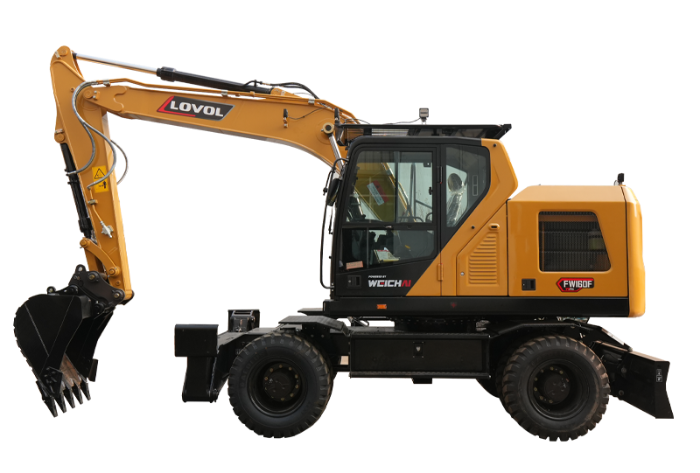

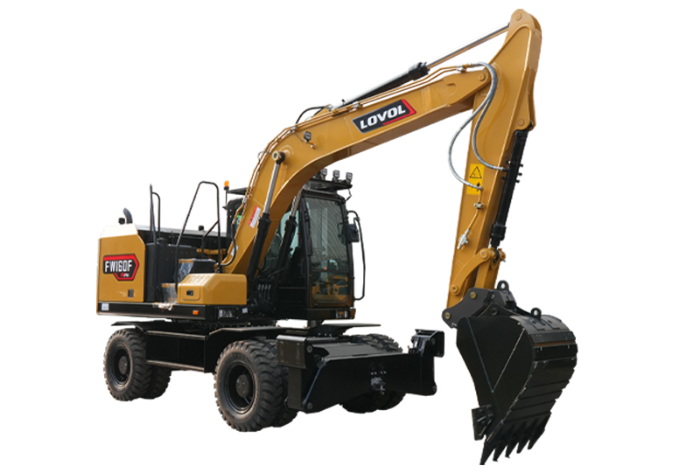

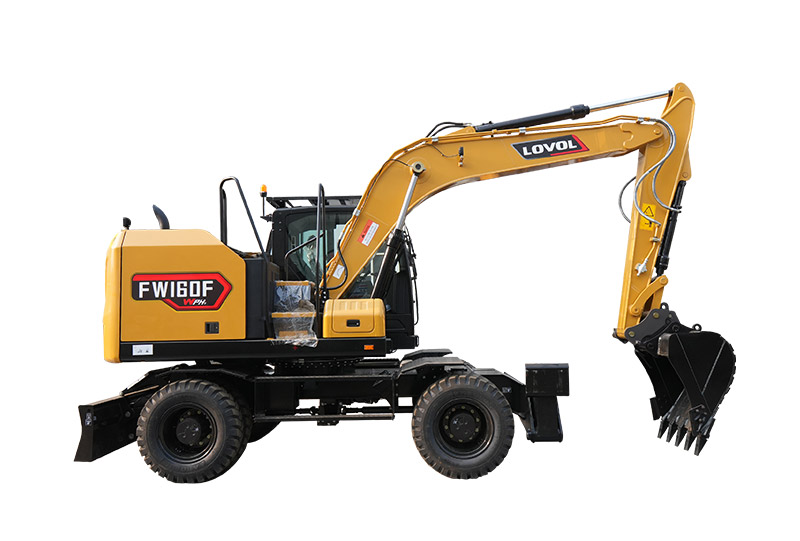

Lovol FW160F
  • Lovol FW160F
  • Lovol FW160F
  • Lovol FW160F
Wheel Excavator

Lovol FW160F

  • 15160kg
    Operating Weight
  • 123kW/rpm
    Engine Power
  • 0.6m³
    Scope of capacity
View Complete Details
  • Overview
  • Specifications
Overview

Efficient

Weichai National III WP4.6N new engine, Linde main pump and main valve, higher work efficiency; Fuel efficiency increased by 5%; Optimized swing logic, 26% larger operating range compared to competitors, 30% improved dead zone operation.

Reliable

Major components such as engine, main pump, and main valve with a 5-year or 10,000-hour extended warranty; Optimized boom and arm, newly welded chassis, lower center of gravity, 10% higher reliability and stability compared to competitors.

Comfortable

Cab with large opening laminated safety glass and sunroof, wide unobstructed view; "Embracing" dual rail seat, 8-inch touchscreen, more comfortable driving and riding.

Specifications
Operating Weight 15160kg
Engine Power 123kW/rpm
Scope of capacity 0.6m³
Engine Model WEICHAI WP4.6N
Engine Displacement 4.58L
Max. Torque 680N.m
Arm length 4600mm
Bucket rod length 2500mm
Forward Speed 36/9Km/h
Rotary Speed 10.98rpm
Bucket Digging Force 102kN
Bucket rod digging force 73.9kN
Max. Main Pump Flow 75L/min
Transportation dimensions(L*W*H) 7749*2520*3162mm
