XCMG XTC120
  • XCMG XTC120
Trench Cutter

XCMG XTC120

  • 800-1800mm
    Trench width
  • 105 (Special 125)m
    Maximum trench depth
  • 2×120kN·m
    Maximum torque
View Complete Details
  • Overview
  • Product Features
  • Specifications
Overview

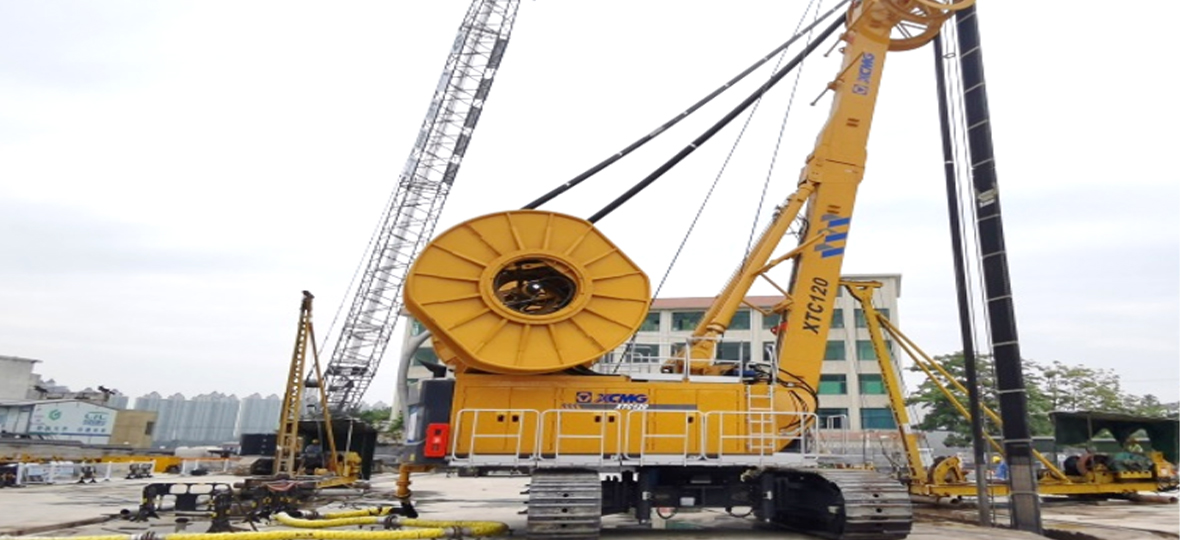

XTC series trench cutter is mainly used in the construction of underground diaphragm wall, especially for rock stratum. The main application fields include the construction of cutoff walls, retaining walls and bearing walls in underground deep foundation projects such as subway stations, building foundation pits, bridge anchorages, water conservancy and hydropower.
The trench cutter uses dedicated host machine which is highly integrated, with large construction parameters, strong construction capacity, high efficiency and low labor intensity.

Product Features
XCMG XTC120
Specifications
Trench width 800-1800mm
Maximum trench depth 105 (Special 125)m
Maximum torque 2×120kN·m
Rotary speed 0-25r/min
Trench length 2800mm
Maximum hoisting force 780kN
Engine CAT C18
Engine power 571kW
Emission standard EU III / EU V
Operating weight 186t
