| TECHNICAL SPECIFICATIONS | MEL880 | |||||
|---|---|---|---|---|---|---|

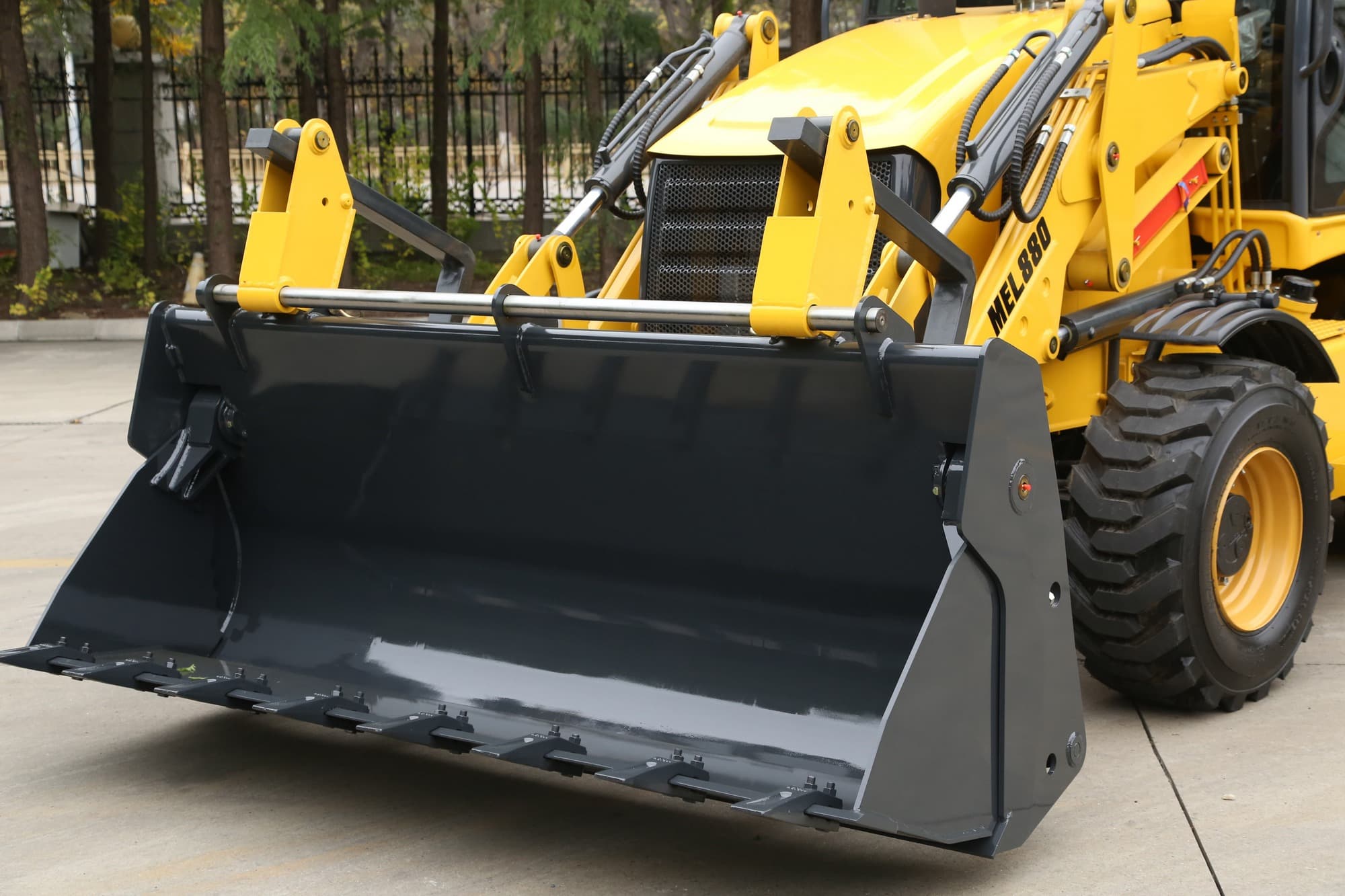

| Multifunctional Bucket(Four-in-One / Six-in-One) | Standard loading hopper | |||||
| Engine | Model | YC4A105Z | 4BTA3.9-C100-ll | YC4A105Z | 4BTA3.9-C100-ll | |
| Output power/speed(kW/rpm) | 75/2200 | 74/2200 | 75/2200 | 74/2200 | ||
| Overall dimensions | Length*Width*Height(mm) | 6355*2400*3700 | 5860*2370*3800 | |||
| Weight(kg) | 9250 | 8550 | ||||
| Front Wheel Width (mm) | 2230 | 2230 | ||||
| Rear Wheel Width (mm) | 2295 | 2295 | ||||
| Minimum Ground Clearance (mm) | 362 | 362 | ||||
| Loading section | Max Height Lifting Load (kN) | 34 | 35 | |||
| Bucket lifting force(kN) | 58 | 58 | ||||
| Bucket Capacity(m³) | 1 | 1.1 | ||||
| Bucket Width(mm) | 2365 | 2350 | ||||
| Bucket Weight(kg) | 867 | 510 | ||||
| Excavation section | Deflectable angle | 180 | 180 | |||
| Maximum digging force(kN) | 43/42/30.4 | 43 | ||||
| Maximum digging force of the bucket(kN) | 73.1/72.2/72.2 | 73.1 | ||||
| 0.32m³ Bucket | Bucket Width(mm) | 690 | 690 | |||
| Bucket Weight(kg) | 260 | 260 | ||||
