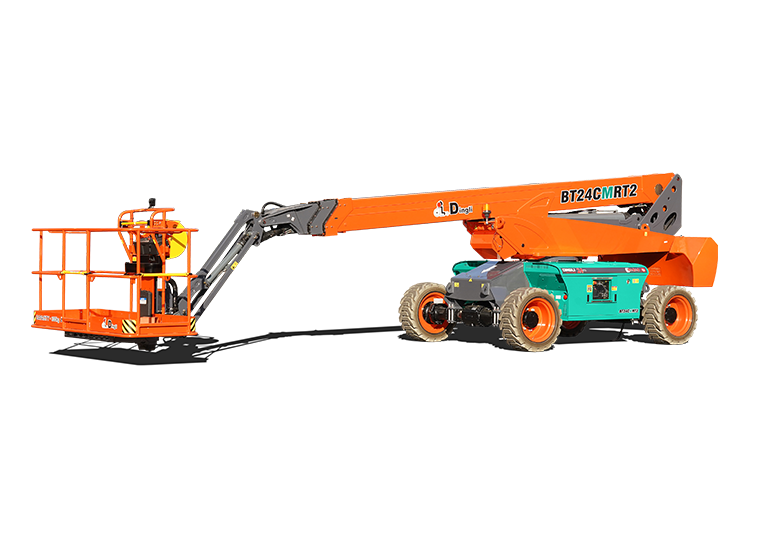

Dingli BT24CMRT2
  • Dingli BT24CMRT2
Articulated Boom Lift

Dingli BT24CMRT2

  • 24.20m/79ft 5in
    Max. Working Height
  • 22.20m/72ft 10in
    Max. Platform Height
  • 17.64m/57ft 10in
    Max. Operating Range(+0.6m)
View Complete Details
  • Overview
  • Specifications
Overview

● Developed by DINGLI’s domestic R&D Center;

● Modular design horizontally & vertically, 85% of the components common in the full range, developed on the same platform;

● Equipped with integrated axle, four-wheel drive & Four-Wheel Steering;

● Driveable at full height with large load of 300kg;

● Suitable for standard container transport;

● Equipped with 18.2kw low-power engine.

● Battery can be used as a starter battery

● Under normal working conditions, the engine can charge the battery; under complex working conditions, the battery can provide additional torque output.

● Renewable biodiesel can be filled, offering the advantages of high energy saving, more economical, strong power and more eco-friendly


Specifications
Max. Working Height 24.20m/79ft 5in
Max. Platform Height 22.20m/72ft 10in
Max. Operating Range(+0.6m) 17.64m/57ft 10in
Max. Platform Range 17.04m/55ft 11in
Flatbed Transport Dimensions (L×W×H) 9.36m×2.50m×2.46m/30ft 8in×8ft 2in×8ft 1in
Standard Container Transport All Applicable
Platform Size(Length×Width) 2.44m×0.91m/8ft×3ft
Turntable Tailswing 1.21m/4ft
Ground Clearance 0.28m/11in
Wheelbase 2.50m/8ft 2in
S.W.L(Unrestricted/Restricted) 300kg/661lb
Max. Occupants 2
Gradeability 40%
Travel Speed(Stowed) 6.0km/h / 3.7mph
Travel Speed(Raised) 1.1km/h / 0.7mph
Max. Working Slope X-5°/Y-5°
Turret Rotation 360°Continuous
Platform Rotation 180°
Jib Movement 132°
Main Boom Maximum Angle -5.5~75°
Turning Radius(Inside/Outside) 3.68m/5.54m / 12ft 1in/18ft 2in
Tyres 315/55D20
Overall Weight 12000kg/26455lb
Battery 80V/67.5Ah
Diesel Engine Kubota D1105/18.2kW
Emergency Power System 12V
Diesel Tank 115L/30gal
Hydraulic Tank 160L/42gal
