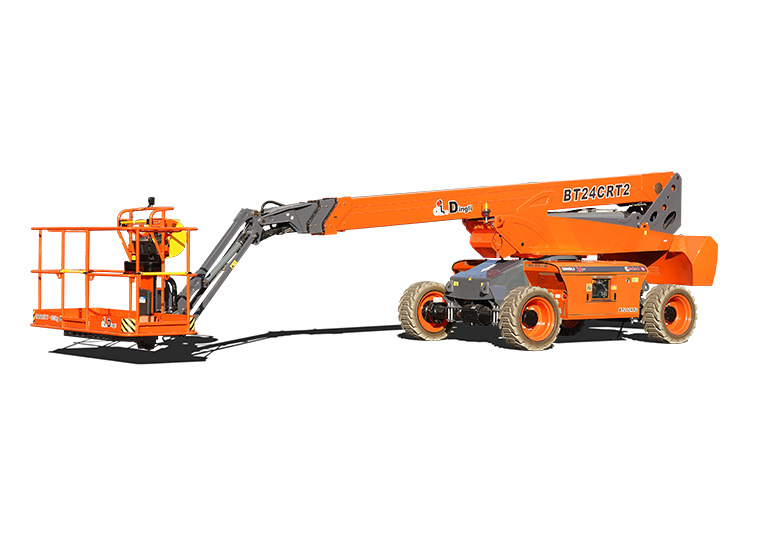

Dingli BT24CRT2

View Complete Details

Overview

● Developed by DINGLI’s domestic R&D Center;

● Modular design horizontally & vertically, 85% of the components common in the full range;

● Equipped with integrated axle, four-wheel drive & Four-Wheel Steering;

● Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable;

● Driveable at full height with large load of 300kg;

● Suitable for standard container transport;

● Equipped with 18.2kw low-power engine.

Specifications

Max. Working Height	24.20m/79ft 5in
Max. Platform Height	22.20m/72ft 10in
Max. Operating Range(+0.6m)	17.64m/57ft 10in
Max. Platform Range	17.04m/55ft 11in
Flatbed Transport Dimensions (L×W×H)	9.36m×2.50m×2.46m/30ft 8in×8ft 2in×8ft 1in
Standard Container Transport	All Applicable
Platform Size(Length×Width)	2.44m×0.91m/8ft×3ft
Turntable Tailswing	1.21m/4ft
Ground Clearance	0.28m/11in
Wheelbase	2.50m/8ft 2in
S.W.L(Unrestricted/Restricted)	300kg/661lb
Max. Occupants	2
Gradeability	40%
Travel Speed(Stowed)	6.0km/h / 3.7mph
Travel Speed(Raised)	1.1km/h / 0.7mph
Max. Working Slope	X-5°/Y-5°
Turret Rotation	360°Continuous
Platform Rotation	180°
Jib Movement	132°
Main Boom Maximum Angle	-5.5~75°
Turning Radius(Inside/Outside)	3.68m/5.54m / 12ft 1in/18ft 2in
Tyres	315/55D20
Overall Weight	12000kg/26455lb
Diesel Engine	Kubota D1105/18.2kW
Emergency Power System	12V
Diesel Tank	115L/30gal
Hydraulic Tank	160L/42gal
