LGMG A09JE( A30JE)
  • LGMG A09JE( A30JE)
  • LGMG A09JE( A30JE)
  • LGMG A09JE( A30JE)
Articulated Boom Lift

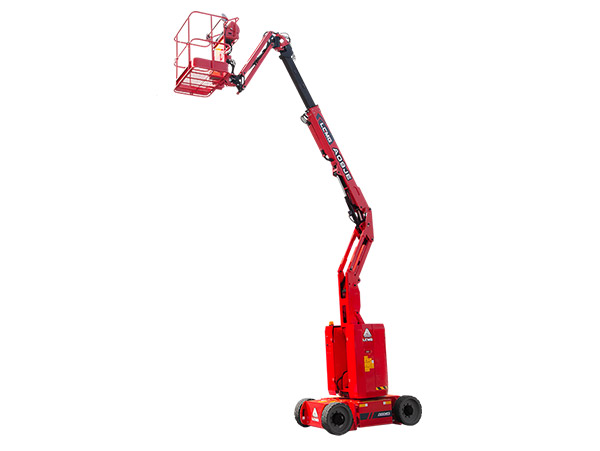

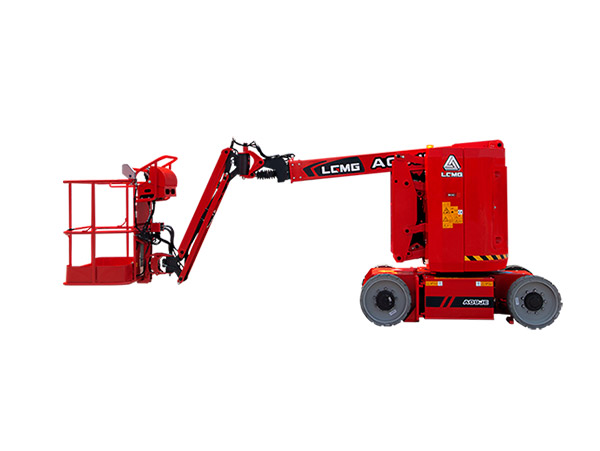

LGMG A09JE( A30JE)

  • 11m(36'1'')
    Work Height Max.
  • 230kg(507lbs)
    Platform Capacity
  • 1.19m(3'11'')
    Machine Width
View Complete Details
  • Overview
  • Specifications
Overview

LGMG A09JE articulating boom lift provides environmentally friendly, zero emission operation for both indoor and outdoor applications. With 1.19m ultra-compact chassis and 9m platform height, A09JE offers great ability to extend over obstacles in tight working areas.



l 1.19m (3'11") ultra-compact chassis means it fits through standard doorways and can operate more flexibly.

l The jib can swing ±90° horizontally and has a wider working range.

l Lifting and driving are powered by AC motors which are maintenance-free and offer improved safety.

l Proportional lift and drive controls delivers the best compound action.

l Dual joystick controller with precise control even for small movements.

Standard features

Proportional control

Emergency descent

Horn/Hour meter

Solid non-marking tires

AC drive motor

Over tilt protection system

AC lifting motor

Intelligent diagnostic system

Overload sensing system

Power switch

Auto-leveling platform

Full-height drive

Anti-collision protection

Telematic connector


Optional

AC power to platform

Biodegradable hydraulic oil

Telematics

Specifications
ModelsA09JEA30JE
MeasurementsMetricUS
Work Height Max.11m36'1''
Platform Height9m29'6''
Horizontal Outreach6.25m20'6''
Up and Over Height4.12m13'6''
Platform Length1.17m3'10''
Platform Width0.76m2'6'
Platform Capacity230kg507 lbs
A- Stowed Length5.46m17'11''
Lenth-Transport (jib tucked)
3.58m11'9''
B- Overall Width1.19m3'11
C- Stowed Height2m6'7''
Height-Transport2.52m8'3''
D-Wheelbase1.58m5'2''
E-Ground Clearance0.09m4''
Productivity
Max. Platform Occupant2(in) / 2(out)
Turntable Rotation355°355°
Drive Speed-Stowed5km/h3.1mph
Drive Speed-Raised0.65km/h0.4mph
Gradeability30%30%
Max. Wind Speed12.5m/s28mph
Turning Radius-Inside1.65m5'5''
Turning Radius-Outside3.15m10'4''
Max.Slope2.5°/4.5°2.5°/4.5°
Tires TypeSolid Non-marking
Tires Size560x180mm22''x7''
Ground Pressure, Tyres715 kPa103.7 psi
Power
Power Source48V  390Ah
Hydraulic System
Hydraulic Oil Volume17L4.5gal
Weight
Machine Weight (CE/ANSI)6700kg14770 lbs
