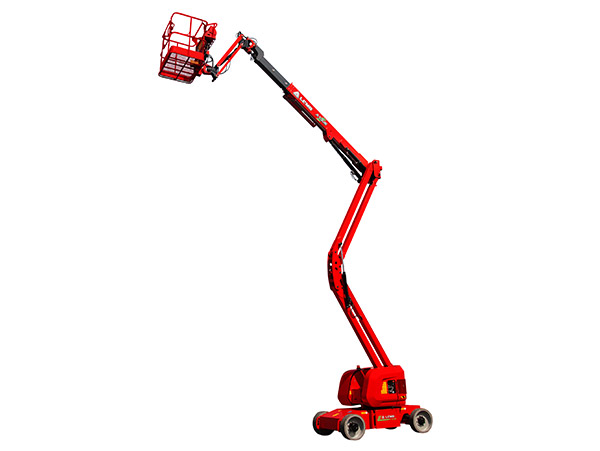

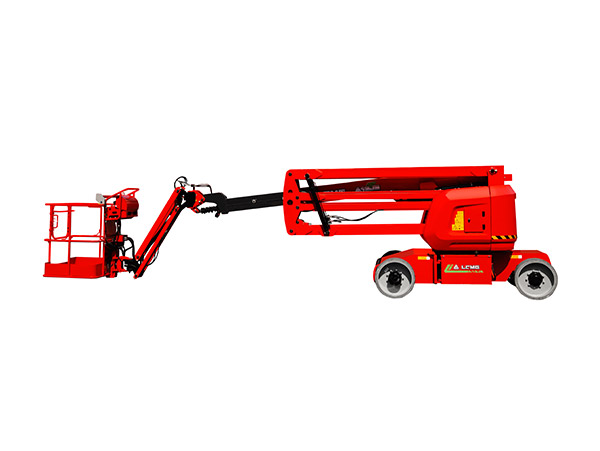

LGMG A13JE(A43JE)
  • LGMG A13JE(A43JE)
  • LGMG A13JE(A43JE)
Articulated Boom Lift

LGMG A13JE(A43JE)

  • 15m(49'3'')
    Work Height Max.
  • 200kg(440lbs)
    Platform Capacity
  • 1.5m(4'11'')
    Machine Width
View Complete Details
  • Overview
  • Specifications
Overview

LGMG A13JE articulating boom lifts can be equipped with large capacity lithium battery or lead-acid battery. Simple and reliable design make this machine easy to operate. With compact size and small tail swing design, A13JE is convenient for construction tasks in narrow places.


l Battery powered provides quiet,zero-emission and long battery duty cycle.

l Proportional control ensures smooth driving, precise positioning and comfortable operation.

l Self-leveling platform together with hydraulic platform rotation delivers exceptional

productivity.

l Intelligent self-diagnostic system for quick troubleshooting.

l Lead-acid battery, lithium battery(A13JE-Li)two options.

Standard features

Proportional control

Horn/Hour meter

AC drive motor

Telematic connector

Power switch

Drop bar entry

Telematics connector

Over tilt protection system

Overload sensing system

Intelligent diagnostic system

Anti-collision protection

Auto-leveling platform

Solid non-marking tires

Descent alarm with flashing beacon


Optional

AC power to platform

Telematics

Biodegradable hydraulic oil

Specifications
ModelsA13JEA43JE
MeasurementsMetricUS
Work Height Max.15m49'3''
Platform Height13m42'8''
Horizontal Outreach7.46m24'6''
Up and Over Height7.1m23'4''
Platform Length1.2m3'11''
Platform Width0.9m2'11''
Platform Capacity200kg440 lbs
A- Stowed Length6.7m22'
Length-Transport (jib tucked)5.76m18'11''
B- Overall Width1.5m4'11''
C- Stowed Height1.98m6'6''
Height-Transport2.66m8'9''
D-Wheelbase2.03m6'8''
E-Ground Clearance0.2m8''
Productivity
Max. Platform Occupancy2(in) / 2(out)
Turntable Rotation355°355°
Drive Speed-Stowed5km/h3.1mph
Drive Speed-Raised0.8km/h0.5mph
Gradeability30%30%
Max. Wind Speed12.5m/s28mph
Turning Radius-Inside2.2m7'3''
Turning Radius-Outside4.07m13'4''
Max.Slope3°/3°3°/3°
Tires TypeSolid Non-marking
Tires Size600x190mm24''x7''
Power
Lead-acid Battery48V 330Ah
Lithium Battery (A13JE-Li)                             48V 250Ah
Hydraulic System
Hydraulic Oil Volume             25L            6.6gal
Weight
Machine Weight (CE/ANSI)         6950kg         15322 lbs
