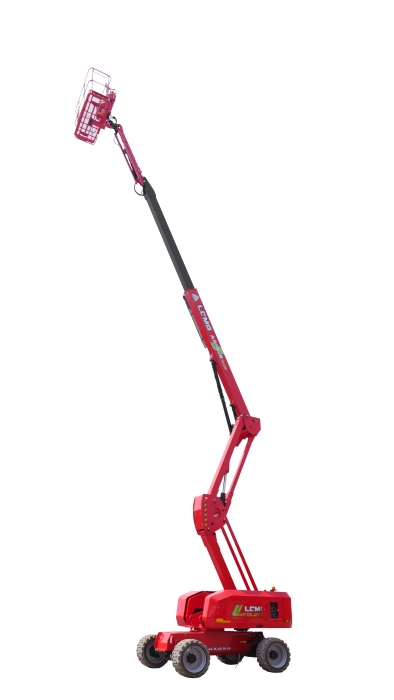

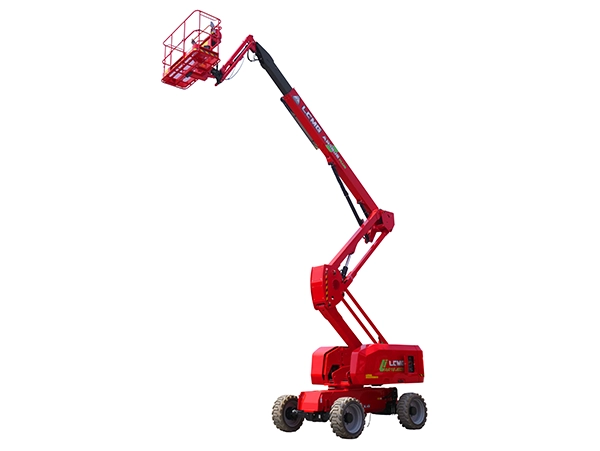

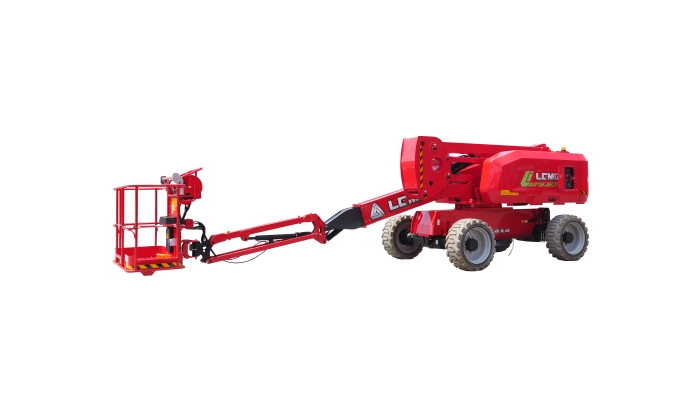

LGMG AR18JE(AR60JE)
  • LGMG AR18JE(AR60JE)
  • LGMG AR18JE(AR60JE)
  • LGMG AR18JE(AR60JE)
Articulated Boom Lift

LGMG AR18JE(AR60JE)

  • 20.12m(66')
    Work Height Max.
  • 260/350kg(573/772lbs)
    Platform Capacity
  • 2.5m(8'2'')
    Machine Width
View Complete Details
  • Overview
  • Specifications
Overview

● Li-battery powered provides quiet and zero emission.

● 260/350kg (573 /772 Ibs) dual-capacity design, 1.83m (6') triple entry platform.

● Oscillating, full-time floating axels allow the wheels to grip to the ground when driving on hard, uneven terrain.

● Integrated four-wheel-drive system provides strong power, smooth transmission, and 45% gradeability.

● Equipped with three steering modes and one-touch wheel alignment.

● Proportional lift and drive controls deliver smoother maneuvering, precise positioning and comfortable operation.

Standard features

Proportional control

Horn/Hour meter

Emergency stop device

Auto-leveling platform

Anti-collision protection

Over tilt protection system

Platform control cover

Overload sensing system

Intelligent diagnostic system

Full-height drive

Flashing beacons

Cylinder bellows

Platform tool box

Oscillating axle

Telematics connector

Foam-filled non-marking tires


Optional

Telematics

AC power to platform

Foam-filled tires

Solid non-marking tires

Solid tires

Half-height mesh platform

Auxiliary rail

Biodegradable hydraulic oil


Specifications
ModelsAR18JEAR60JE
MeasurementsMetricUS
Work Height Max.20.12m66'
Platform Height(Raised)18.12m59'5''
Horizontal Outreach10.9m35'9''
Up and Over Height7.7m25'3''
Platform Length1.83m6'
Platform Width0.76m2'6''
Platform Capacity260/350kg573/772 lbs
A-Stowed Length8.42m27'7''
Length-Transport (jib tucked)6.42m21'1"
B-Overall Width2.5m8'2''
C-Stowed Height2.47m8'1''
Height-Transport3.07m10'1''
D-Wheelbase2.51m8'3''
E-Ground Clearance0.4m1'4''
Productivity
Max. Platform Occupancy2(unrestricted) / 3(restricted)
Turntable Rotation360°360°
Drive Speed-Stowed5km/h3.1mph
Drive Speed-Raised0.8km/h0.5mph
Gradeability45%45%
Max. Wind Speed12.5m/s28mph
Turning Radius-Inside1.9m6'3''
Turning Radius-Outside3.9m12'10''
Max.Slope4°/4°4°/4°
Tire TypeFoam-filled non-marking
Tire Size355/55D 625
Power
Power Source80V 228Ah
Hydraulic System
Hydraulic Oil Volume90L23.8gal
Weight
Machine Weight (CE/ANSI)8150kg17968 lbs
