Zoomlion ZA10RJE
  • Zoomlion ZA10RJE
Articulating Boom Lift

Zoomlion ZA10RJE

  • 11.55m|37ft 11in
    Work Height
  • 9.55m|31ft 4in
    Platform Height
  • 6.85m|22ft 5in
    Horizontal Outreach
View Complete Details
  • Overview
  • Specifications
Overview

Electric articulating boom lifts deliver eco-friendly footprint, precise maneuvering, greater endurance and extreme flexibility.

CE/ANSI/CSA Certified





Center layout, great structural rigidity, and small boom deflection

Advanced dual control system (valve control + pump control) offers a energy-saving, smooth and efficient control

±90° Jib rotation offers great up and over height

Compact dimension of 1.19m (3ft 11in) stowed width, ideal for narrow working conditions

Tubular batteries feature long working time and lifespan, and easy for maintenance


Specifications
Work Height 11.55m|37ft 11in
Platform Height 9.55m|31ft 4in
Horizontal Outreach 6.85m|22ft 5in
Up and Over Height 4.6m|15ft 1in

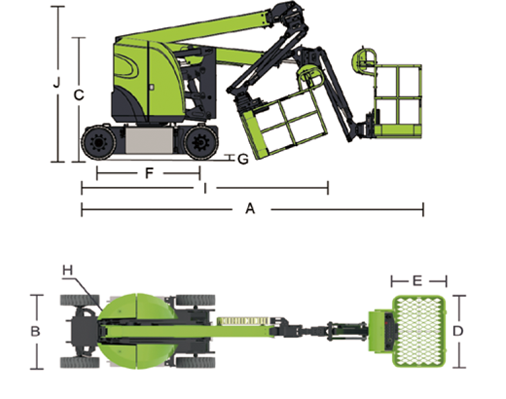

A - Stowed Length 5.5m|18ft 1in
B - Stowed Width 1.19m|3ft 11in
C - Stowed Height 1.98m|6ft 6in
D - Platform Length 1.17m|3ft 10in
E - Platform Width 0.76m|2ft 6in
Jib length 1.24m|4ft 1in
F - Wheelbase 1.65m|5ft 5in
G - Ground Clearance 0.1m|4in
I - Transport Length (Jib tucked under) 3.95m|13ft
J - Transport Height (Jib tucked under) 2.45m|8ft
Platform Capacity 230kg|510lb
Drive Speed 5km/h|3.11mph
Gradeability 35% (19°)|35% (19°)
Turning Radius (Inside) 1.7m|5ft 7in
Turning Radius (Outside) 3.25m|10ft 8in
Turntable Swing 355° non-continuous|355° non-continuous
Jib Swing ±90°|±90°
Platform Rotation ±90°|±90°
H-Tail Swing 0m|0m
Max. Wind Speed 12.5m/s|28mph
Battery 24×2V/330Ah|24×2V/330Ah
Charger 48V/35A|48V/35A
Drive Motor AC 32V/3.3kW|AC 32V/4.4hp
Lift Motor DC 48V/4.5kW|DC 48V/6hp
Auxiliary Power Electric pump|Electric pump
Hydraulic Tank Capacity 15L|3.96(us gal)
Type 22X7X17.75 seamless tire|22X7X17.75 seamless tire
Gross 6550kg|14440lb
