Zoomlion ZA14NJE
  • Zoomlion ZA14NJE
Articulating Boom Lift

Zoomlion ZA14NJE

  • 16m|52ft 6in
    Work Height
  • 14m|45ft 11in
    Platform Height
  • 8.14m|26ft 8in
    Horizontal Outreach
View Complete Details
  • Overview
  • Specifications
Overview

Electric articulating boom lifts deliver eco-friendly footprint, precise maneuvering, greater endurance and extreme flexibility.

CE/ANSI/CSA Certified





Center layout, great structural rigidity, and small boom deflection

Advanced dual control system (valve control +pump control) offers a energy-saving, smooth

and efficient control

Accurate and efficient traveling AC drive system provides strong power and stable control, motor maintenance-free

Independent auxiliary power system for more secure application

Large capacity tube battery + fast charger forlonger battery lift of 5 years and working time

(ZA14NJE Only)

Large-capacity lithium battery featureslong-lasting battery life of 8 years and 5-year warranty, the whole life cycle is mainte-nance-free (ZA14NJE-Li Only)

IStandard fast charger for short charging time

of 7 hours (ZA 14NJE-Li Only)

Accurate and efficient traveling AC drivesystem provides strong power and stable control, motor maintenance-free


Specifications

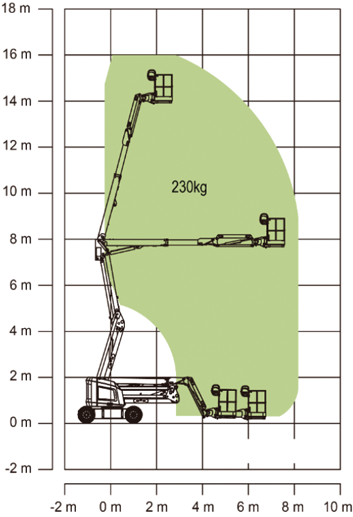

Work Height 16m|52ft 6in
Platform Height 14m|45ft 11in
Horizontal Outreach 8.14m|26ft 8in
Up and Over Height 7.74m|25ft 5in

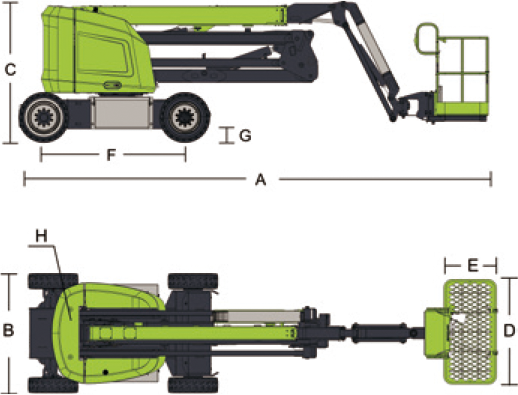

A - Stowed Length 6.5m|21ft 4in
B - Stowed Width 1.75m|5ft 9in
C - Stowed Height 2m|6ft 7in
D - Platform Length 1.52m|4ft 12in
E - Platform Width 0.76m|2ft 6in
F - Wheelbase 2.05m|6ft 9in
G - Ground Clearance 0.20m|8in
Platform Capacity 230kg|510 lb
Drive Speed 5.4km/h|4 mph
Gradeability 30% (17°)|30% (17°)
Turning Radius (Inside) 0.79m|2ft 7in
Turning Radius (Outside) 3.15m|10ft 4in
Turntable Swing 360°non-continuous|360° non-continuous
Platform Rotation ±90°|±90°
H-Tail Swing 0.2m|8in
Max. Working Slope 3/4°|3/4°
Max. Wind Speed 12.5m/s|28mph
Battery 2×24V/320Ah|2×24V/320Ah
Charger 48V/35A|48V/35A
Drive Motor AC 32V/3.3kw|AC 32V/4hp
Lift Motor AC 32V/7kw|AC 32V/10hp
Auxiliary Power 12V DC Electrical pump|12V DC Electrical pump
Hydraulic Tank Capacity 30L|7.9 (us gal)
Type 250-15 Solid tire240/55D17.5 Foam-filled tire|250-15 Solid tire240/55D17.5 Foam-filled tire
Gross 6700kg|14770 lb
