Zoomlion ZA32J
  • Zoomlion ZA32J
Articulating Boom Lift

Zoomlion ZA32J

  • 33.85m|111ft 1in
    Work Height
  • 31.85m|104ft 6in
    Platform Height
  • 21.17m|69ft 5in
    Horizontal Outreach
View Complete Details
  • Overview
  • Specifications
Overview

Diesel powered articulating boom lifts for precise position and extreme flexibility.

CE Certified






Provide heavy lifting of 250kg load for 28% higher efficiency

Build-in multiple pressure control leveling system to enhance stability

Deadweight Lowering System for smooth operation and energy efficiency

Outstanding below ground reach of 5.7m

Precise load sensing system to improve overload safety operations


Specifications
Work Height 33.85m|111ft 1in
Platform Height 31.85m|104ft 6in
Horizontal Outreach 21.17m|69ft 5in
Up and Over Height 14.52m|47ft 8in

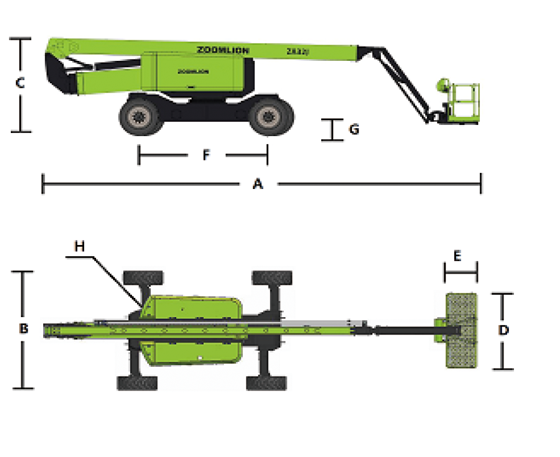

A - Stowed Length 12.6m|41ft 4in
B - Stowed Width 2.49m|8ft 2in
C - Stowed Height 3.1m|10ft 2in
D - Platform Length 2.44m|8ft
E - Platform Width 0.91m|3ft12in
Jib Length 2.44m|8ft
F - Wheelbase 3.81m|12ft 6in
G - Ground Clearance 0.42m|1ft 5in
Platform Capacity 250kg|550 lb
Drive Speed 5.2km/h|3.23 mph
Gradeability 45%|45%
Axles Oscillation 0.2m|8in
Turning Radius (Inside) 7.7/3.3m|25ft 3in/10ft 10in
Turning Radius (Outside) 10.8/8.2m|35ft 5in/26ft 11in
Turntable Swing 360° continuous|360° continuous
Platform Rotation ±90°|±90°
H-Tail Swing 0|0
Max. Wind Speed 12.5m/s|28mph
Diesel Engine Cummins QSF2.8 54kw/2400rpm Kubota V2607 55.4kw/2700rpm|Cummins QSF2.8 54kw/2400rpm Kubota V2607 55.4kw/2700rpm
Fuel Tank Capacity 200L|52.8 (us gal)
Auxiliary Power 12V|12V
Control Voltage 12V|12V
Hydraulic System Capacity 300L|79.3 (us gal)
Hydraulic Tank Capacity 200L|52.8 (us gal)
Type 445/50D710 Foam-filled Tires|445/50D710 Foam-filled Tires
Gross 19200kg|42328 lb
