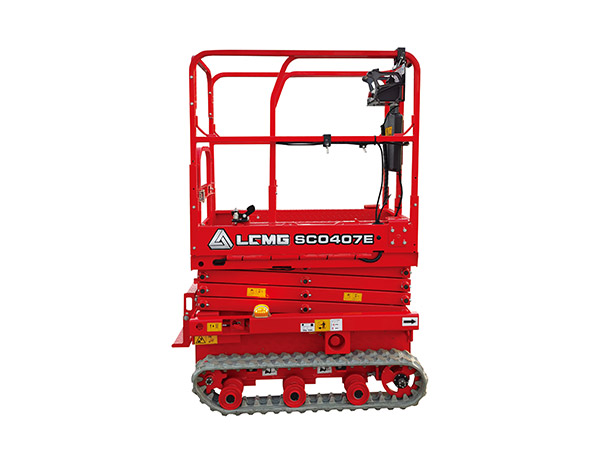

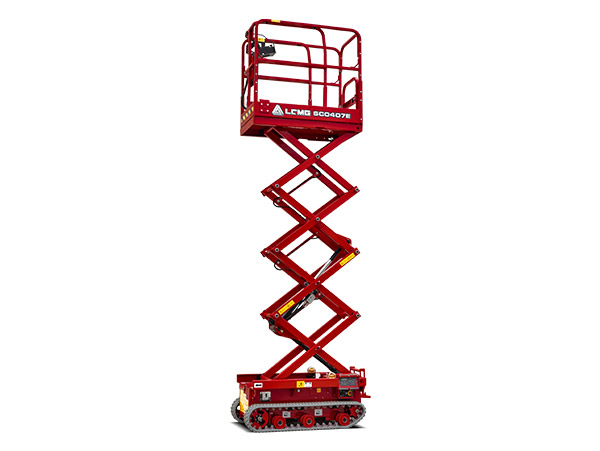

LGMG SC0407E(SC1532E)
  • LGMG SC0407E(SC1532E)
  • LGMG SC0407E(SC1532E)
Crawler Scissor Lift

LGMG SC0407E(SC1532E)

  • 6.5m(21'4'')
    Work Height Max.
  • 200kg(441lbs)
    Platform Capacity
  • 0.78m(2'7'')
    Machine Width
View Complete Details
  • Overview
  • Specifications
Overview

LGMG’s crawler scissor lift is easy to drive on slopes or uneven ground, and has excellent performance across obstacles, making it ideal for harsh construction environments.


l Compact in size with 360° turning on the spot

l Single joystick controller as standard, dual joysticks as optional

l Large-screen ECU, easy to operate, user friendly.

l Pull out battery tray

Standard features

Proportional control

Emergency stop device

Emergency descent

Self-lock entry gate

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

All motions alarm

Intelligent diagnostic system

Foldable ladder

Non-marking crawlers

Maintenance-free battery

Single joystick



Options

AC power to platform

Voice alarm system

Telematics

Dual joystick controller

Biodegradable hydraulic oil

Specifications
MODELSSC0407ESC1532E
MeasurementsMetricImperial
Working Height Max. 6.5m21'4''
A-Platform Height-Raised4.5m14'9''
B-Platform Length  1.29m4'3''
C-Platform Width  0.7m2'4''
D-Overall Length1.47m4'10''
E-Overall Width0.78m2'7''
F-Overall Height-Guardrails Up1.99m6'6''
G-Extension Deck0.6m2'
H-Wheelbase0.95m3'1''
Ground Clearance118mm5''
PRODUCTIVITY
Platform Occupants Max. (in/out)1/0
Platform Capacity200kg441 lbs
Platform Capacity-Extension Deck115kg254 lbs
Gradeability-Stowed25%25%
Min. Turning RadiusTurning on the spot
Raise/Lower Speed20s/20s
POWER
Power Source24V (2x12V)130Ah, AGM
HYDUALIC SYSTEM
Hydraulic Oil Capacity4L 1gal
WEIGHT
Machine Weight (CE/ANSI) 800kg1764 lbs
