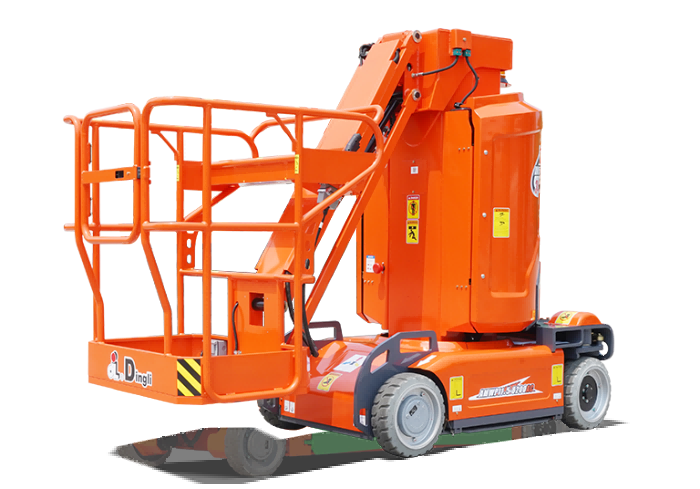

Dingli AMWP11.5-8200AC
  • Dingli AMWP11.5-8200AC
Mast Lift

Dingli AMWP11.5-8200AC

  • 11.20m/36ft 9in
    Max. Working Height
  • 9.20m/30ft 2in
    Max. Platform Height
  • 2.62m/8ft 7in
    Overall Length
View Complete Details
  • Overview
  • Specifications
Overview

● Equipped with fully sealed AC system, which is maintenance-free, more waterproof, more efficient and safer, combined with maintenance-free batteries to realize the whole machine maintenance-free.

● Electric driven, with light structure and flexible operation.

● Equipped with maintenance-free battery

● Driveable at full height, specialized for narrow spaces in warehouses, supermarkets, hotels and airports.

● With 3 meters horizontal extension, large range of horizontal outreach.

● Equipped with the unique pothole protection system for higher safety.

● Maximum working height is 1.20m higher than equivalent products in the industry.

● Equipped with special fork loading holes for convenient transportation.

● Platform basket width increased, with upgrade of full-height gate tyo realize access without bending, more convenient.

Specifications
Max. Working Height 11.20m/36ft 9in
Max. Platform Height 9.20m/30ft 2in
Overall Length 2.62m/8ft 7in
Overall Width 1.00m/3ft 3in
Overall Height 1.99m/6ft 6in
Platform Size(Length×Width) 0.69m×0.93m/2ft 3in×3ft 1in
Ground Clearance(Stowed) 0.07m/3ft 3in
Ground Clearance(Raised) 0.02m/0.7in
Wheelbase 1.22m/4ft
Turning Radius(Inside/Outside) 0m/1.8m / 0in/5ft 11in
Tyres φ381×127mm / φ15in×5in
S.W.L 200kg/440lb
Max. Occupants(Inside/Outside) 2/1
Gradeability 25%
Max. Working Slope 2.5/2.5
Turret Rotation 345°
Jib Movement +70°/-60°
Travel Speed(Stowed) 4.5km/h / 2.80mph
Travel Speed(Raised) 0.5km/h / 0.31mph
Up/Down Speed 42/38sec
Overall Weight 2970kg/6547lb
Battery 24V/200Ah
Integrated Charger 24VDC/30A
Driving Motor 2x15VAC/0.87kW
Lifting Motor 15VAC/3kW
