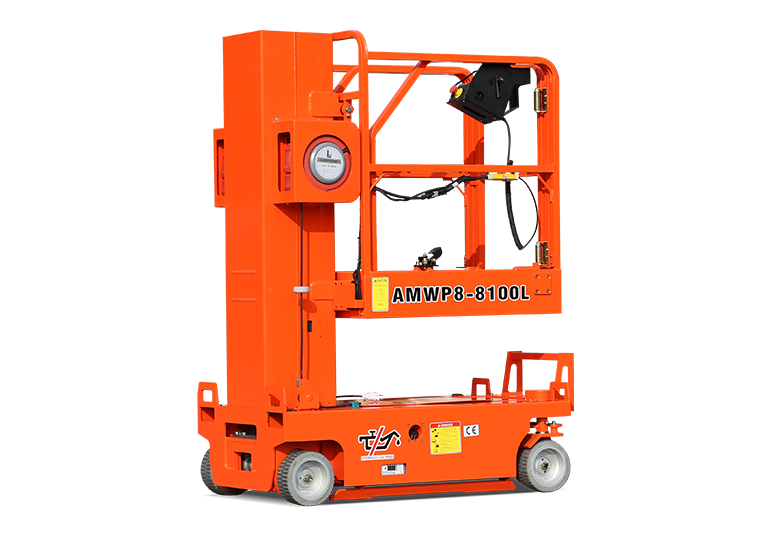

Dingli AMWP8-8100L
  • Dingli AMWP8-8100L
Mast Lift

Dingli AMWP8-8100L

  • 7.60m/24ft 11in
    Max. Working Height
  • 5.60m/18ft 8in
    Max. Platform Height
  • 1.60m/5ft 3in
    Overall Length
View Complete Details
  • Overview
  • Specifications
Overview

● Electric lifting push rod replaces traditional hydraulic cylinder, "oil-free" makes energy saving and environmental protection

● Equipped with brush less DC motor, the whole machine is maintenance-free

● No noise, zero emission, no pollution, energy saving and environmental protection

● Light structure, flexible movement


Specifications
Max. Working Height 7.60m/24ft 11in
Max. Platform Height 5.60m/18ft 8in
Overall Length 1.60m/5ft 3in
Overall Width 0.80m/2ft 7in
Overall Height 1.99m/6ft 6in
Platform Size(Length×Width) 1.00m×0.76m/3ft 3in×2ft 6in
Platform Extension Size 0.50m/1ft 8in
Ground Clearance(Stowed) 0.06m/2in
Ground Clearance(Raised) 0.014m/1in
Wheelbase 1.21m/4ft
Turning Radius(Inside/Outside) 0.60m/1.80m / 2ft/5ft 11in
Tyres φ230×100mm
S.W.L 227kg/500lb
S.W.L On Extension 113kg/249lb
Max. Occupants(Inside/Outside) 1/0
Gradeability 25%
Max. Working Slope X-1.5°/Y-3°/ X-1.5°/Y-3°
Travel Speed(Stowed) 3.6km/h / 2.20mph
Travel Speed(Raised) 0.5km/h / 0.30mph
Up/Down Speed 32/32sec
Overall Weight 1380kg/3042lb
Battery 2×12V/115Ah
Integrated Charger 24V/15A
Driving Motor 2×24V/0.68kW
Lifting Motor 24V/1.4kW
