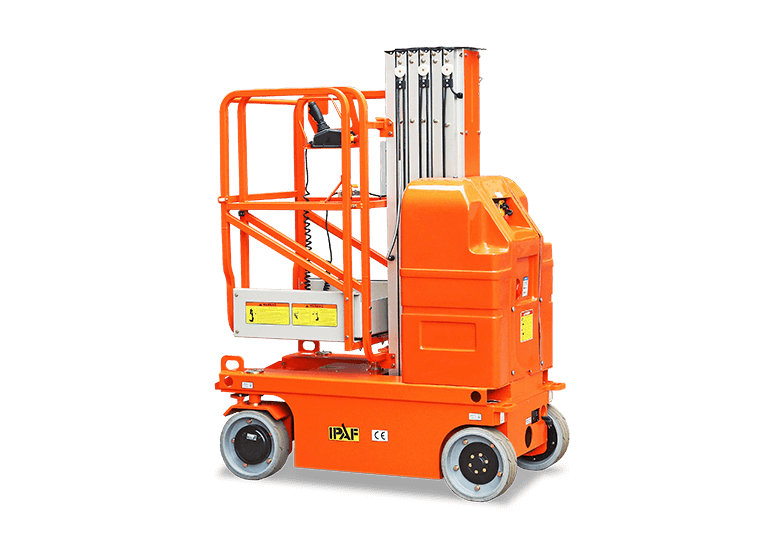

Dingli AMWP9.5-1200
  • Dingli AMWP9.5-1200
Mast Lift

Dingli AMWP9.5-1200

  • 9.50m/31ft 2in
    Max. Working Height
  • 7.50m/24ft 7in
    Max. Platform Height
  • 1.44m/4ft 9in
    Overall Length
View Complete Details
  • Overview
  • Specifications
Overview

● Suitable for warehouse, supermarket, hotel, airport and other narrow space environment

● Onboard diagnostic system and cylinder holding valve

● Automatic pothole protection

● Can drive at full height



Specifications
Max. Working Height 9.50m/31ft 2in
Max. Platform Height 7.50m/24ft 7in
Overall Length 1.44m/4ft 9in
Overall Width 0.8m/0.8m= 2ft 7in
Platform Size(Length×Width) 0.75m×0.73m/2ft 5in
Ground Clearance(Stowed) 0.06m/2in
Ground Clearance(Raised) 0.014m/0.5in
Wheelbase 1.22m/4ft
Turning Radius(Inside/Outside) 0m/1.55m / 0in/5ft 1in
Tyres φ323×100mm / φ13in×4in
S.W.L 136kg/299lb
Max. Occupants(Inside/Outside) 1
Gradeability 25%
Max. Working Slope 1.5°/3°
Travel Speed(Stowed) 4.0km/h / 2.50mph
Travel Speed(Raised) 0.6km/h / 0.37mph
Up/Down Speed 29/32sec
Overall Weight 1535kg/3384lb
Battery 24V/115Ah
Integrated Charger 24VDC/15A
Driving Motor 2x24VDC/1kW
Lifting Motor 24VDC/2kW
