LGMG M0810JE(M2640JE)
  • LGMG M0810JE(M2640JE)
  • LGMG M0810JE(M2640JE)
  • LGMG M0810JE(M2640JE)
Mast Lift

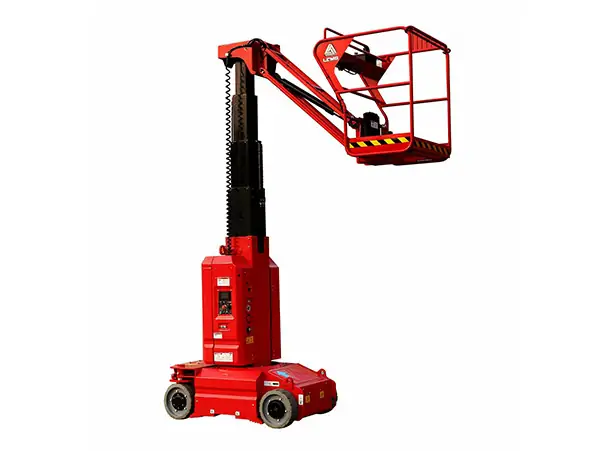

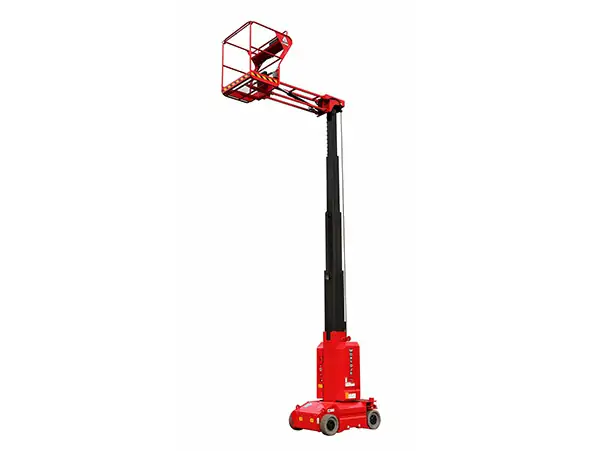

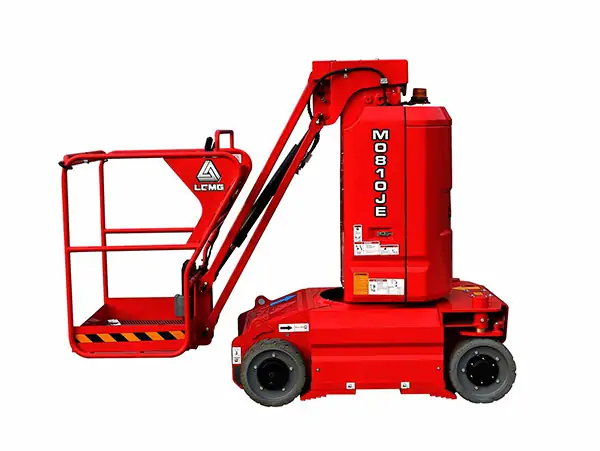

LGMG M0810JE(M2640JE)

  • 10m(32'10'')
    Work Height Max.
  • 200kg(440lbs)
    Platform Capacity
  • 1m(3'3'')
    Machine Width
View Complete Details
  • Overview
  • Specifications
Overview

LGMG's new vertical mast lift M0810JE has good maneuverability and is easy to operate in tight spaces. With a 3.2m horizontal outreach, a larger working envelope, and a highly efficient electric drive, it is more productive with longer working hours. Its compact size and light weight allow easy transport.


l Compact size and light-weight, zero tail-swing, easy to operate and transport.

l Eco-friendly, zero-emission, highly efficient electric drive, more productive with longer

working hours.

l Excellent “up-and-over” capability, 3.2m (10’ 6” ) horizontal outreach and larger

working envelope.

l Easy to maintain, reducing cost.


Standard features
Brake release

Proportional control

All motions alarm

Emergency descent

Tilt alarm

Full-height drive

Horn/Hour meter

Descent alarm with flashing beacon

Charge protection system

Emergency stop device

Solid non-marking tires

Manual emergency pump

Telematics connector


Optional
Telematics
AC power to platform

Anti-collision protection

Biodegradable hydraulic oil

Specifications
MODELSM0810JEM2640JE
MeasurementsMetricImperial
Working Height Max.10 m32'10''
Platform Height (Raised)8 m26'3''
Horizontal Outreach3.2 m10'6''
Up and Over Clearance Max.6.6 m21'8''
Platform Size (LxW)0.98x0.72 m39''x 28''
A-Overall Length   2.6 m8'6''
B-Overall Width1 m3'3''
C-Overall Height (Stowed)1.99 m6'6''
D-Wheelbase1.2 m3'11''
E-Ground Clearance0.1 m4''
PRODUCTIVITY
Max. Platform Occupancy2 (in) / 1 (out)
Platform Capacity200 kg440 lbs
Drive ModeRear Wheel
BrakesRear Wheel
Turnable Rotation345°
Max. Drive Speed (Stowed)5 km/h3 mph
Max. Drive Speed (Raised)0.43 km/h0.27 mph
Gradeability25%
Tailswing00
Tire Size380x130 mm15''x5''
Ground Pressure, Tyres1353 kPa196.2 psi
POWER
Power Source24 V 250 Ah, FLA
HYDRAULIC SYSTEM
Hydraulic Oil Capacity6.5 L1.7 gal
WEIGHT
Machine Weight (CE)2720 kg5997 lbs
