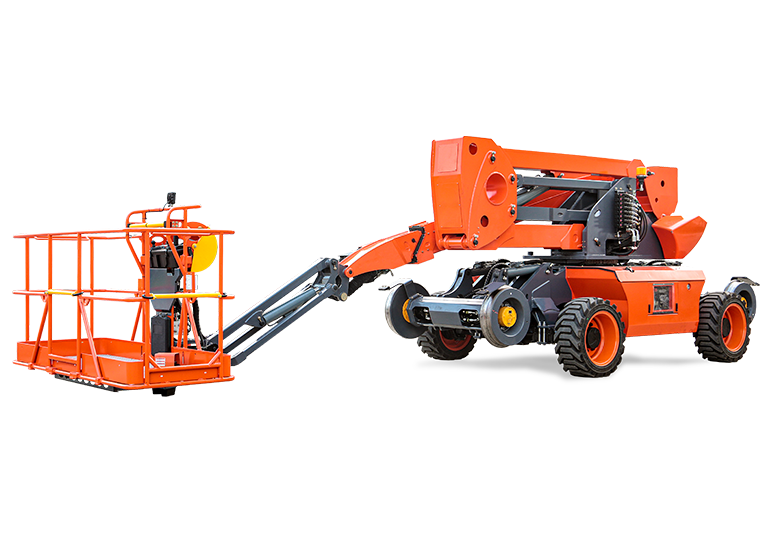

Dingli BA16RR
  • Dingli BA16RR
Other Aerial Work Machinery

Dingli BA16RR

  • the road/the rail
    Mode
  • 16.03m/16.23m
    Max. Working Height
  • 14.03m/14.23m
    Max. Platform Height
View Complete Details
  • Overview
  • Specifications
Overview

● The maximum speed of the track 16km/h

● The whole part moves down design

● All parts are located on both sides of the chassis for convenient maintenance

● Can be transported in containers

Specifications
Mode the road/the rail
Max. Working Height 16.03m/16.23m
Max. Platform Height 14.03m/14.23m
Up And Over Height 6.44m/6.61m
Max. Horizontal Reach 8.99m
Overall Length(Stowed) 8.69m/8.28m
Overall Width(Stowed) 2.50m
Overall Height(Stowed) 2.46m/2.65m
Jib Length 1.50m
Platform Size(Length×Width) 2.44×0.90m
Wheelbase 2.40m/3.38m
Turntable Tailswing 0m/0.43m
The Height Difference Between Railway Wheels And Road Wheels 1.435m
Ground Clearance 0.29m/0.13m
Tires/Railway Wheels Diameter 315/55D20 / 0.58m
Max. Railway Drop Height 160mm
Turning Radius(Inside/Outside) 1.65/2.62m / 40m
S.W.L 400Kg/320Kg
Max. Gradient 30% / 0
Max. Working Slope 5° / 0
Approach Angle 22.6° / 0
Departure Angle 22.6° / 0
Turret Rotation 360° Continuous
Platform Rotation 180°
Jib Movement 130°
Railway Axle Movement 0~70°
Overall Weight 13120Kg
Engine Deutz D2.9 L4 36.4kW
Hydraulic Oil Tank 150L
Diesel Tank 135L
