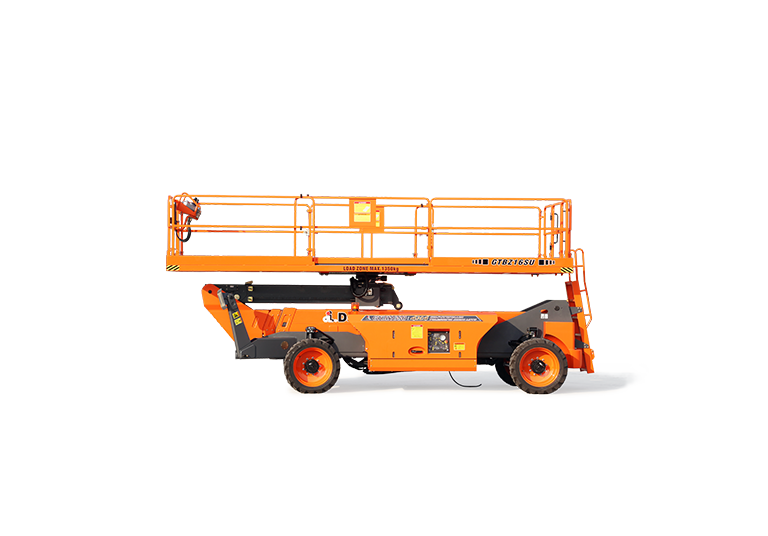

Dingli GTBZ16SU
  • Dingli GTBZ16SU
Other Aerial Work Machinery

Dingli GTBZ16SU

  • 15.60m/51ft 2in
    Max. Working Height
  • 13.60m/44ft 7in
    Max. Platform Height
  • 8.46m/27ft 9in
    Max. Front Outreach(Outriggers Extension)
View Complete Details
  • Overview
  • Specifications
Overview

● Equipped with bridge integrated four-wheel drive system

● Super load 1800kg

● The whole part moves down design, the center of gravity moves down

● All parts are located on both sides of the chassis for convenient maintenance

● 6.70mx2.24m super-large working platform

● One key leveling


Specifications
Max. Working Height 15.60m/51ft 2in
Max. Platform Height 13.60m/44ft 7in
Max. Front Outreach(Outriggers Extension) 8.46m/27ft 9in
Max. Rear Outreach(Outriggers Extension) 4.66m/15ft 4in
Max. Platform Slide 1.51m/4ft 11in
Overall Length 7.35m/24ft 1in
Overall Width(Stowed) 2.50m/8ft 2in
Overall Width(Transport) 2.31m/7ft 7in
Overall Height(Rails Up) 3.55m/11ft 8in
Overall Height(Rails Down) 2.62m/8ft 7in
Overall Height(Transport) 2.37m/7ft 9in
Platform Size(Length×Width) 6.70m×2.24m/22ft×7ft 4in
Ground Clearance 0.32m/1ft 1in
Wheelbase 3.80m/12ft 6in
Turning Radius(Inside/Outside) 2.45m/5.50m / 8ft/18ft 1in
Tyres 355-55/D625
S.W.L 1800kg/3968lb
Max. Goods Loading 13350kg/29431lb
Max. Occupants 4
Platform Swing Angle +/-90°
Gradeability 40%
Travel Speed(Stowed) 6.0km/h / 3.70mph
Travel Speed(Raised) 0.9km/h / 0.56mph
Max. Working Slope 3°/5°
Chassis Leveling 10°
Overall Weight 13350kg/29431lb
Diesel Engine Deutz TD2.9 L4 55.4kW/2600rpm
Hydraulic Tank 216L/57gal
