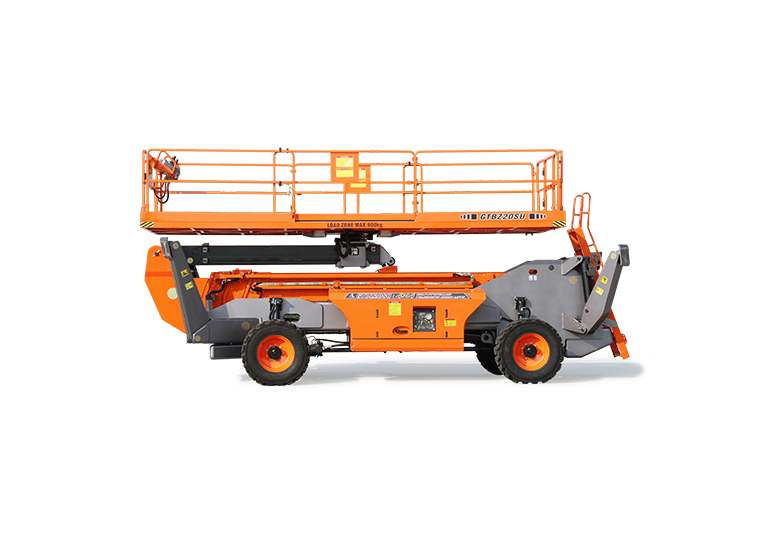

Dingli GTBZ20SU
  • Dingli GTBZ20SU
Other Aerial Work Machinery

Dingli GTBZ20SU

  • 20.30m/66ft 7in
    Max. Working Height
  • 18.30m/60ft
    Max. Platform Height
  • 11.70m/38ft 5in
    Max. Front Outreach(Outriggers Extension)
View Complete Details
  • Overview
  • Specifications
Overview

● Equipped with bridge integrated four-wheel drive system

● Super load 1350kg

● The whole part moves down design, the center of gravity moves down

● All parts are located on both sides of the chassis for convenient maintenance

● 6.70mx2.24m super-large working platform

● One key leveling



Specifications
Max. Working Height 20.30m/66ft 7in
Max. Platform Height 18.30m/60ft
Max. Front Outreach(Outriggers Extension) 11.70m/38ft 5in
Max. Rear Outreach(Outriggers Extension) 4.09m/13ft 5in
Max. Platform Slide 2.19m/7ft 2in
Overall Length 7.68m/25ft 2in
Overall Width(Stowed) 2.46m/8ft 1in
Overall Width(Transport) 2.30m/7ft 7in
Overall Height(Rails Up) 3.80m/12ft 6in
Overall Height(Rails Down) 2.89m/9ft 6in
Overall Height(Transport) 2.59m/8ft 6in
Platform Size(Length×Width) 6.70m×2.24m/22ft×7ft 4in
Ground Clearance 0.37m/1ft 3in
Wheelbase 4.00m/13ft 1in
Turning Radius(Inside/Outside) 3.24m/4.97m / 10ft 8in/16ft 4in
Tyres 385-65/22.5
S.W.L 1350kg/2976lb
Max. Goods Loading 900kg/1984lb
Max. Occupants 4
Platform Swing Angle +/-90°
Gradeability 40%
Travel Speed(Stowed) 6.0km/h / 3.70mph
Travel Speed(Raised) 0.9km/h / 0.56mph
Max. Working Slope 3°/5°
Chassis Leveling 10°
Overall Weight 18000kg/39683lb
Diesel Engine Deutz TD2.9 L4 55.4kW/2600rpm
Hydraulic Tank 216L/57gal
