Zoomlion ZX23AE
  • Zoomlion ZX23AE
Spider Lifts

Zoomlion ZX23AE

  • 23m|75ft 6in
    Work Height
  • 21m|68ft 11in
    Platform Height
  • 10.5m|34ft 5in
    Horizontal Outreach
View Complete Details
  • Overview
  • Specifications
Overview

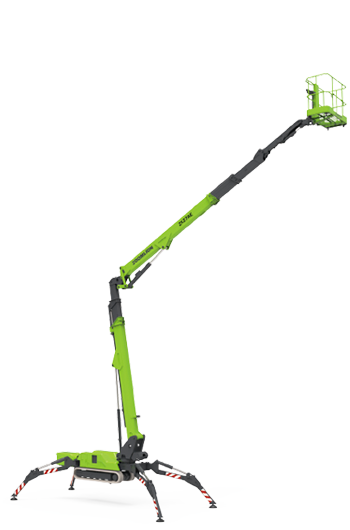

Lithium-powered spider lift is equiped with self-leveling outriggers and crawler rubber track, allowing it boosting productivity through rough terrain and on steep slopes.

CE Certified







0.89m ultra-narrow width, quick-change work platform, easy access to compact spaces

Pure lithium-ion battery power features environmental protection and quiet operation

Accurate and efficient permanent magnet synchronous motor provides strong power and stable control

Non-marking rubber track suitable for all terrains

Central layout, great structural rigidity, and small boom deflection

Bus hydraulic valve control system offers stable and reliable movement

Advanced energy management system supports synchronous power supply from external power supply, providing long-lasting battery life

Specifications

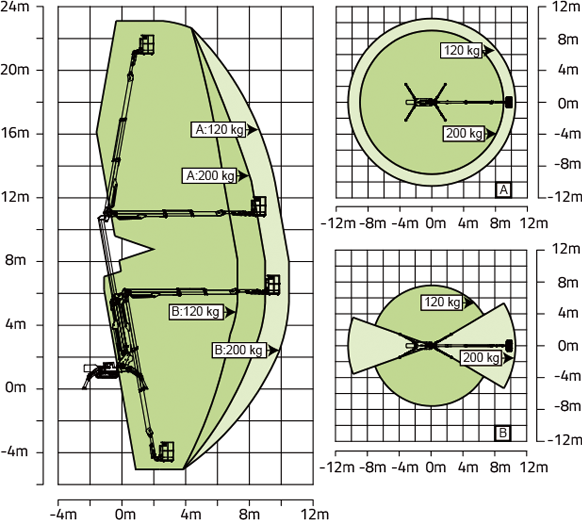

Work Height 23m|75ft 6in
Platform Height 21m|68ft 11in
Horizontal Outreach 10.5m|34ft 5in
Up and Over Height 10.87m|35ft 8in
Below Ground Reach 4.4m|14ft 5in

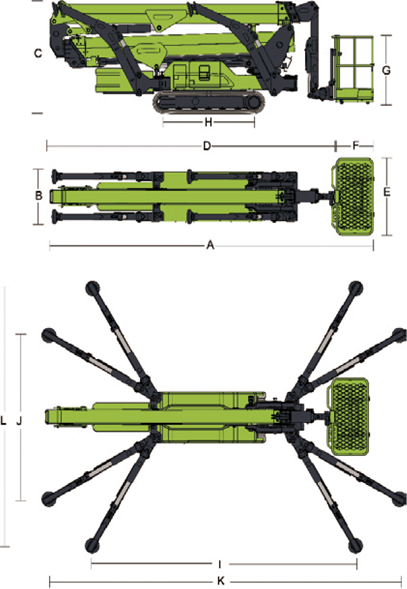

A - Stowed Length (w/ platform) 5.44m|17ft 10in
D - Stowed Length (w/o platform) 4.98m|16ft 4in
B - Stowed Width 0.89m|2ft 11in
C - Stowed Height 1.99m|6ft 6in
E - Platform Length 1.4m|4ft 7in
F - Platform Width 0.7m|2ft 4in
G - Platform Height 1.25m|4ft 1in
H - Crawler Size (Length×Width) 1.124m×0.23m|3ft 9in×9in
I - Max Length w/ Outrigger Extending (Standard) 3.85m|12ft 8in
L - Max Width w/ Outrigger Extending (Standard) 3.85m|12ft 8in
K - Max Length w/ Outrigger Extending (Narrow) 5m|16ft 5in
J - Max Width w/ Outrigger Extending (Narrow) 2.6m|8ft 6in
Outrigger Pad Size (Diameter) 0.26m|10ft
Approach Angle 25°|25°
Depature Angle 27°|27°
Platform Capacity 200kg/120kg(restricted)|440lb/265lb (restricted)
Drive Speed 2km/h|1.25mph
Gradeability 16.7°/30%|16.7°/30%
Allowable Tilting Angle When Driving 10°/17%|10°/17%
Turntable Swing 400° non-continuous|400° non-continuous
Platform Rotation ±90°|±90°
H-Tail Swing 0m|0m
Max Leveling Angle 16°|16°
Max Wind Speed 12.5m/s|28 mph
Battery 315Ah 48V|315Ah 48V
Charger 48V/60A|48V/60A
Drive Motor Permanent magnetsynchronous motor 48V|Permanent magnetsynchronous motor 48V
Lift Motor Permanent magnetsynchronous motor 48V|Permanent magnetsynchronous motor 48V
Auxiliary Power Electric pump|Electric pump
Hydraulic Tank Capacity 50L|13.2 us gal
Crawler type Non-marking rubber track|Non-marking rubber track
Gross weight 3000kg|6614 lb
Ground Pressure When Driving 29.6 kN/m²|29.6 kN/m²
Ground Pressure When Working (Standard) 1.98 kN/m²|1.98 kN/m²
Ground Pressure When Working (Narrow) 2.26 kN/m²|2.26 kN/m²
Pressure on Single Outrigger When Working 13.8KN|13.8KN
