Zoomlion ZX27AE

  • 27m|88ft 7in
    Work Height
  • 25m|82ft
    Platform Height
  • 14.2m|49ft 7in
    Horizontal Outreach
View Complete Details
  • Overview
  • Specifications
Overview

Lithium-powered spider lift is equiped with self-leveling outriggers and crawler rubber track, allowing it boosting productivity through rough terrain and on steep slopes.

CE Certified







0.89m ultra-narrow width, quick-change work platform, easy access to compact spaces

Pure lithium-ion battery power features environmental protection and quiet operation

Accurate and efficient permanent magnet synchronous motor provides strong power and stable control

Non-marking rubber track suitable for all terrains

Central layout, great structural rigidity, and small boom deflection

Bus hydraulic valve control system offers stable and reliable movement

Advanced energy management system supports synchronous power supply from external power supply, providing long-lasting battery life


Specifications
Work Height 27m|88ft 7in
Platform Height 25m|82ft
Horizontal Outreach 14.2m|49ft 7in
Up and Over Height 12.45m|40ft 10in
Below Ground Reach 5.8m|19ft

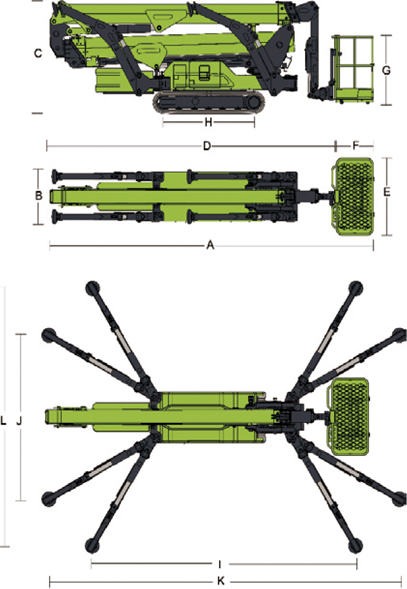

A - Stowed Length (w/ platform) 6.15m|20ft 2in
D - Stowed Length (w/o platform) 5.7m|18ft 8in
B - Stowed Width 0.89m|2ft 11in
C - Stowed Height 2.05m|6ft 9in
E - Platform Length 1.4m|4ft 7in
F - Platform Width 0.7m|2ft 4in
G - Platform Height 1.25m|4ft 1in
H - Crawler Size (Length×Width) 1.52m×0.25m|4ft 11in×10in
I - Max Length w/ Outrigger Extending (Standard) 4.95m|16ft 3in
L - Max Width w/ Outrigger Extending (Standard) 4.48m|14ft 8in
K - Max Length w/ Outrigger Extending (Narrow) 6.45m|21ft 2in
J - Max Width w/ Outrigger Extending (Narrow) 2.88m|9ft 5in
Outrigger Pad Size (Diameter) 0.26m|10ft
Approach Angle 15°|15°
Depature Angle 24°|24°

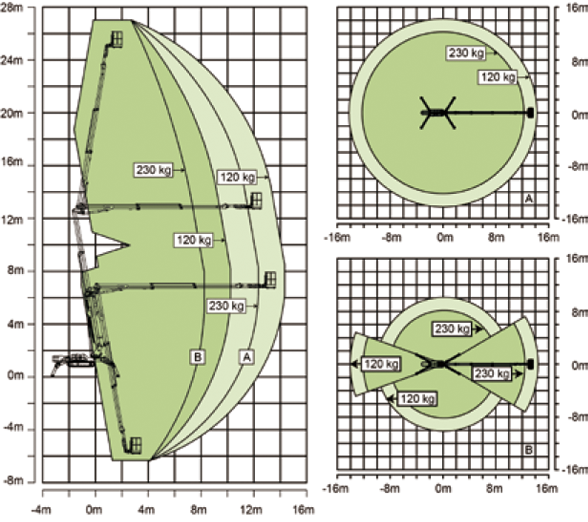

Platform Capacity 230kg(restricted)120kg(unrestricted)|510lb (restricted)265lb (unrestricted)
Drive Speed 2km/h|1.25mph
Gradeability 16.7°/30%|16.7°/30%
Allowable Tilting Angle When Driving 10°/17%|10°/17%
Turntable Swing 400° non-continuous|400° non-continuous
Platform Rotation ±90°|±90°
H-Tail Swing 0m|0m
Max Leveling Angle 16°|16°
Max Wind Speed 12.5m/s|28 mph
Battery 315Ah 48V|315Ah 48V
Charger 48V/60A|48V/60A
Drive Motor Permanent magnetsynchronous motor 48V|Permanent magnetsynchronous motor 48V
Lift Motor Permanent magnetsynchronous motor 48V|Permanent magnetsynchronous motor 48V
Auxiliary Power Electric pump|Electric pump
Hydraulic Tank Capacity 50L|13.2 us gal
Crawler type Non-marking rubber track|Non-marking rubber track
Gross weight 4650kg|10251 lb
Ground Pressure When Driving 33.68kN/m²|33.68kN/m²
Ground Pressure When Working (Standard) 2.05kN/m²|2.05kN/m²
Ground Pressure When Working (Narrow) 2.45kN/m²|2.45kN/m²
Pressure on Single Outrigger When Working 31.89KN|31.89KN
