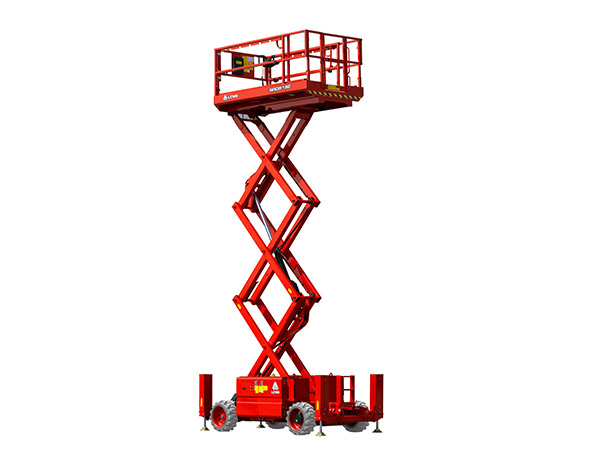

LGMG SR0818E(SR2669E)
  • LGMG SR0818E(SR2669E)
Rough Terrain Scissor Lift

LGMG SR0818E(SR2669E)

  • 9.7m(31'10'')
    Work Height Max.
  • 680kg(1499lbs)
    Platform Capacity
  • 1.79m(5'10'')
    Machine Width
View Complete Details
  • Overview
  • Specifications
Overview

LGMG SR18E Series rough terrain scissor lifts deliver a large platform, high capacity and environ mentally friendly solutions for both indoor and outdoor applications. A compact design, battery powered together with oscillating axels provide flexibility for the machine to work on both firm level and rough terrain environments.



l The large platform with high capacity maximizes productivity.

l Battery powered, zero emission and quiet drive mean this machine is environmentally friendly.

l Equipped with oscillating axles that provide excellent performance in soft and rough terrain conditions.

l Optional hydraulic outriggers deliver a better solution on uneven ground.

l Intelligent self-diagnostic system for quick troubleshooting.


Standard features

Proportional control

Foldable guardrail

Emergency descent

Manual brake release

Oscillating axle

Self-lock entry gate

All motions alarm

Emergency stop button

Tilt alarm with lift cut-out

Overload sensing system

Intelligent diagnostic system

Descent alarm with flashing beacon

Foam-filled non-marking tires



Options

AC power to platform

Auto-leveling outriggers

Telematics

Solid tires

Solid non-marking tires

Foam-filled tires

Biodegradable hydraulic oil


Specifications
MODELSSR0818ESR2669D
MeasurementsMetricImperial
Working Height Max. 9.7m31'10''
A-Platform Height-Raised7.7m25'3''
B-Platform Height-Stowed  1.41m4'8''
C-Platform Length  2.79m9'2''
D-Platform Width  1.6m5'3''
E-Overall Length3.76m12'4''
F-Overall Width1.79m5'10''
G-Overall Height-Rails Up2.58m8'6''
Overall Height-Rails Down1.89m6'2''
H-Extension Deck1.52m5'
I-Wheelbase2.29m7'6''
Ground Clearance-Center0.23m9''
PRODUCTIVITY
Max. Platform Occupancy                4 (in) / 4 (out)
Platform Capacity680kg1499 lbs
Platform Capacity-Extension140kg310 lbs
Drive Height                  Full Height
Gradeability-Stowed40%40%
Min. Turning Radius4.75m15'7''
Raise/Lower Speed35/30s35/30s
Brakes              Rear-wheel brake
Drive Mode                         4x2
Tires Type            Foam-filled Non-marking
Tires Size663x283mm26''x11''
Ground Pressure492.07 kPa71.4 psi
POWER
Power Source                48V DC 315Ah,FLA
HYDUALIC SYSTEM
Hydraulic Oil Capacity50L 13.21gal
WEIGHT
Machine Weight(CE/ANSI) 4190kg9237 lbs
