LGMG SR1018E(SR3369E)
  • LGMG SR1018E(SR3369E)
Rough Terrain Scissor Lift

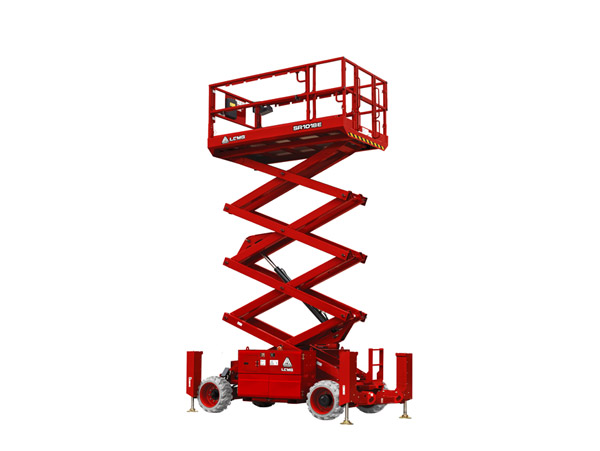

LGMG SR1018E(SR3369E)

  • 11.7m(38.4ft)
    Work Height Max.
  • 454kg(998.8lbs)
    Platform Capacity
  • 1.79m(5.81ft)
    Machine Width
View Complete Details
  • Overview
  • Product Features
  • Specifications
Overview

LGMG SR18E Series rough terrain scissor lifts deliver a large platform, high capacity and environmentally friendly solutions for both indoor and outdoor applications. A compact design, battery powered together with oscillating axels provide flexibility for the machine to work on both firm level and rough terrain environments.


l The large platform with high capacity maximizes productivity.

l Battery powered, zero emission and quiet drive mean this machine is environmentally friendly.

l Equipped with oscillating axles that provide excellent performance in soft and rough terrain conditions.

l Hydraulic outriggers deliver a better solution on uneven ground.

l Intelligent self-diagnostic system for quick troubleshooting.


Standard features

Proportional control

Foldable guardrail

Emergency descent

Manual brake release

Self-lock entry gate

Descent alarm with flashing beacon

Tilt alarm with lift cut-out

Overload sensing system

All motions alarm

Oscillating axle

Intelligent diagnostic system

Auto-leveling outriggers

Foam-filled non-marking tires

Emergency stop device


Options

AC power to platform

Telematics

Biodegradable hydraulic oil

Solid tires

Solid non-marking tires

Foam-filled tires

Product Features

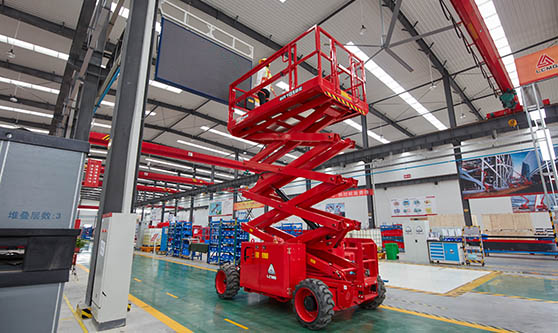

LGMG SR1018E(SR3369E)

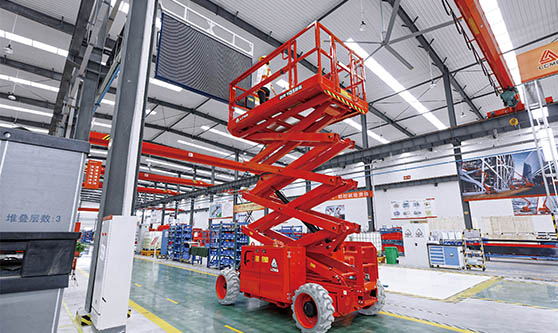

LGMG SR1018E(SR3369E)
Specifications
ModelsSR1018ESR3369E
Measurements
Work Height Max.11.7m38'5''
A-Platform Height-Raised9.7m31'10''
B-Platform Height-Stowed1.41m4'8''
C-Platform Length2.79m9'2''
D-Platform Width1.6m5'3''
E-Overall Length3.76m12'4''
F-Overall Width1.79m5'10''
G-Overall Height-Guardrails Up2.55m8'4''
Overall Height-Guardrails Down1.89m6'2''
Extension Deck1.52m5'
H-Wheelbase2.29m7'6''
Ground Clearance-Center0.23m9''
Productivity
Max. Platform Occupants (In/out)                   4 (in) /2 (out)
Platform Capacity454kg1000 lbs
Platform Capacity-Extension Deck140kg310 lbs
Drive HeightFull Height
Gradeability-Stowed35%
Turning Radius-Outside4.75m15'7''
Raise/Lower Speed39/46s
BrakesRear-wheel Brake
Drive Mode4×2
TIres TypeFoam-filled non-marking
TIres Size663×283mm26''×11''
Ground Pressure, Tyres526.37 kPa76.3 psi
Power
Power Source 48V DC  315Ah, FLA
Hydraulic System
Hydraulic Oil Capacity70L18.5gal
Weight
Machine Weight (CE/ANSI)4350kg9570 lbs
