Rough Terrain Scissor Lift

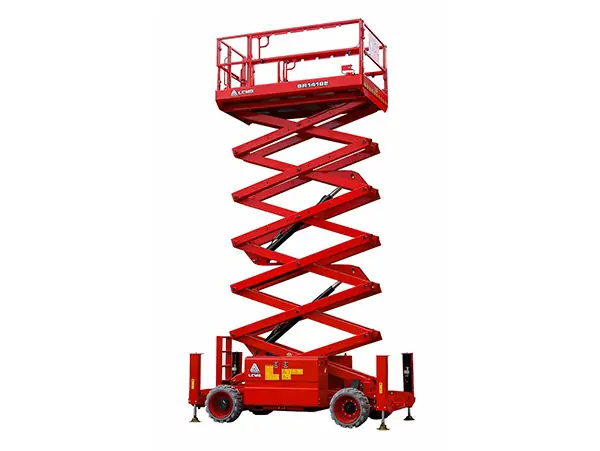

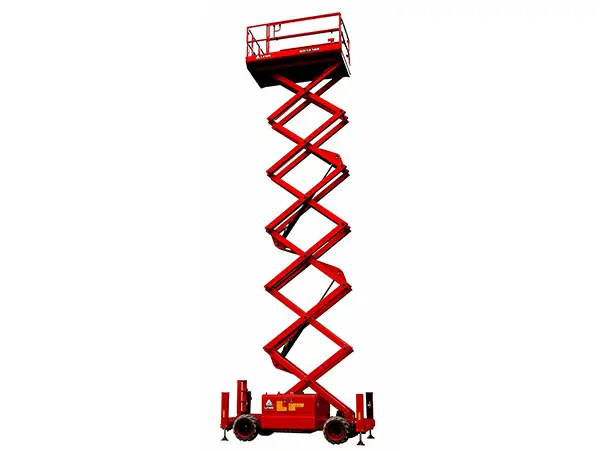

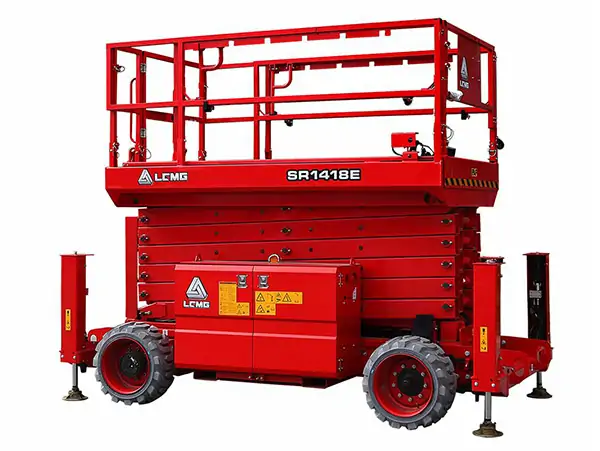

LGMG SR1418E(SR4669E)

15.8m(51'10'')

Work Height Max.
365kg(805lbs)

Platform Capacity
1.84m(6')

Machine Width

View Complete Details

Overview
Specifications

Overview

LGMG SR18E Series rough terrain scissor lifts deliver a large platform, high capacity and environ mentally friendly solutions for both indoor and outdoor applications. A compact design, battery powered together with oscillating axels provide flexibility for the machine to work on both the firm level and rough terrain environments.

l The large platform with high capacity maximizes productivity.

l Battery powered, zero emission and quiet drive mean this machine is environmentally friendly.

l Equipped with oscillating axles that provide excellent performance in soft and rough terrain conditions.

l Hydraulic outriggers deliver a better solution on uneven ground.

l Intelligent self-diagnostic system for quick troubleshooting.

Standard features

Proportional control

Foldable guardrails

Emergency stop device

Manual brake release

Emergency descent

Self-lock entry gate

Oscillating axle

Descent alarm with flashing beacon

Tilt alarm with lift cut-out

Intelligent diagnostic system

All motions alarm

Overload sensing system

Auto-leveling outriggers

Solid non-marking tires

Optional

AC power to platform

Solid tires

Foam-filled tires

Foam-filled non-marking tires

Telematics

Biodegradable hydraulic oil

Specifications

Models	SR1418E	SR4669E
Measurements	Metric	Imperial
Work Height Max.	15.8m	51'10''
A-Platform Height- Raised	13.8m	45'3''
B-Platform Length	2.79m	9'2''
C-Platform Width	1.6m	5'3''
D-Overall Length (with ladder)	3.73m	12'3''
E-Overall Width	1.84m	6'
F-Overall Height - Rails up	2.9m	9'6''
Overall Height - Rails down	2.24m	7'4''
G- Extension Deck	1.5m	4'11''
H- Wheelbase	2.29m	8'
Ground Clearance-Cente	0.23m	9''
Productivity
Max. Platform Occupant	2(in) / 2(out)
Platform Capacity	365kg	805 lbs
Platform Capacity - Extension	140kg	309 lbs
Drive Height	Full Height
Gradeability - Stowed	35%	35%
Turning Radius - Outside	4.75m	15'7''
Raise/Lower Speed	80s/60s
Brakes	Rear-wheel Brake
Drive Mode	4x2
Tires Type	Solid Non-marking
Tires Size	663x283mm	26''x11''
Ground Pressure, Tyres	651.96 kPa	94.6 psi
Power
Power Source	48V DC 390Ah, FLA
Hydraulic System
Hydraulic Oil Volume	50L	13.2 gal
Weight
Machine Weight (CE/ANSI)	6260kg	13800 lbs
