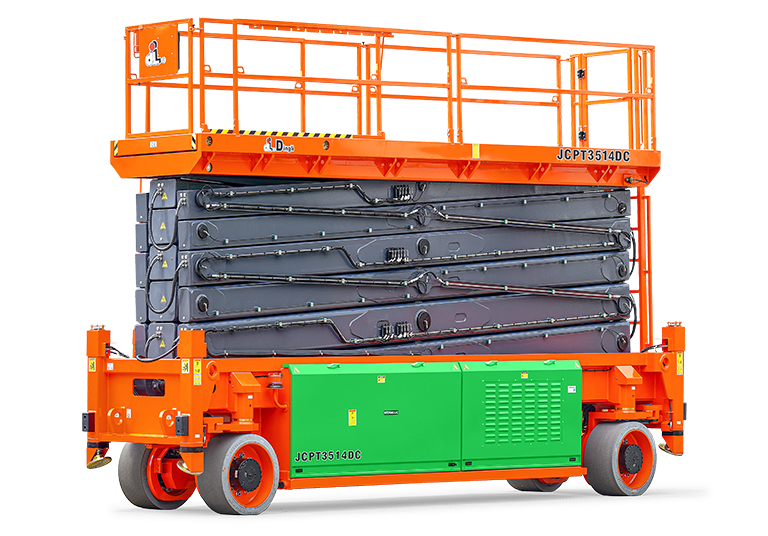

Dingli JCPT3514DC
  • Dingli JCPT3514DC
Scissor Lift

Dingli JCPT3514DC

  • 35.00m/114ft 10in
    Max. Working Height
  • 33.00m/108ft 3in
    Max. Platform Height
  • 7.15m/23ft 5in
    Overall Length(With Outriggers)
View Complete Details
  • Overview
  • Specifications
Overview

● Electric model, equipped with 80V/620Ah high-capacity battery pack, long endurance;

● No noise, zero emission, suitable for environmentally demanding working conditions;

● Driveable at full height with large load of 750kg;

● Machine overall width of 1.40m, good passability.


Specifications
Max. Working Height 35.00m/114ft 10in
Max. Platform Height 33.00m/108ft 3in
Overall Length(With Outriggers) 7.15m/23ft 5in
Overall Width 1.40m/4ft 7in
Overall Height(Rails Up) 4.23m/13ft 10in
Overall Height(Rails Down) 3.36m/11ft
Platform Size(Length×Width) 6.50m×1.20m/21ft 4in×3ft 11in
Platform Extension Size 1.90m/6ft 3in
Ground Clearance(Stowed/Raised) 0.19m/0.02m / 8in/1in
Wheelbase 5.43m/17ft 10in
Turning Radius(Inside/Outside) 3.20m/3.80m / 10ft 6in/12ft 6in
Tyres 28×14×22
S.W.L 750kg/1653lb
S.W.L On Extension 750kg/1653lb
Max. Occupants(Indoor/Outdoor) 2/2
Gradeability 25%
Travel Speed(Stowed) 1.5km/h / 0.93mph
Travel Speed(Raised) 0.1km/h / 0.06mph
Max. Working Slope 1°(0°)
Up/Down Speed 180/180sec
Overall Weight(With Outriggers) 28400kg/62611lb
Hydraulic Tank 280L/73gal
Battery 80V/620Ah
Charger 80V/80A
Driving Motor 4×56VAC/6kW
Lifting Motor 53VAC/28kW
