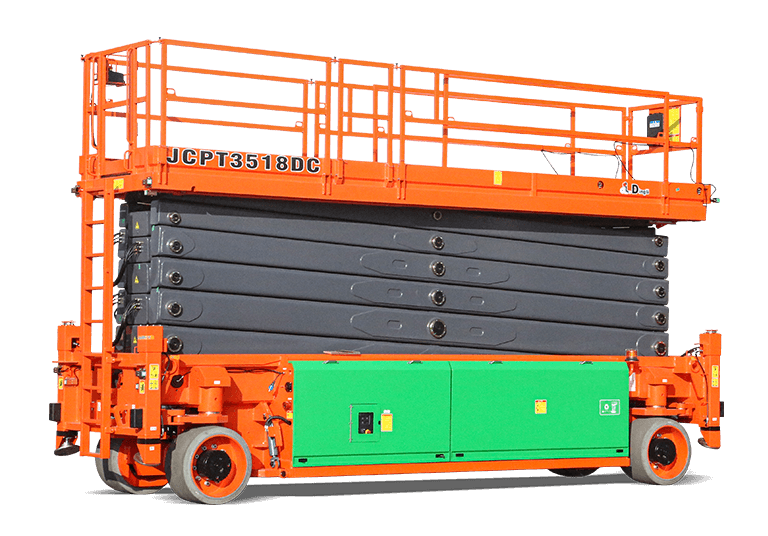

Dingli JCPT3518DC
  • Dingli JCPT3518DC
Scissor Lift

Dingli JCPT3518DC

  • 35.00m/114ft 10in
    Max. Working Height
  • 33.00m/108ft 3in
    Max. Platform Height
  • 6.99m/22ft 11in
    Overall Length(With Outriggers)
View Complete Details
  • Overview
  • Specifications
Overview

● Electric model, equipped with 80V/620Ah high-capacity battery pack, long endurance;

● No noise, zero emission, suitable for environmentally demanding working conditions;

● Driveable at full height with large load of 1000kg;

● Machine overall width of 1.80m, good passability.


Specifications
Max. Working Height 35.00m/114ft 10in
Max. Platform Height 33.00m/108ft 3in
Overall Length(With Outriggers) 6.99m/22ft 11in
Overall Width 1.80m/5ft 11in
Overall Height(Rails Up) 4.15m/13ft 7in
Overall Height(Rails Down) 3.20m/10ft 6in
Platform Size(Length×Width) 6.58m×1.60m/21ft 7in×5ft 3ft
Platform Extension Size 2.50m/8ft 2in
Ground Clearance(Stowed/Raised) 0.20m/0.03m 8in/1in
Wheelbase 5.32m/17ft 5in
Turning Radius(Inside/Outside) 2.90m/3.80m / 9ft 6in/12ft 6in
Tyres 28×16×22
S.W.L 1000kg/2204lb
S.W.L On Extension 1000kg/2204lb
Max. Occupants(Indoor/Outdoor) 4/0
Gradeability 25%
Travel Speed(Stowed) 1.6km/h / 0.99mph
Travel Speed(Raised) 0.1km/h / 0.06mph
Max. Working Slope 1°(0°)
Up/Down Speed 180/240sec
Overall Weight(With Outriggers) 27180kg/59922lb
Hydraulic Tank 280L/73ga
Battery 80V/620Ah
Charger 80V/80A
Driving Motor 4×56VAC/6kW
Lifting Motor 53VAC/28kW
